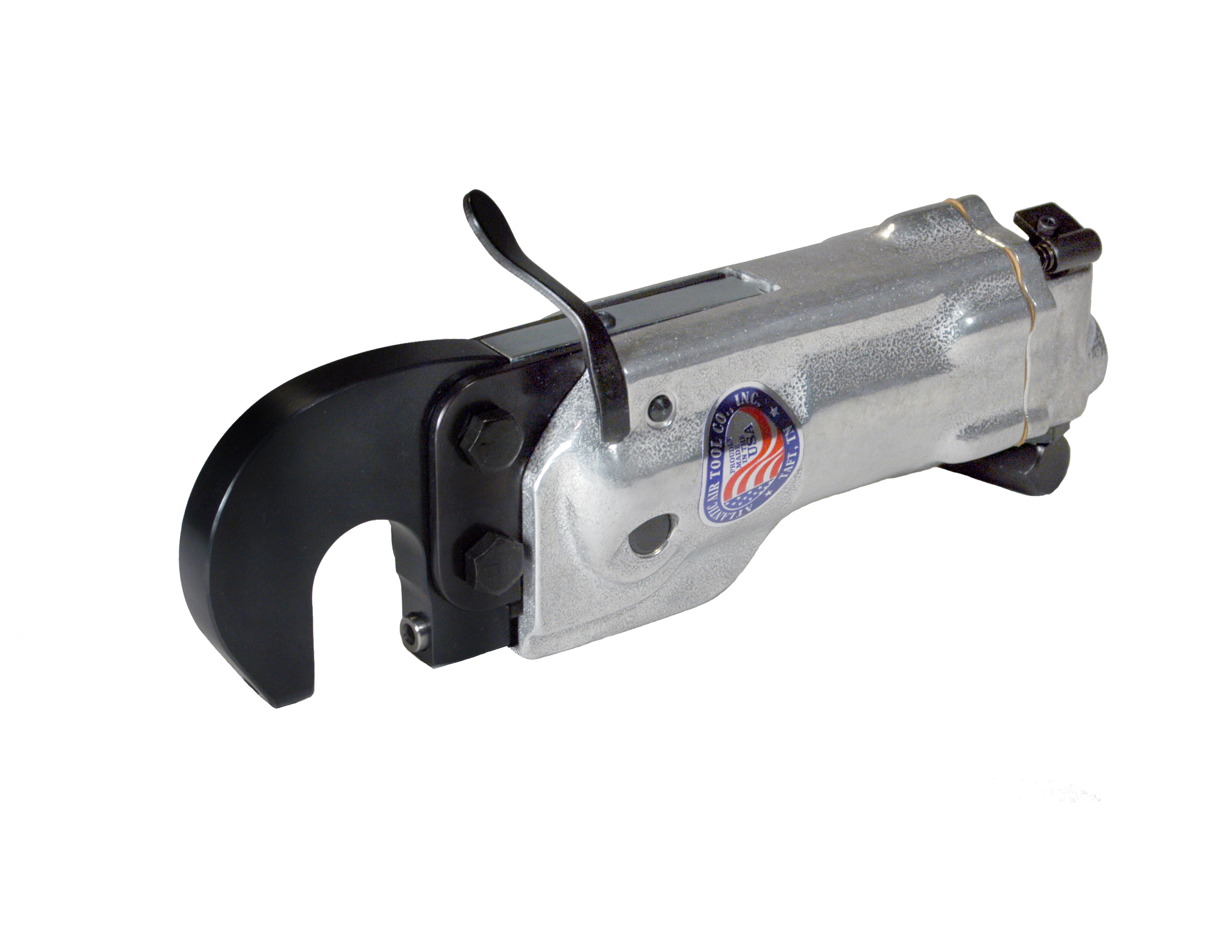

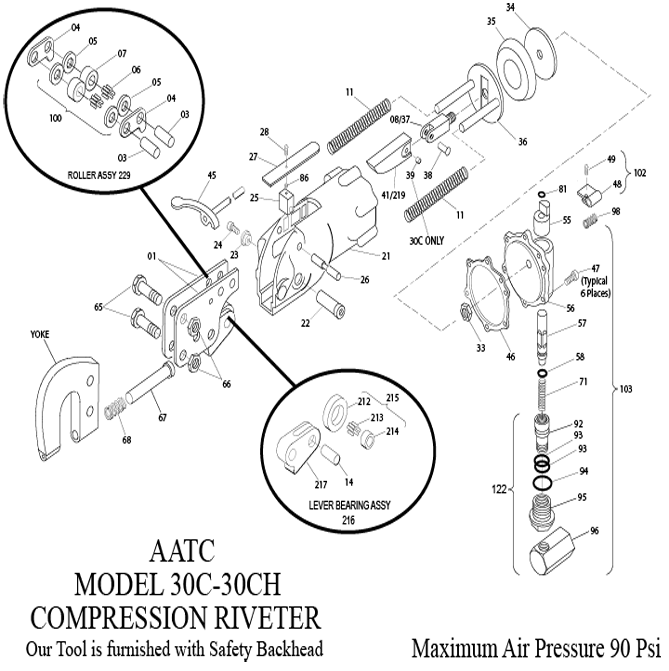

30C-30CH Series
30C-30CH
|
MODEL
|
RIVET
CAPACITY DIAMETER |
STANDARD
YOKE DIMENSIONS |
MAX FORCE with 90 PSI (6.21 BAR) AIR PRESSURE PSI (KN) |
MOVING SET Holder |
OVERALL LENGTH | WEIGHT WITH YOKE (LBS) |
|||
|
ALUM
|
STEEL
|
REACH
|
CLOSED HEIGHT
|
MAX
TRAVEL |
STROKE
MAX POWER |
||||
|
30C15
|
1/8
(3.17) |
3/32
(2.36) |
1 1/2
(38.1) |
11/16
(17.45) |
3000
(13.35) |
9/16
(14.27) |
1/16
(1.57) |
10 1/4
(260.35) |
4 1/2 |
| 30C20 | 1/8 (3.17) |
3/32 (2.36) |
2 (50.8) |
11/16 (17.45) |
3000 (13.35) |
9/16 (14.27) |
1/16 (1.57) |
10 3/4 (273.05) |
5 (2.3) |
| 30C25 | 1/8 (3.17) |
3/32 (2.36) |
2.5 (63.5) |
11/16 (17.45) |
3000 (13.35) |
9/16 (14.27) |
1/16 (1.57) |
11 (279.4) |
5 1/2 (2.49) |
| 30C30 | 1/8 (3.17) |
3/32 (2.36) |
3 (76.2) |
11/16 (17.45) |
3000 (13.35) |
9/16 (14.27) |
1/16 (1.57) |
11 1/4 (285.75) |
6 (2.72) |
| 30CH15 | 5/32 (4) |
3/32 (2.36) |
1 1/2 (38.1) |
11/16 (17.45) |
3800 (19.90) |
9/16 (14.27) |
1/16 (1.57) |
10 1/4 (260.35) |
4 1/2 (2.04) |
| 30CH20 | 5/32 (4) |
3/32 (2.36) |
2 (50.8) |
11/16 (17.45) |
3800 (19.90) |
9/16 (14.27) |
1/16 (1.57) |
10 3/4 (273.05) |
5 (2.3) |
| 30CH25 | 5/32 (4) |
3/32 (2.36) |
2.5 (63.5) |
11/16 (17.45) |
3800 (19.90) |
9/16 (14.27) |
1/16 (1.57) |
11 (279.4) |
5 1/2 (2.49) |
| 30CH30 | 5/32 (4) |
3/32 (2.36) |
3 (76.2) |
11/16 (17.45) |
3800 (19.90) |
9/16 (14.27) |
1/16 (1.57) |
11 1/4 (285.75) |
6 (2.72) |
*All pressures are load cell tested not calculated.
