Special Yokes & Jaws Warranty

All Special Manufactured Yokes and Alligator Jaws have a 30 Day Warranty under normal use.

Warranty will be null and void if customer requests any unusual change from manufacture of special yokes and jaws.

No warranty if Atlantic Air Tool Special Yoke or Alligator Jaw assembled into a non-Atlantic Air Tool.



1100's

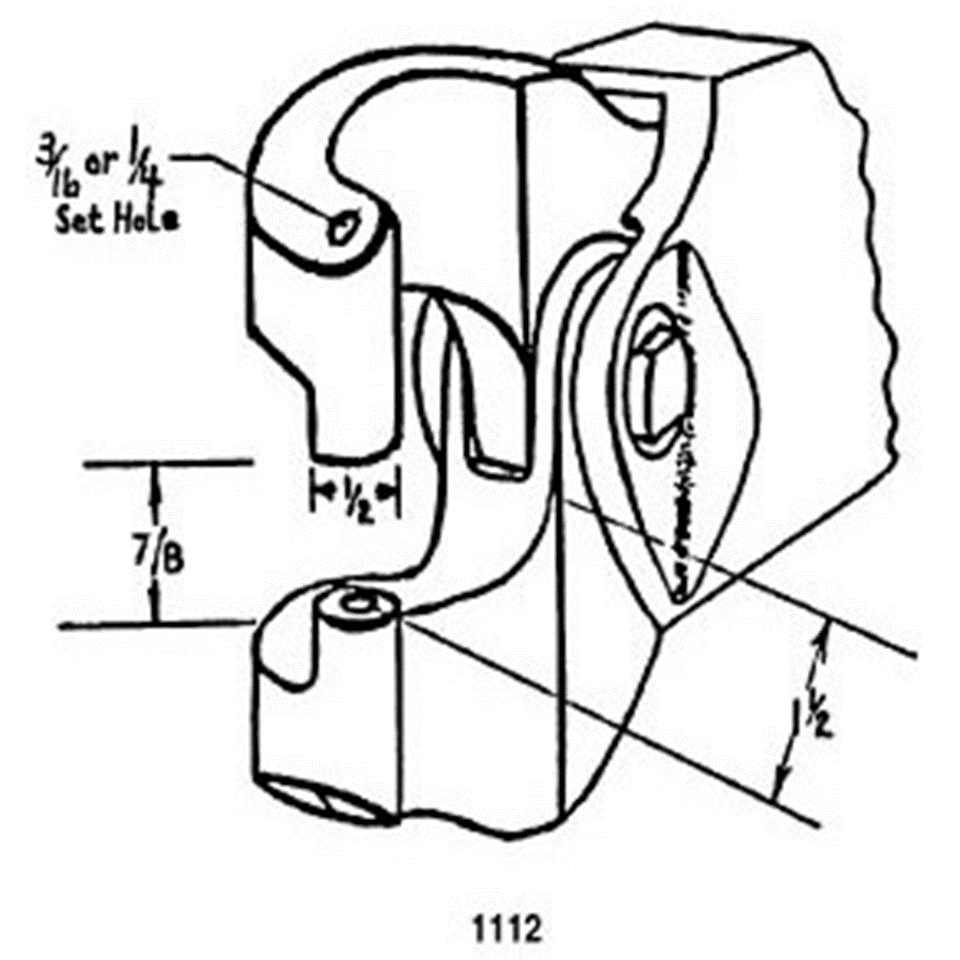

1112



Rated For 30A,60A,90A
Reach 1 1/2"
Gap 7/8"
Gap Behind Nose 2 1/8"
Left Hand

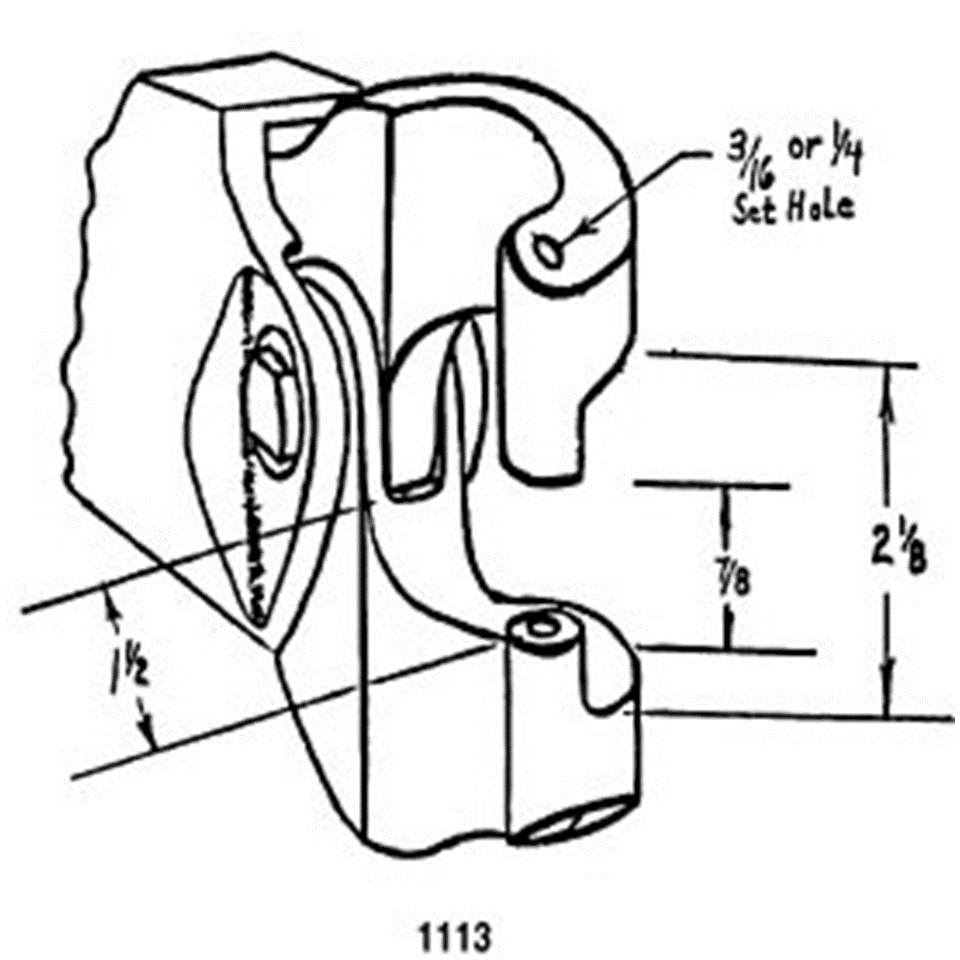

1113



Rated For 30A,60A,90A
Reach 1 1/2"
Gap 7/8"
Gap Behind Nose 2 1/8"
Right Hand

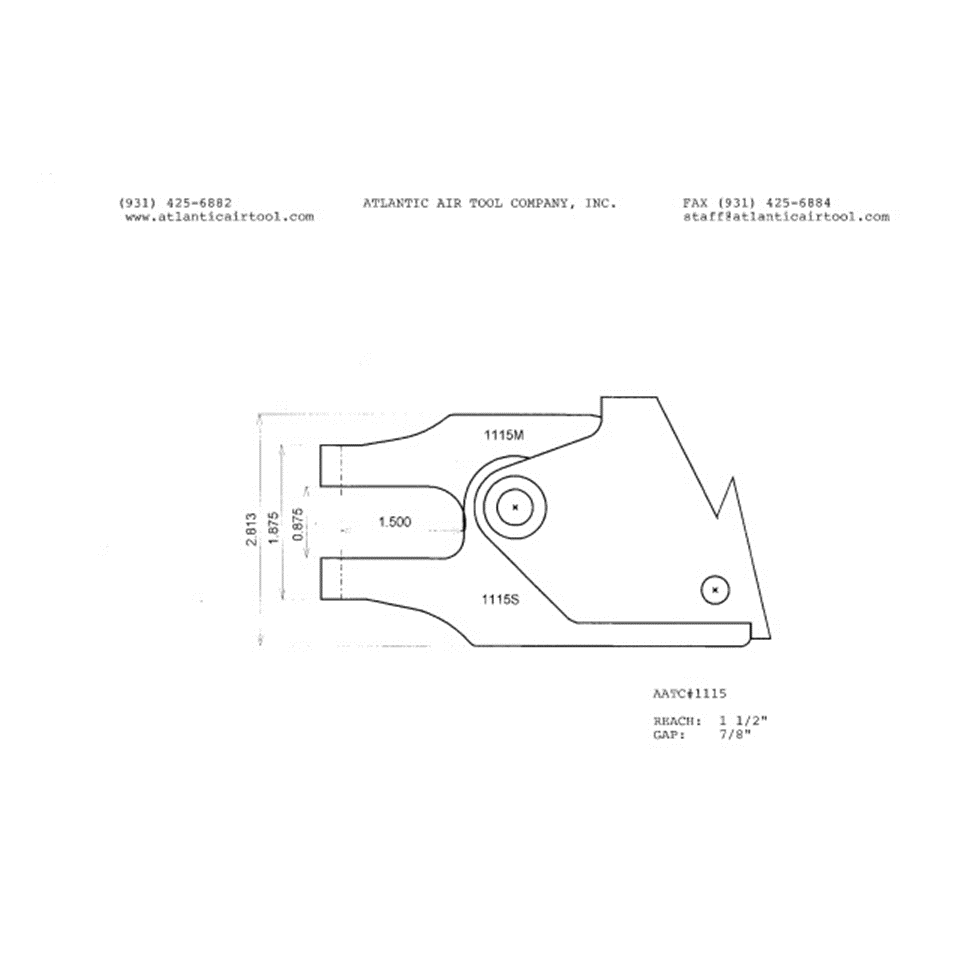

1115



Rated For 30A,60A,90A
Reach 1 1/2"
Gap 7/8"

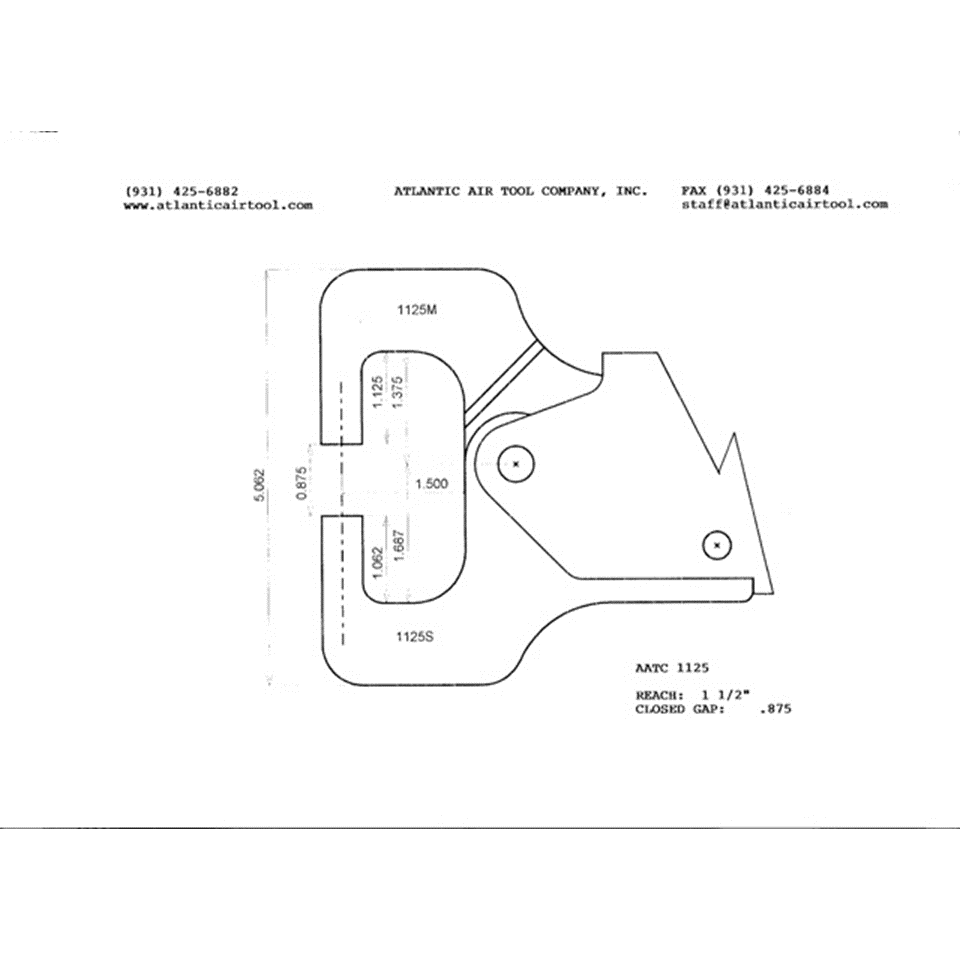

1125



Rated For 30A,60A,90A
Reach 1 1/2"
Gap 7/8"
Gap Behind Nose 3 1/16"

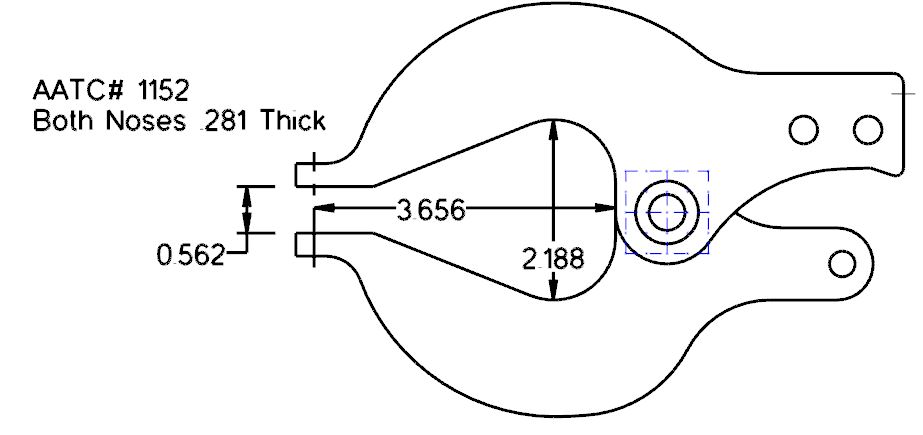

1152



Fits Tool(s) 30A, 60A
Reach 3 1/2"
Gap 7/8"

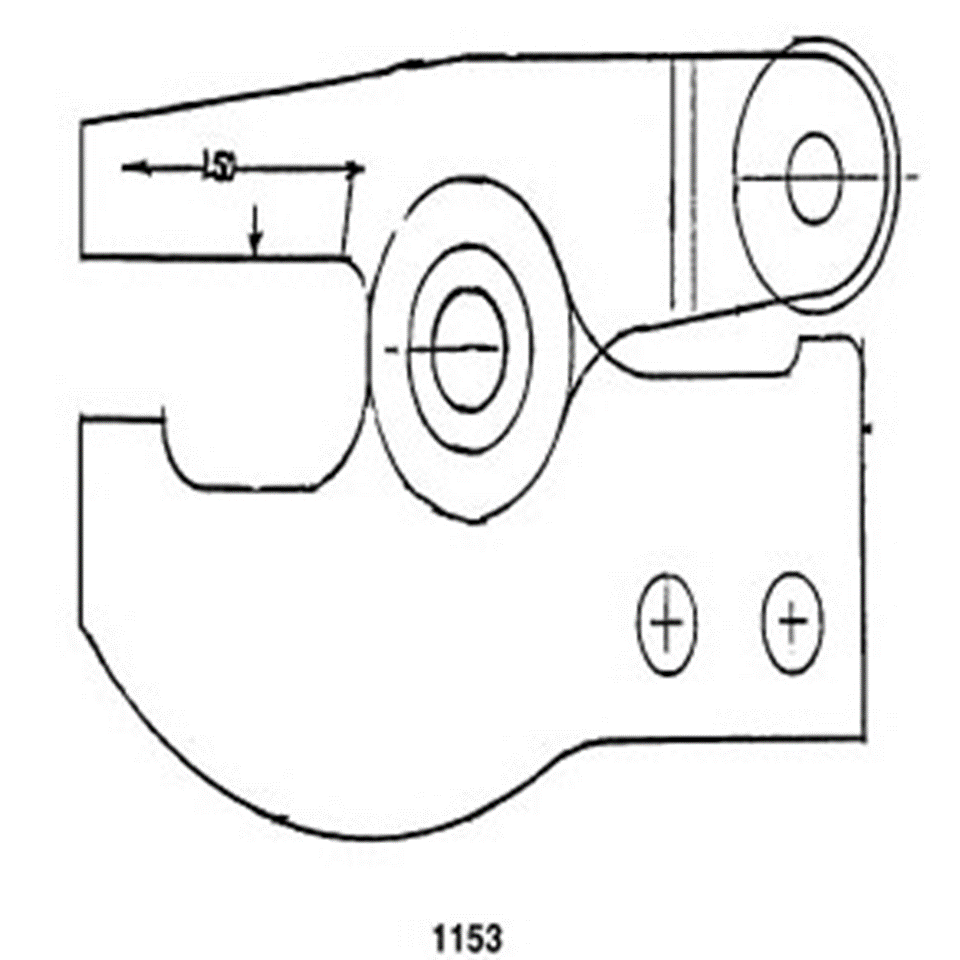

1153



Rated For 30A,60A,90A
Reach 1 1/2"
Gap 19/32"
Gap Behind Nose 27/32"

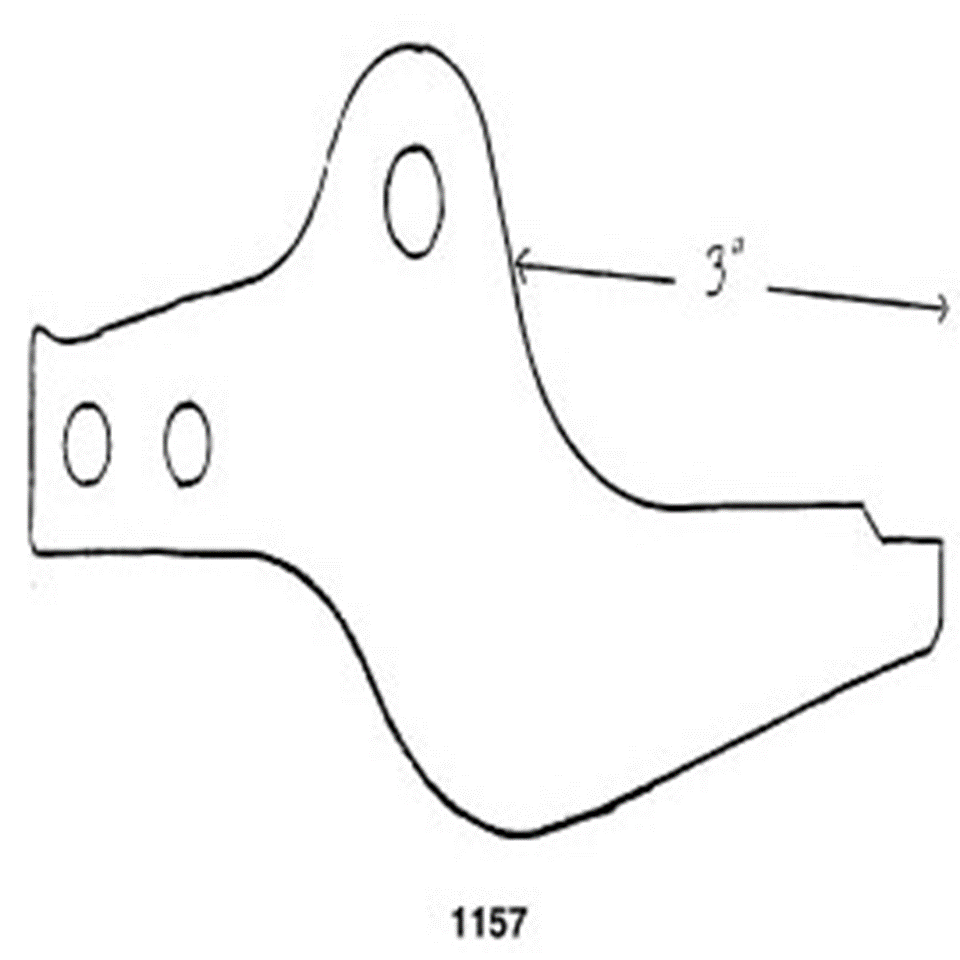

1157S



Rated For 30A,60A,90A
Reach 3"
Gap 1 5/8"
Gap Behind Nose 2 1/8"
Pairs With A30MHD

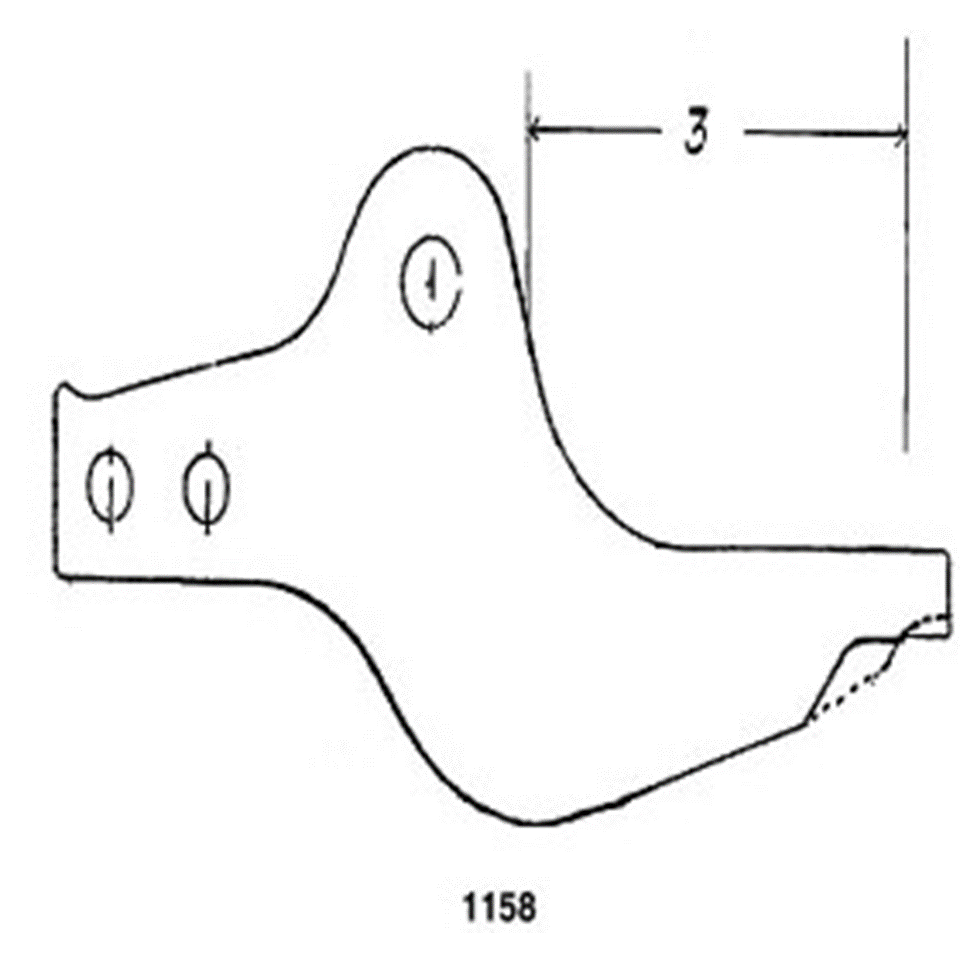

1158S



Rated For 30A, 60A
Reach 3"
Gap 1 1/2"
Gap Behind Nose 2 1/8"
Pairs With A30MHD

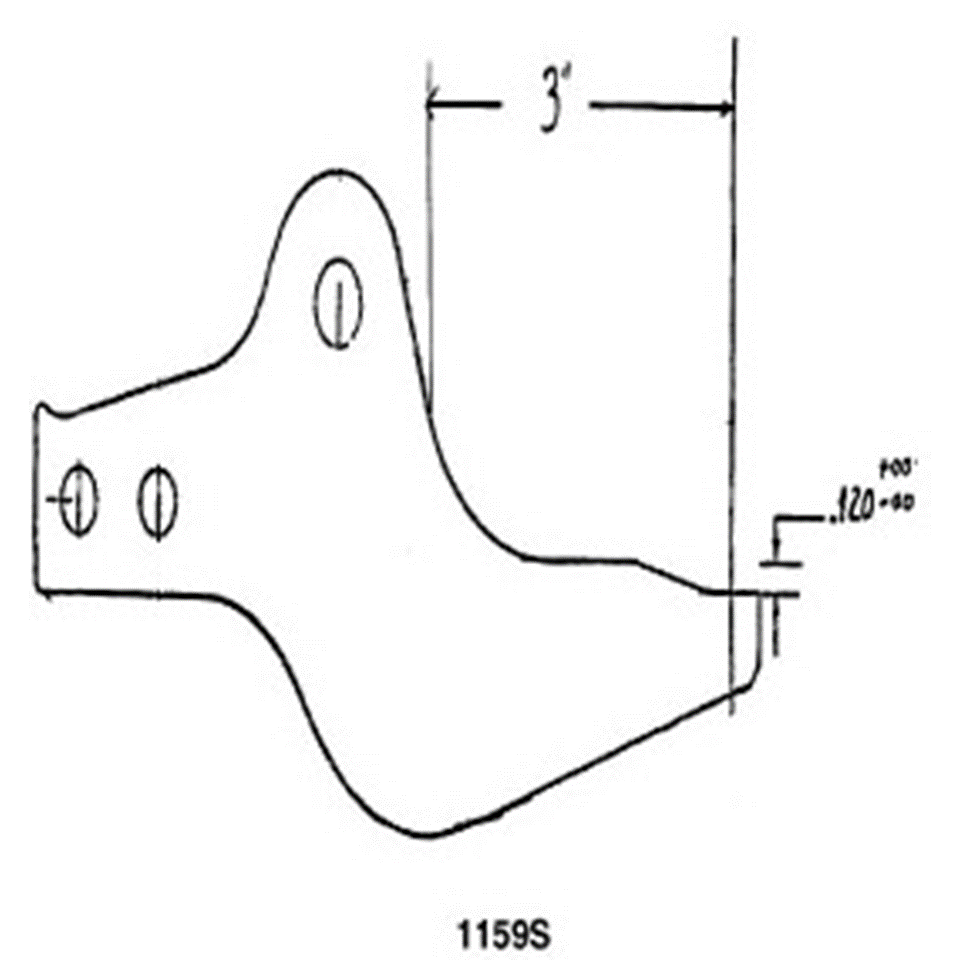

1159S



Rated For 30A, 60A
Reach 3"
Gap 1 5/8"
Gap Behind Nose 2 1/8"
Pairs With A30MHD

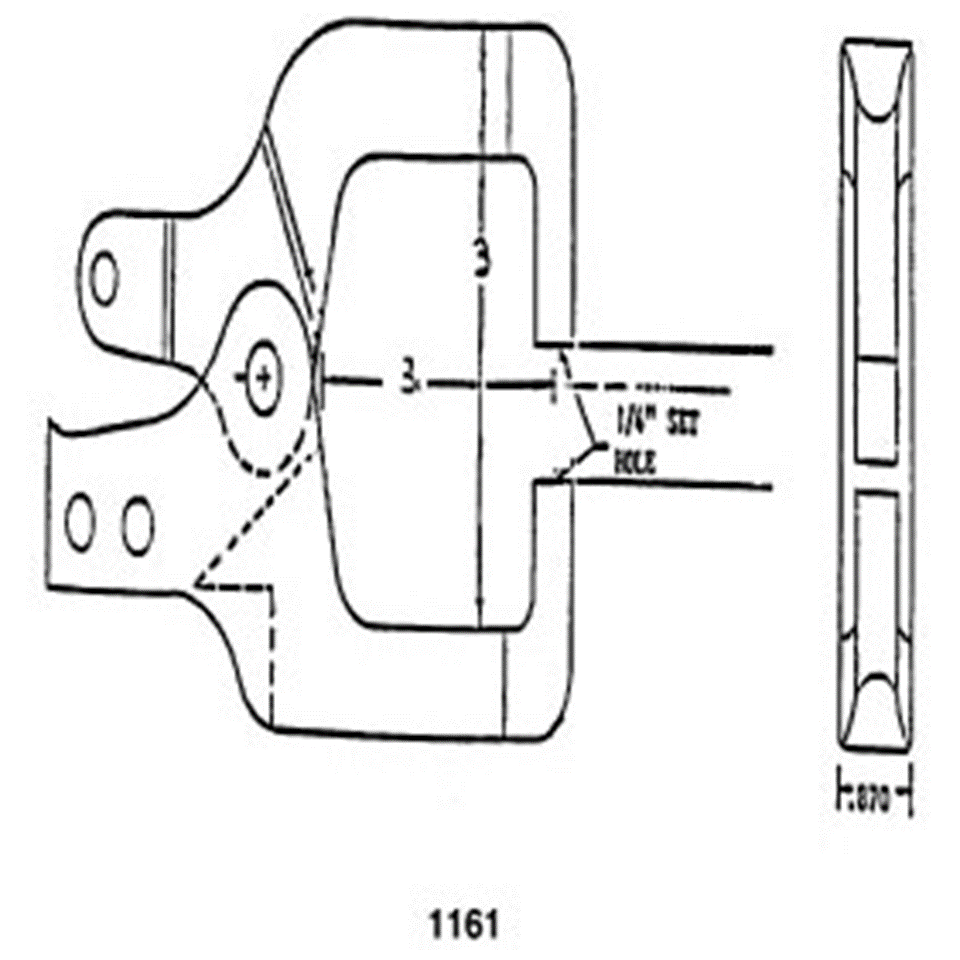

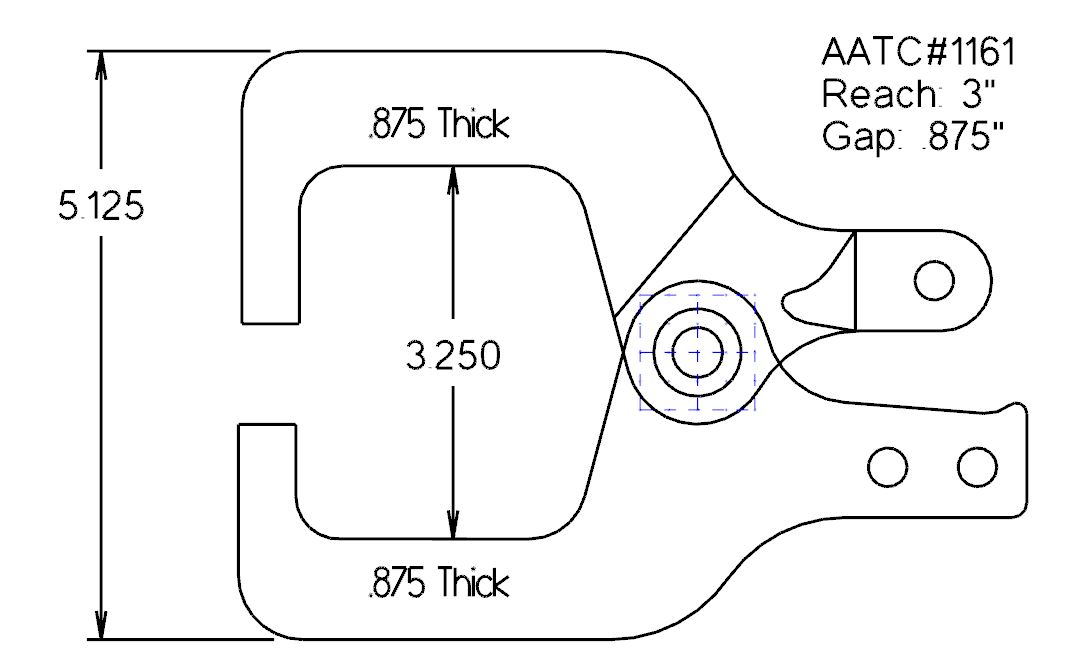

1161



Rated For 30A,60A,90A
Reach 3"
Gap 7/8"
Gap Behind Nose 3"

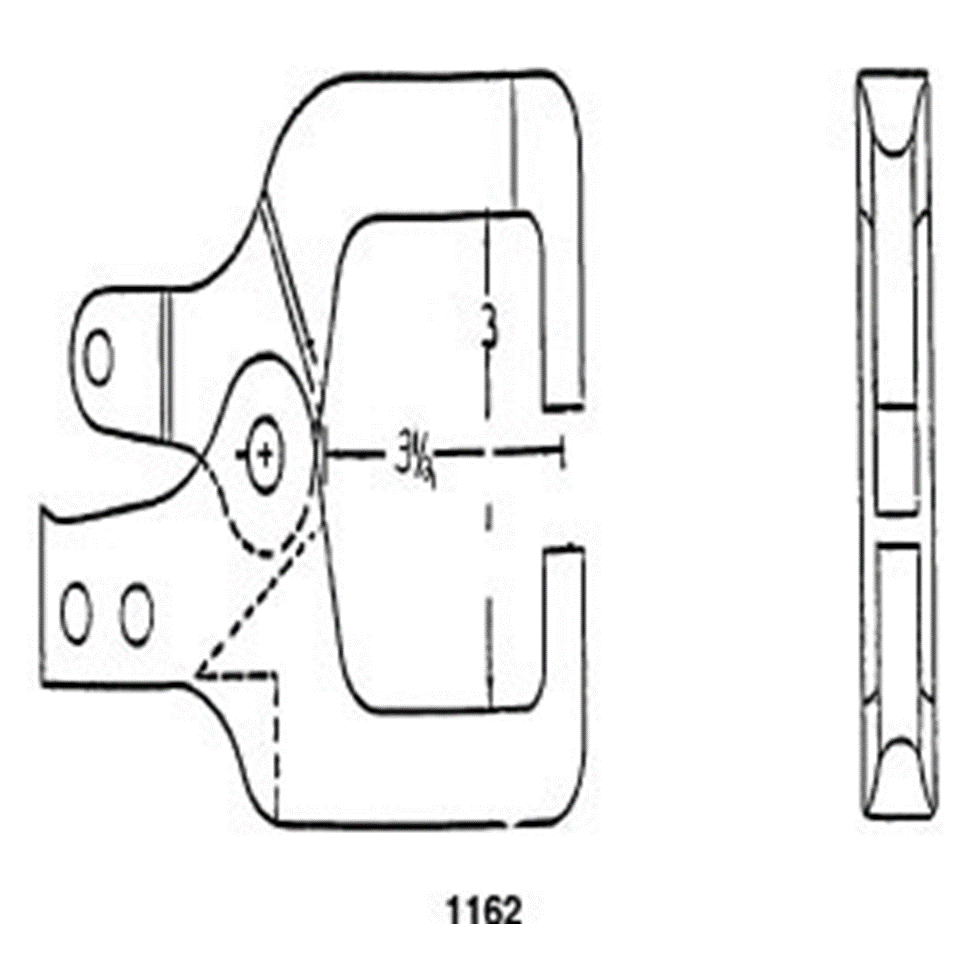

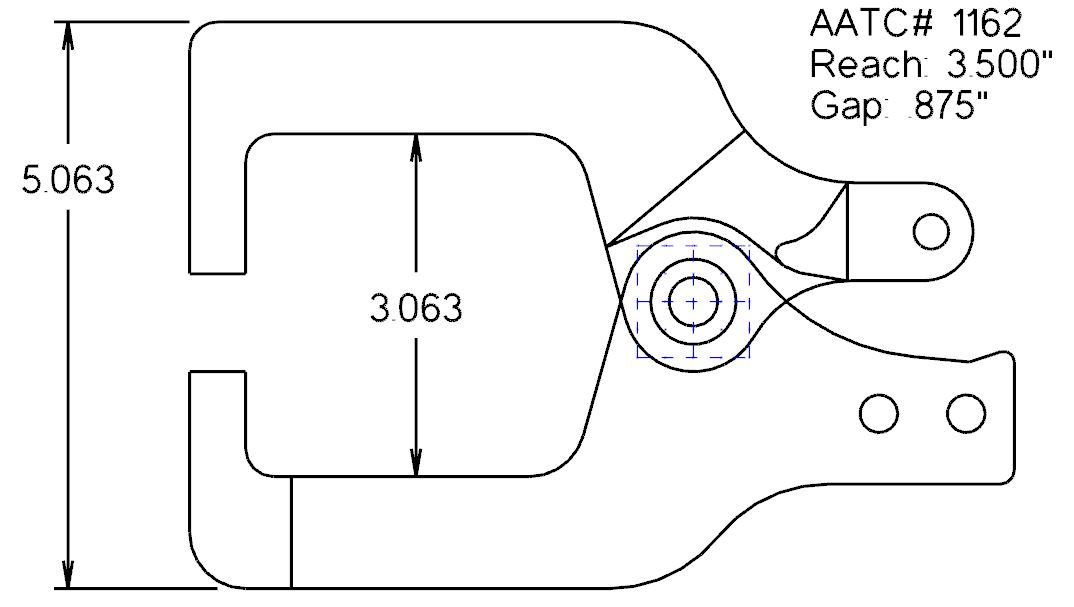

1162



Rated For 30A,60A,90A
Reach 3 1/2"
Gap 7/8"
Gap Behind Nose 3"

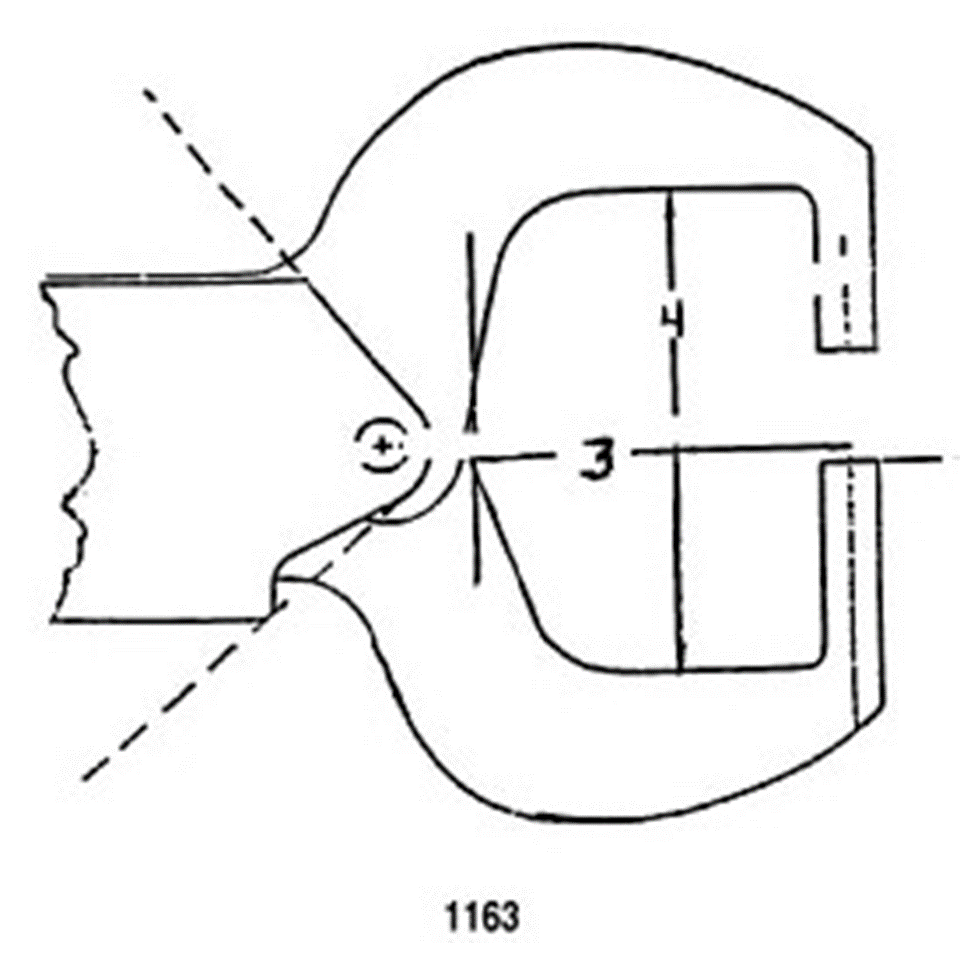

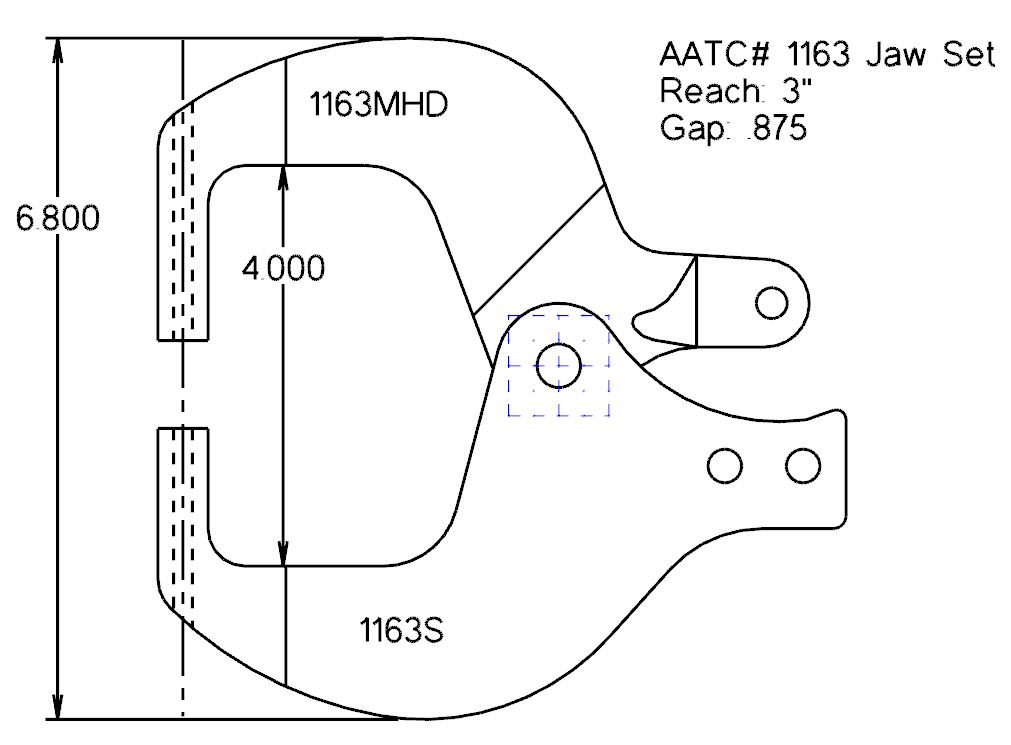

1163



Rated For 30A,60A,90A
Reach 3"
Gap 7/8"
Gap Behind Nose 4"

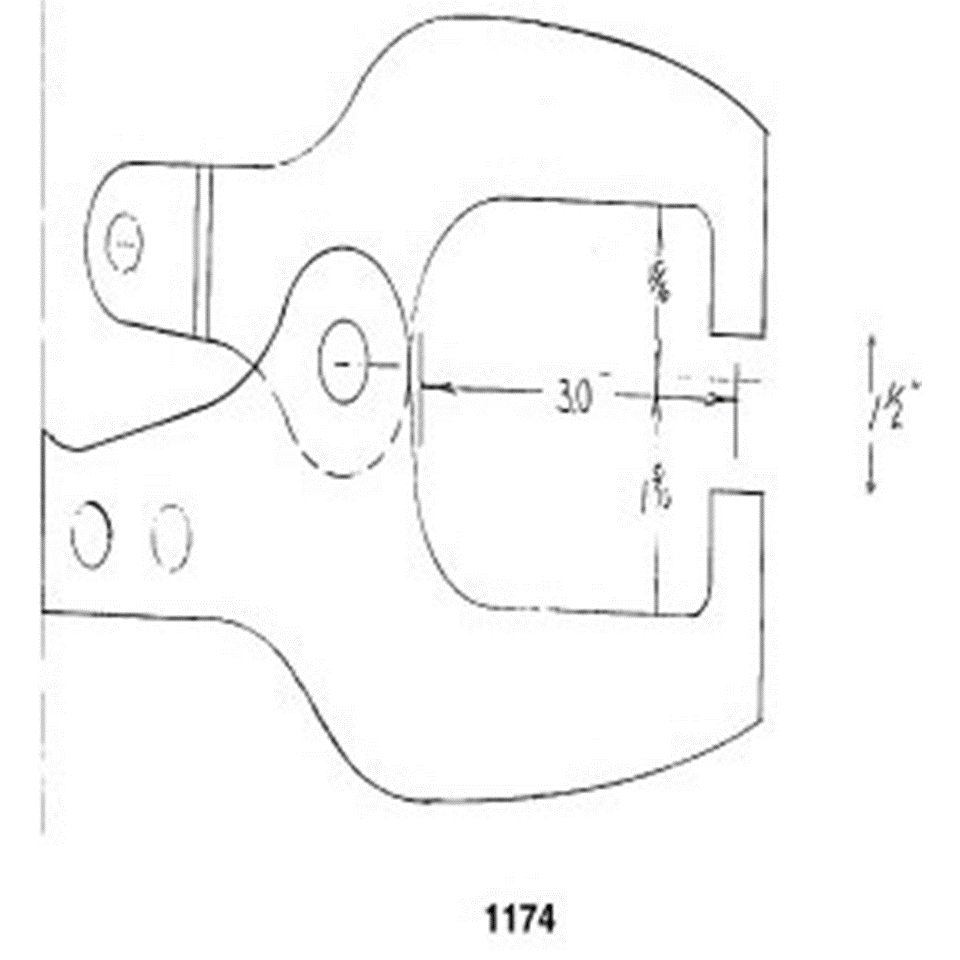

1174



Rated For 30A, 60A
Reach 3"
Gap 1 1/2"
Gap Behind Nose 2 5/8"

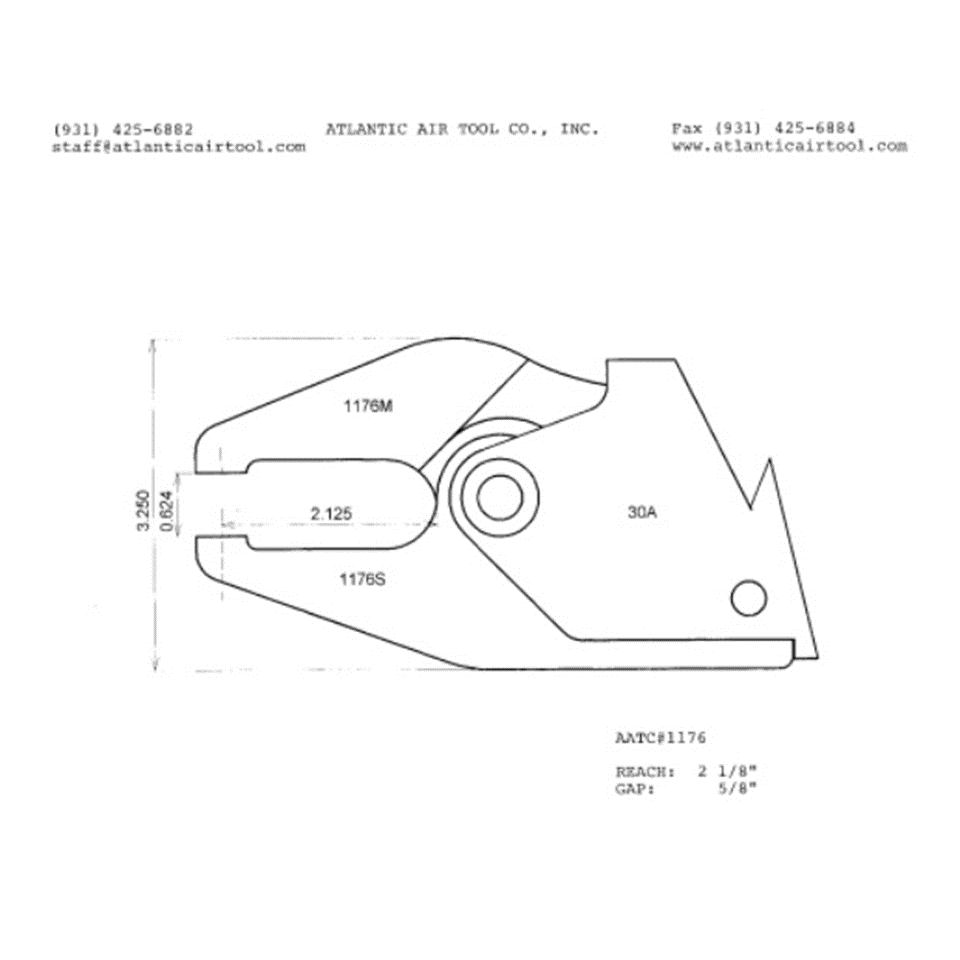

1176



Rated For 30A, 60A
Reach 2 1/8"
Gap 5/8"
Gap Behind Nose 1"

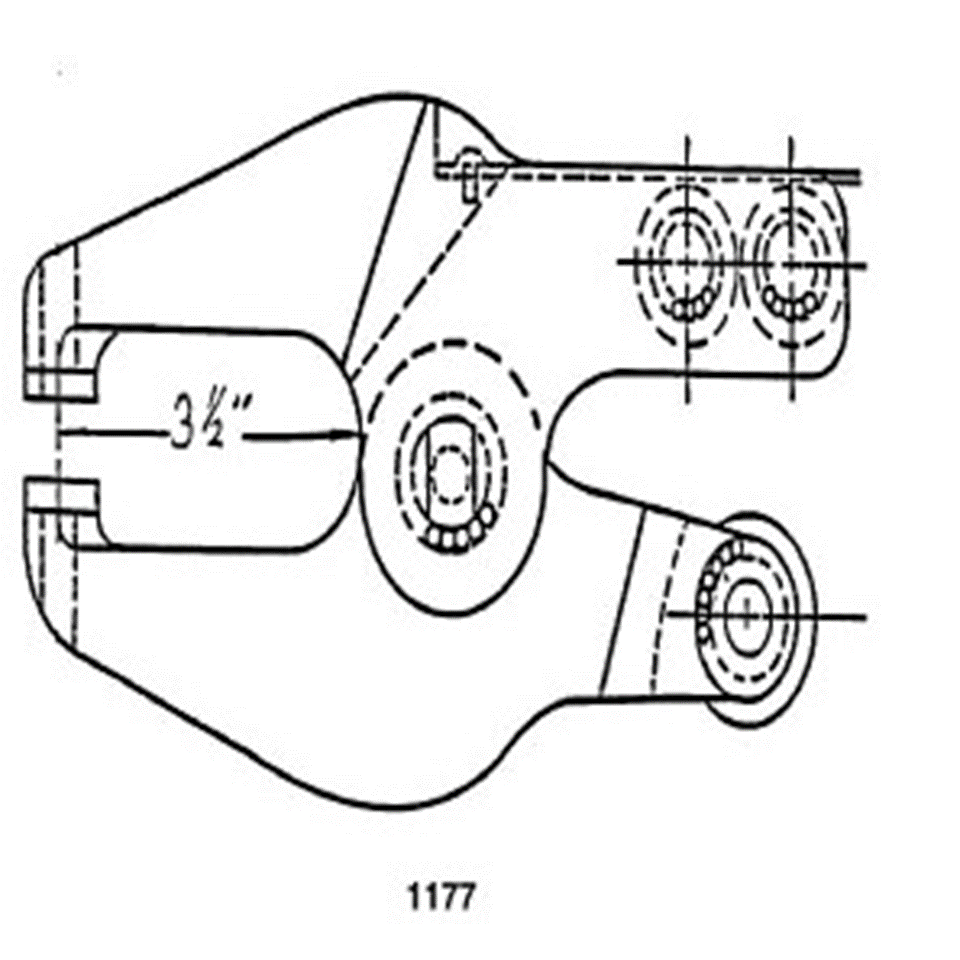

1177



Rated For 30A, 60A
Reach 3 1/2"
Gap 5/8"
Gap Behind Nose 1"

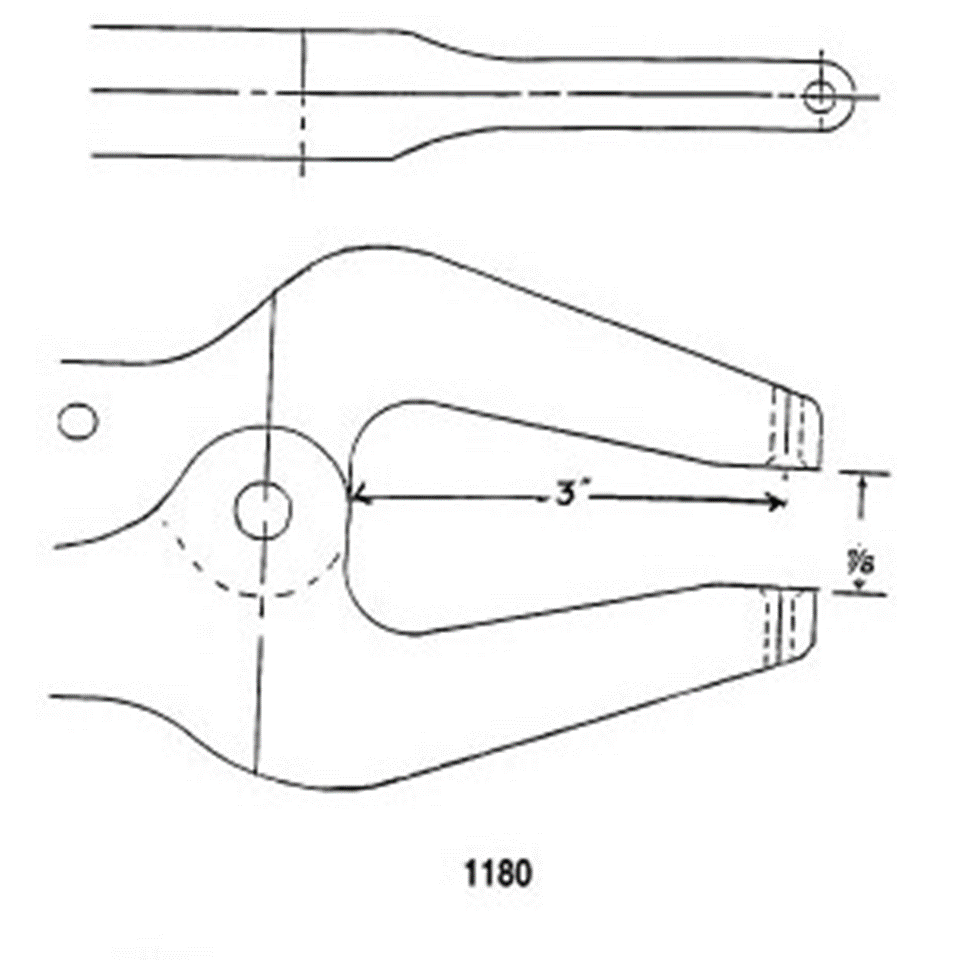

1180



Rated For 30A,60A,90A
Reach 3"
Gap 7/8"
Gap Behind Nose 1 1/2"

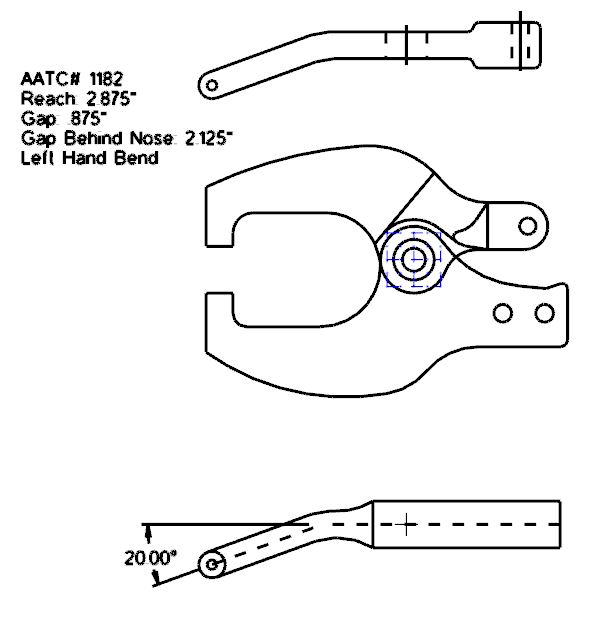

1182



Rated For 30A, 60A
Reach 2 7/8"
Gap 7/8"
Gap Behind Nose 2 1/8"
Left Hand

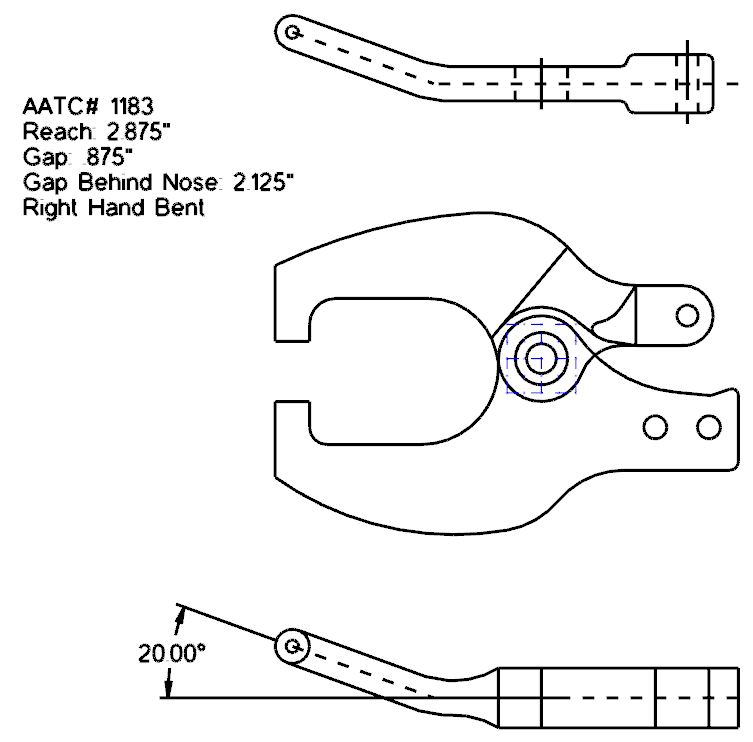

1183



Rated For 30A, 60A
Reach 2 7/8"
Gap 7/8"
Gap Behind Nose 2 /18"
Right Hand

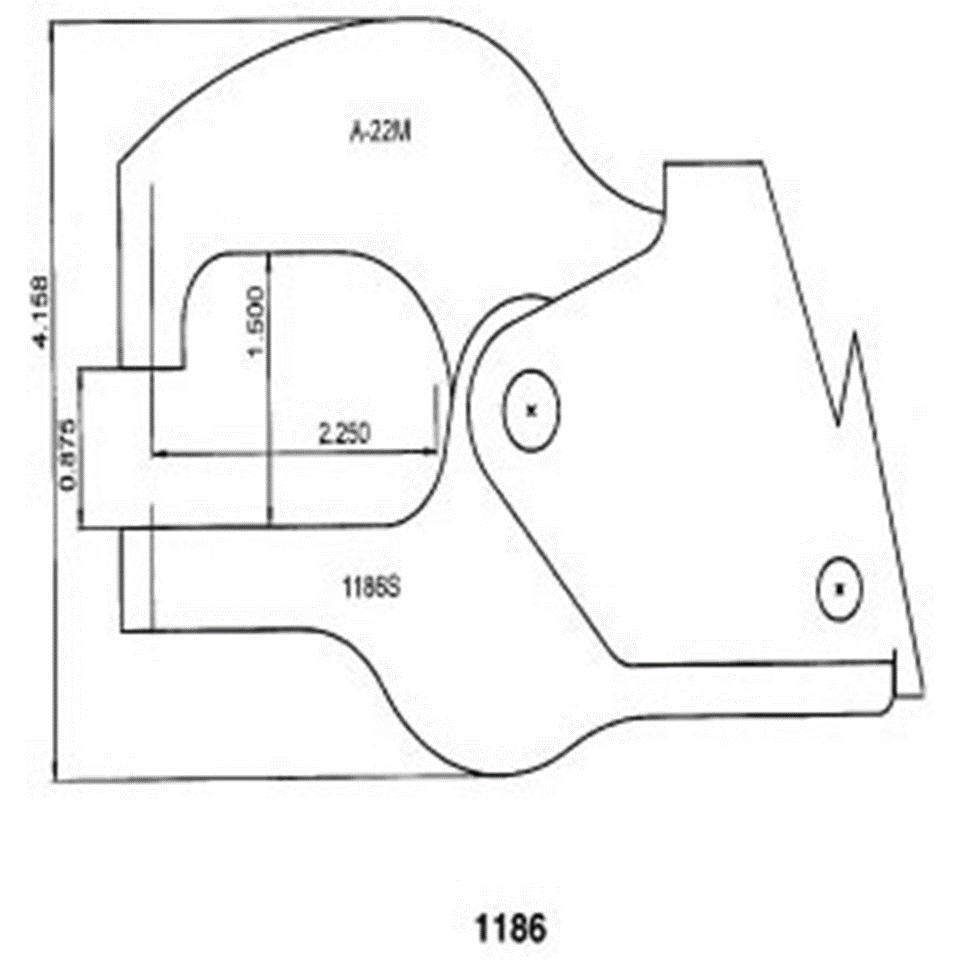

1186S



Rated For 30A,60A90A
Reach 2 1/4"
Gap 7/8"
Gap Behind Nose 1 1/2"
Pairs With A22MHD

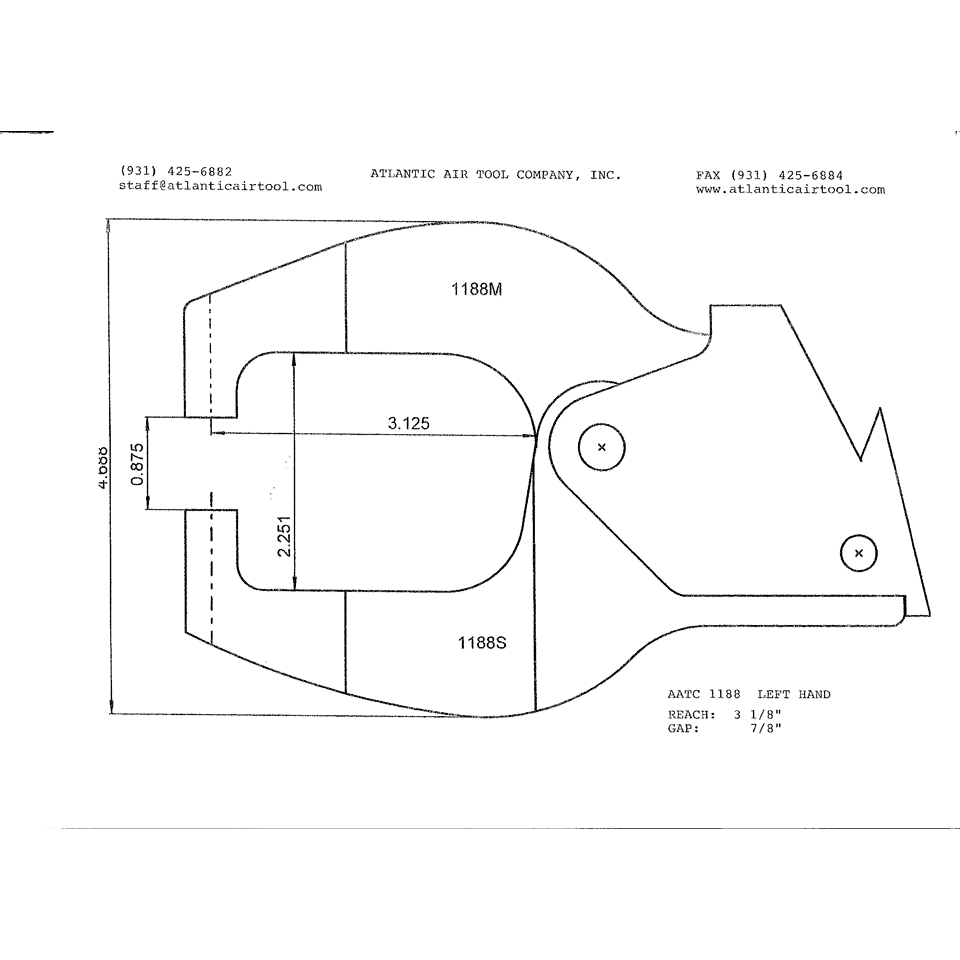

1188



Rated For 30A, 60A
Reach 3 1/8"
Gap 7/8"
Gap Behind Nose 2 1/4"
Left Hand

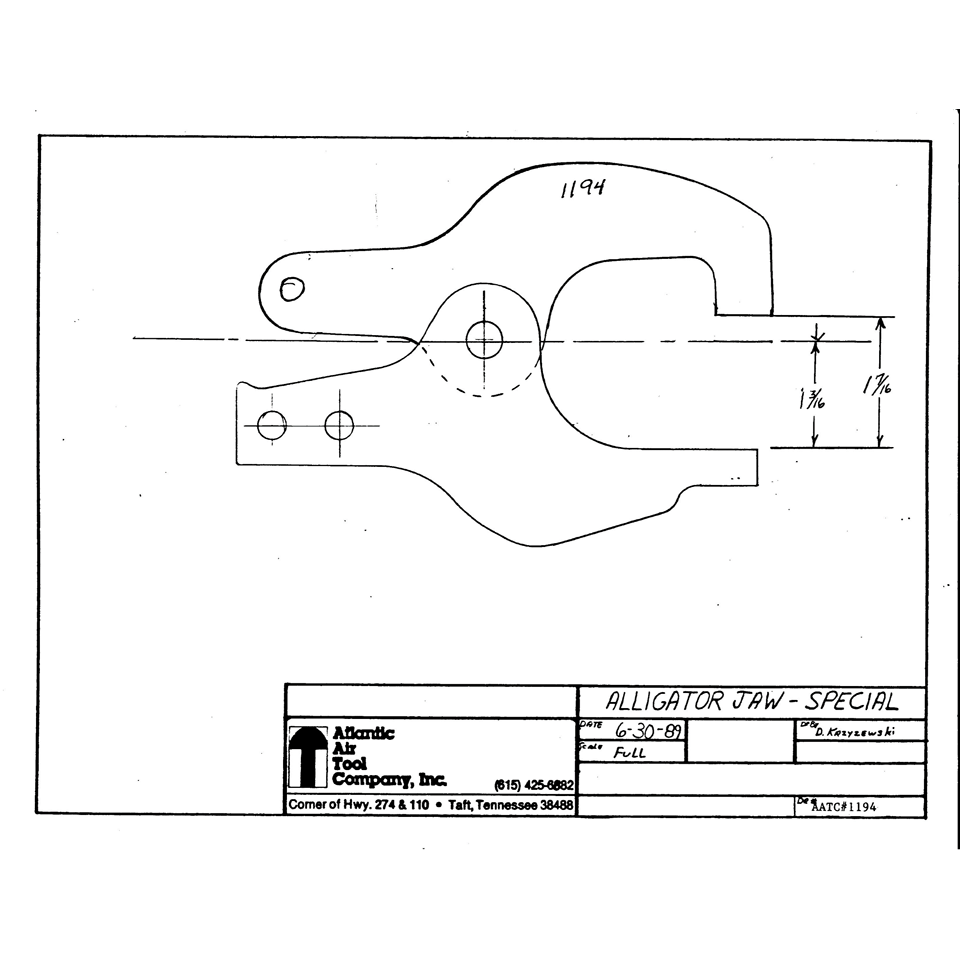

1194S



Rated For 30A, 60A
Reach 2 1/4"
Gap 1 7/16"
Gap Behind Nose 2 1/16"
Pairs With A22MHD

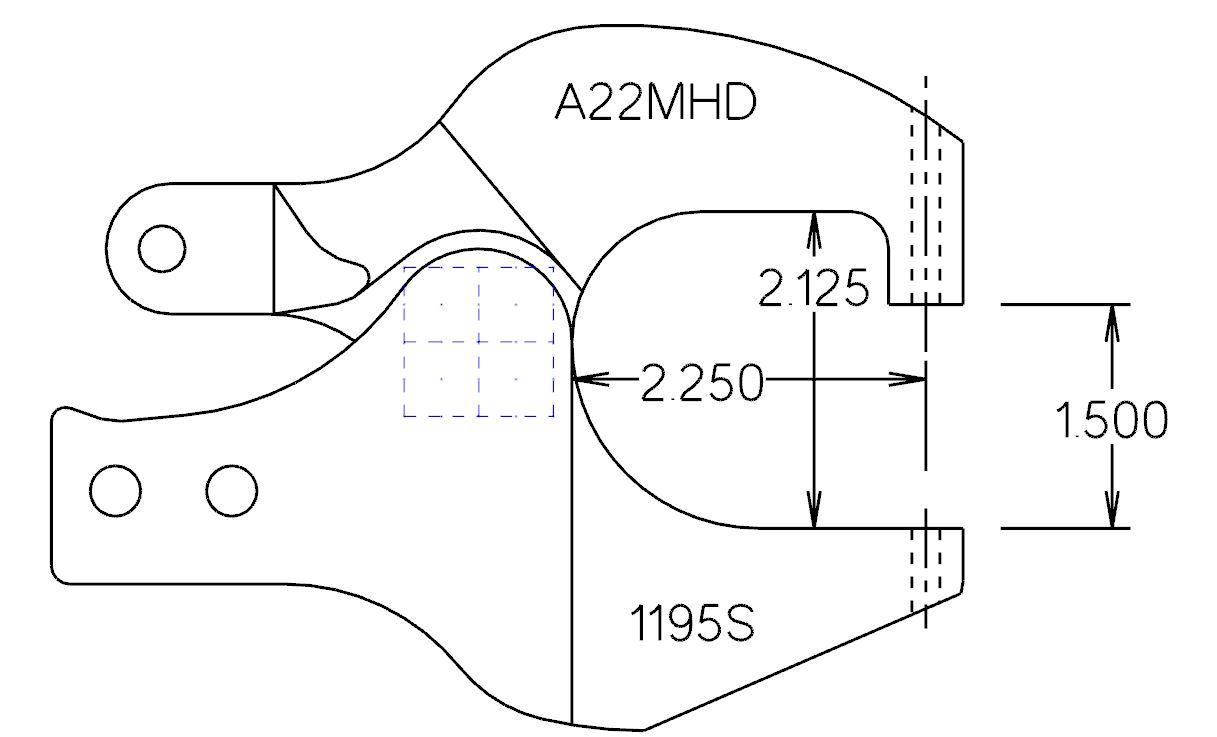

1195



Rated For 30A,60A,90A
Reach 2 1/4"
Gap 1 1/2"
Gap Behind Nose 2 1/8"
Pairs With A22MHD

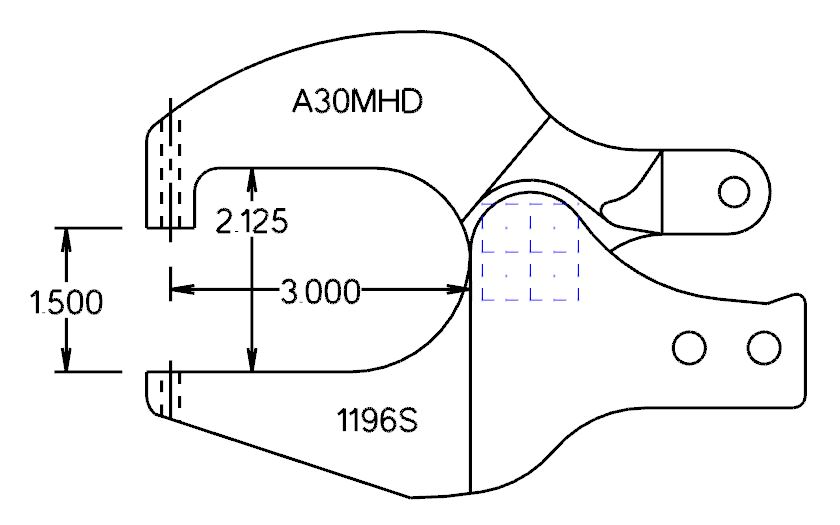

1196



Rated For 30A,60A,90A
Reach 3"
Gap 1 1/2"
Gap Behind Nose 2 1/8"
Pairs With A30MHD

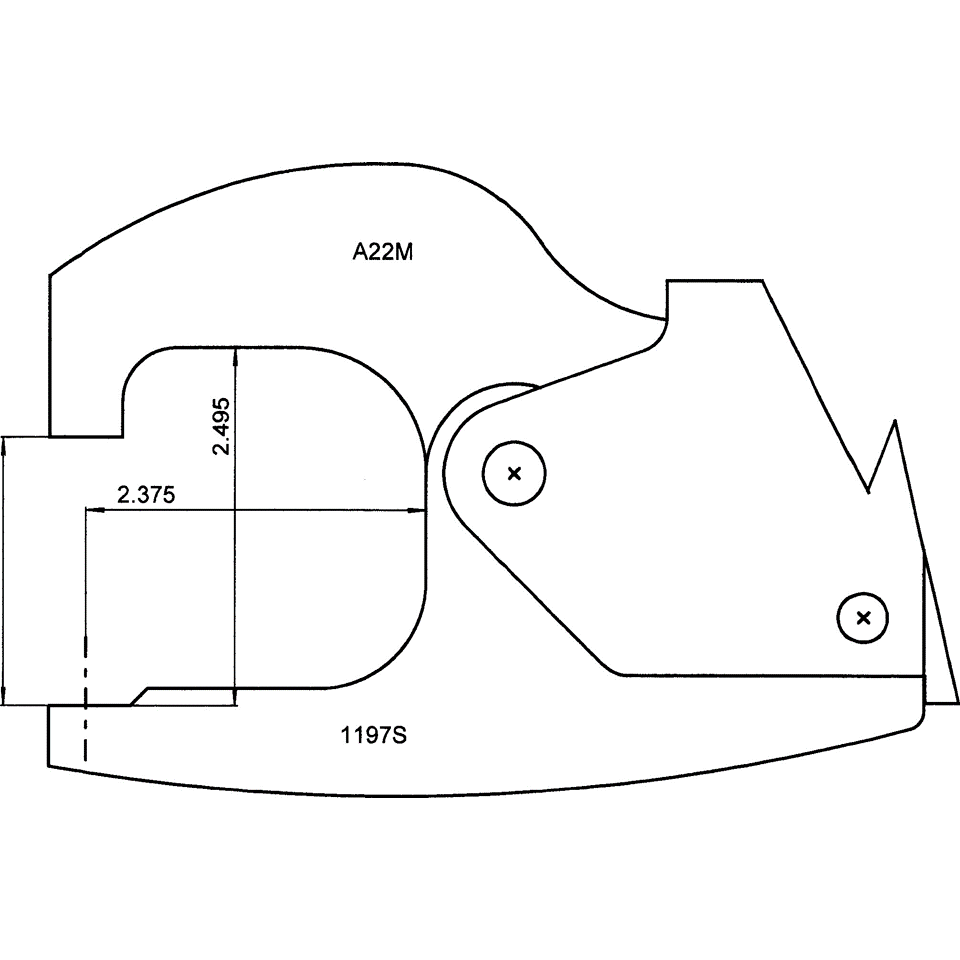

1197S



Rated For 30A,60A,90A
Reach 2 3/8"
Gap 1 7/8"
Gap Behind Nose 2 1/2"
Pairs With A22MHD

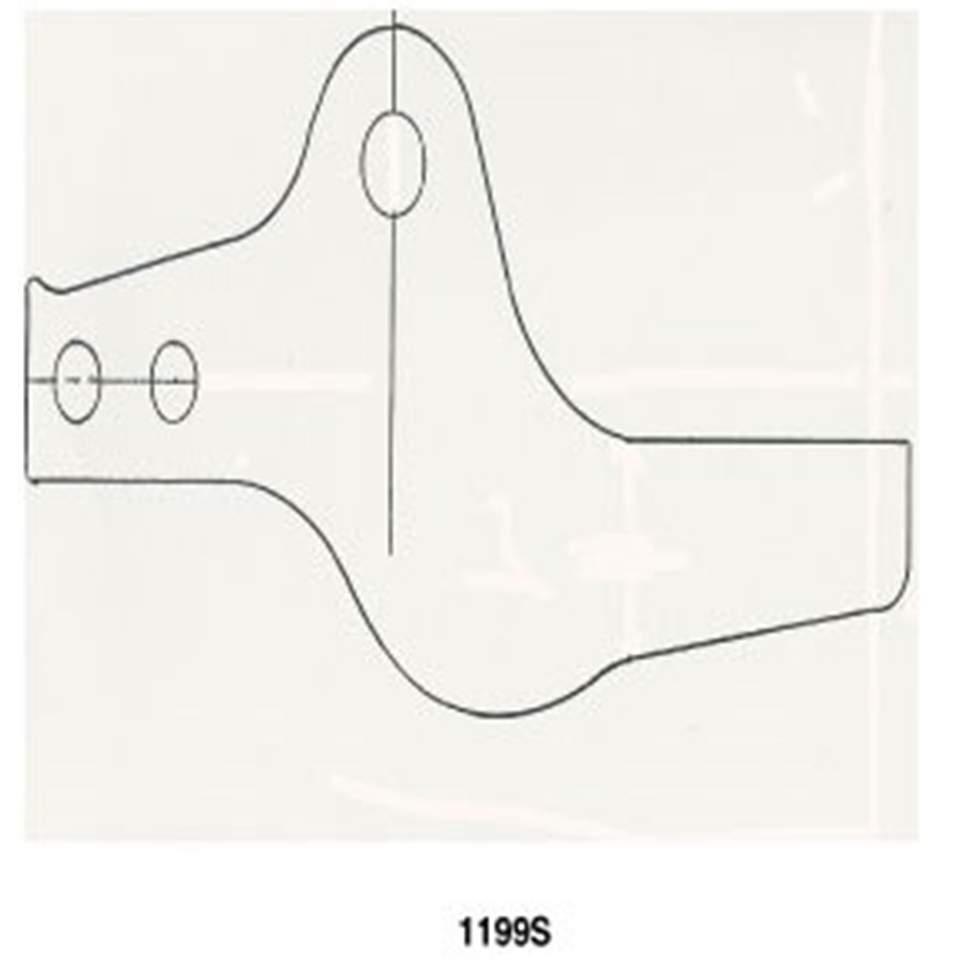

1199S



Rated For 30A, 60A, 90A
Reach
Gap 3"
