Special Yokes & Jaws Warranty

All Special Manufactured Yokes and Alligator Jaws have a 30 Day Warranty under normal use.

Warranty will be null and void if customer requests any unusual change from manufacture of special yokes and jaws.

No warranty if Atlantic Air Tool Special Yoke or Alligator Jaw assembled into a non-Atlantic Air Tool.



1400's

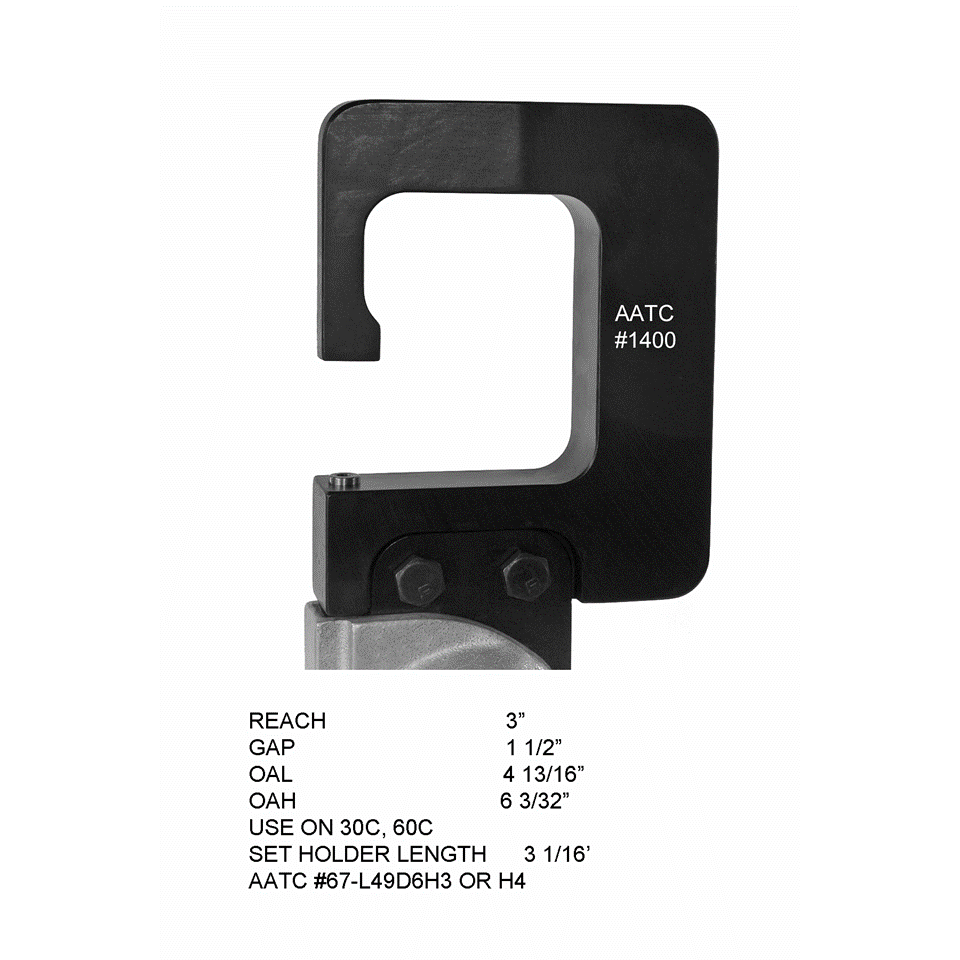

1400



Rated for 30C, 60C
Reach 3"
Gap 1 1/2"
Gap Behind Nose 3 1/2"

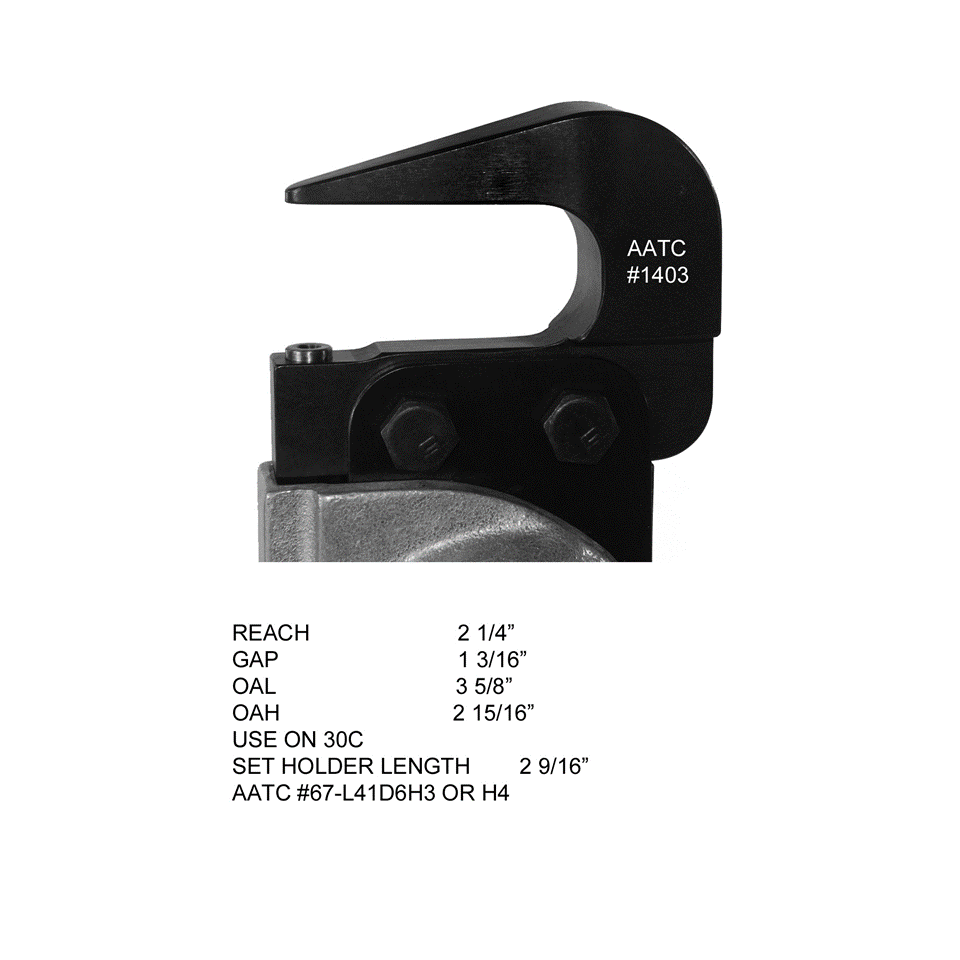

1403



Rated For  30C ONLY
Reach 2 5/16"
Gap 1 3/16"
No Top Set Hole

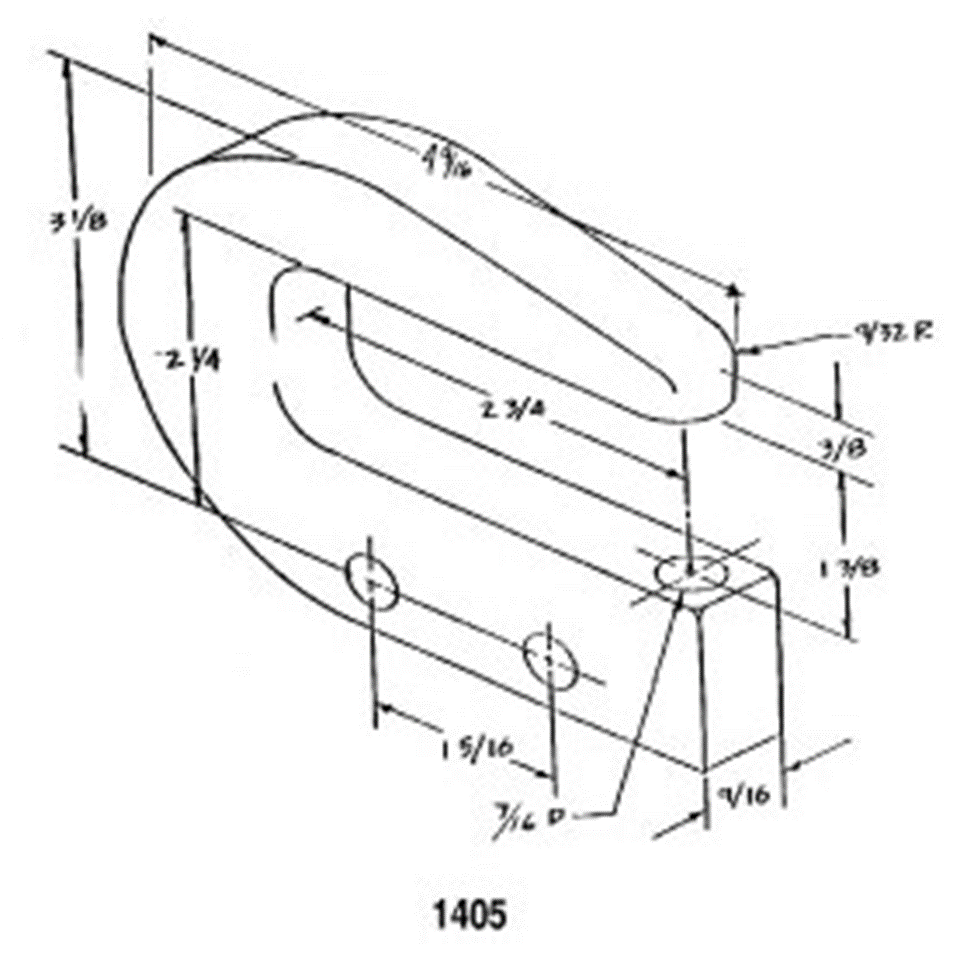

1405



Rated For  30C, 60C
Reach 2 3/4"
Gap 1 3/8"

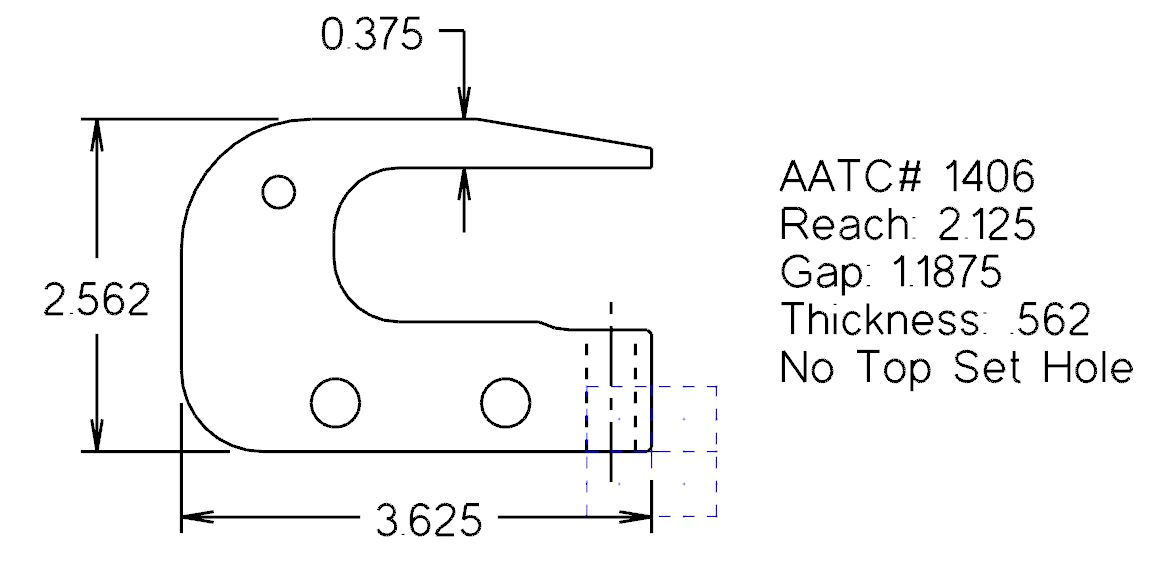

1406



Rated For  351 YOKE
Reach
Gap

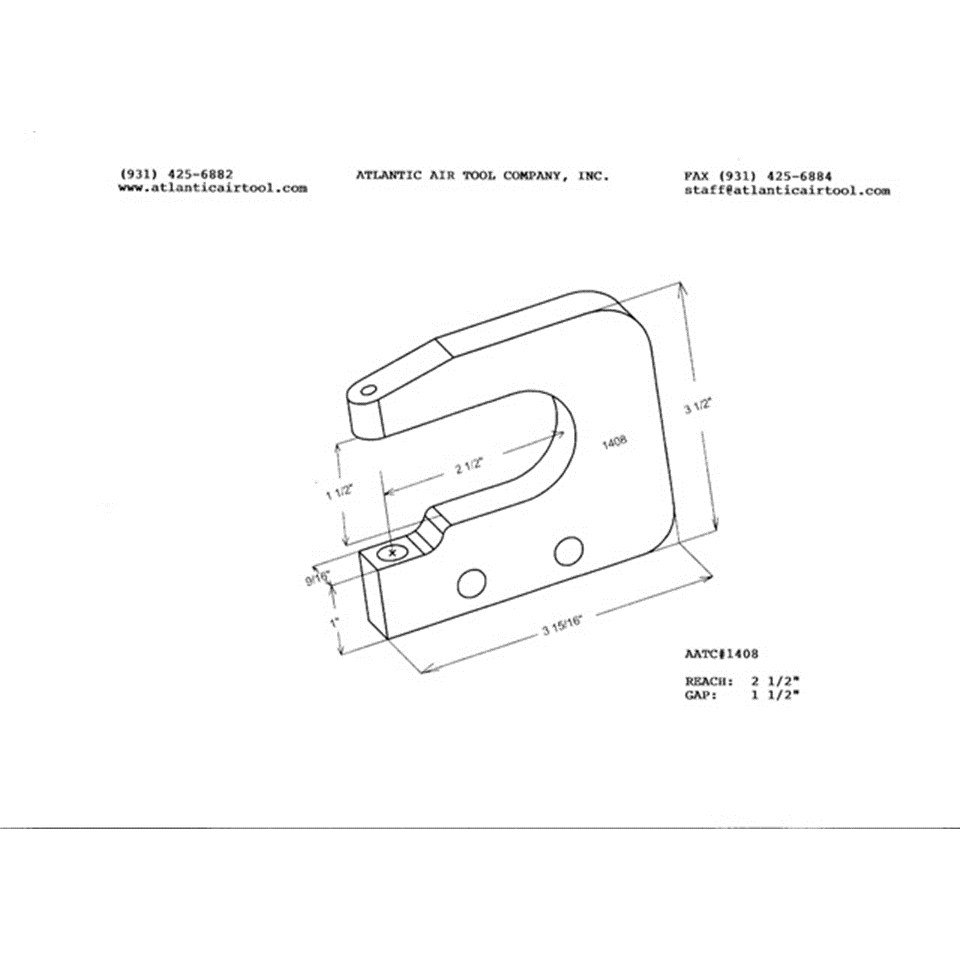

1408



Rated For 30C,60C
Reach 2 1/2"
Gap 1 1/2"



1409RH



Rated For 60C
Reach 3"
Gap 1 9/16"

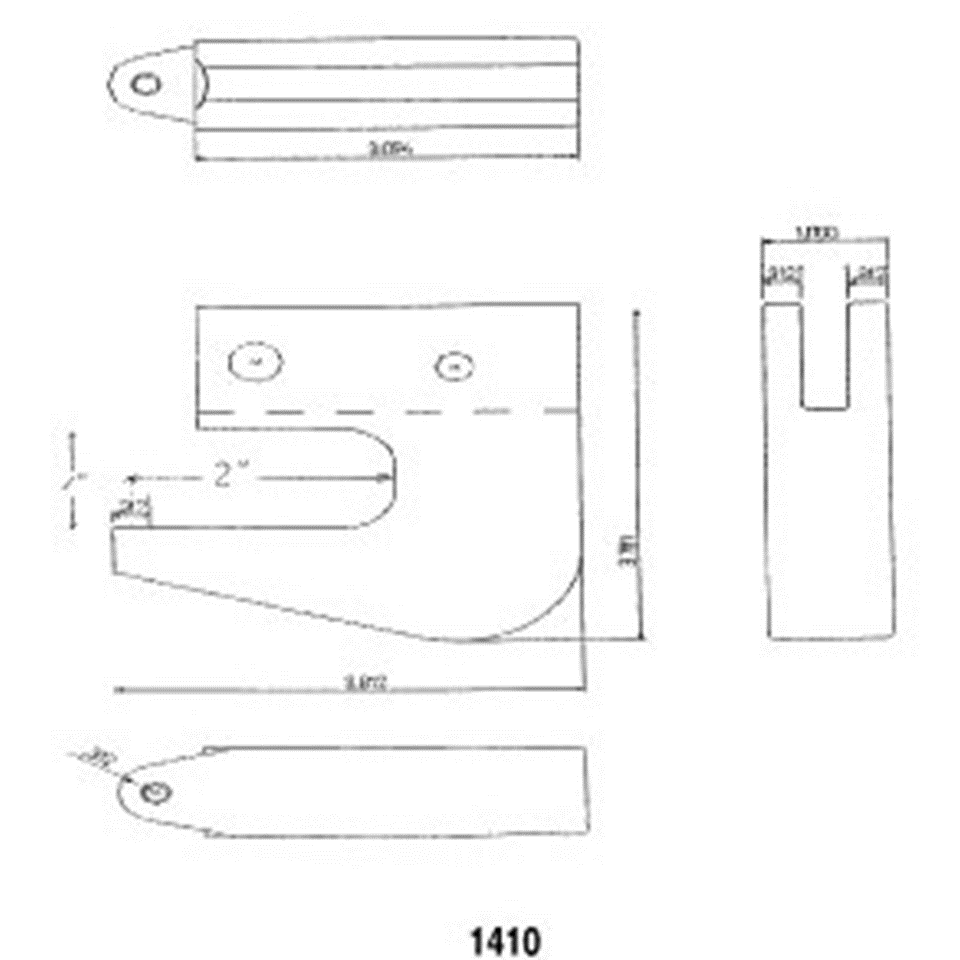

1410



Rated For 351 1-A
Reach 2"
Gap 1"

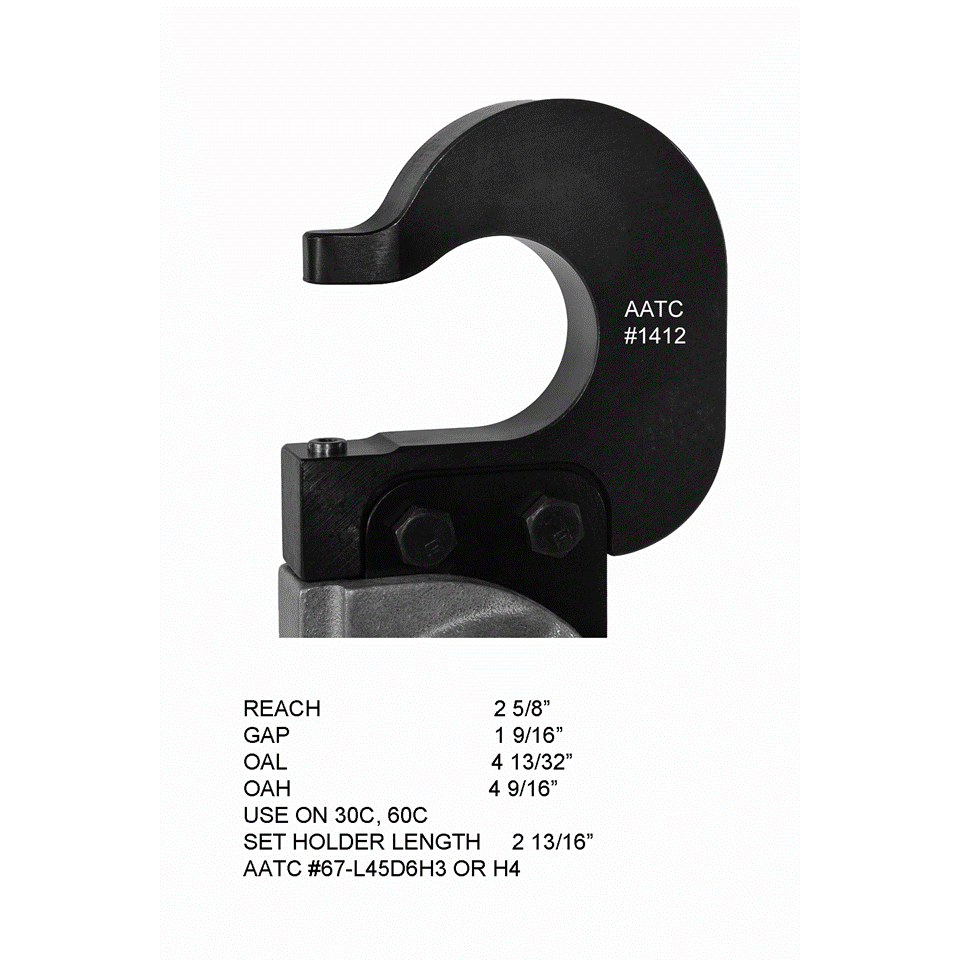

1412



Rated For 30C,60C
Reach 2 5/8"
Gap 1 9/16"
Gap Behind the Nose 2"

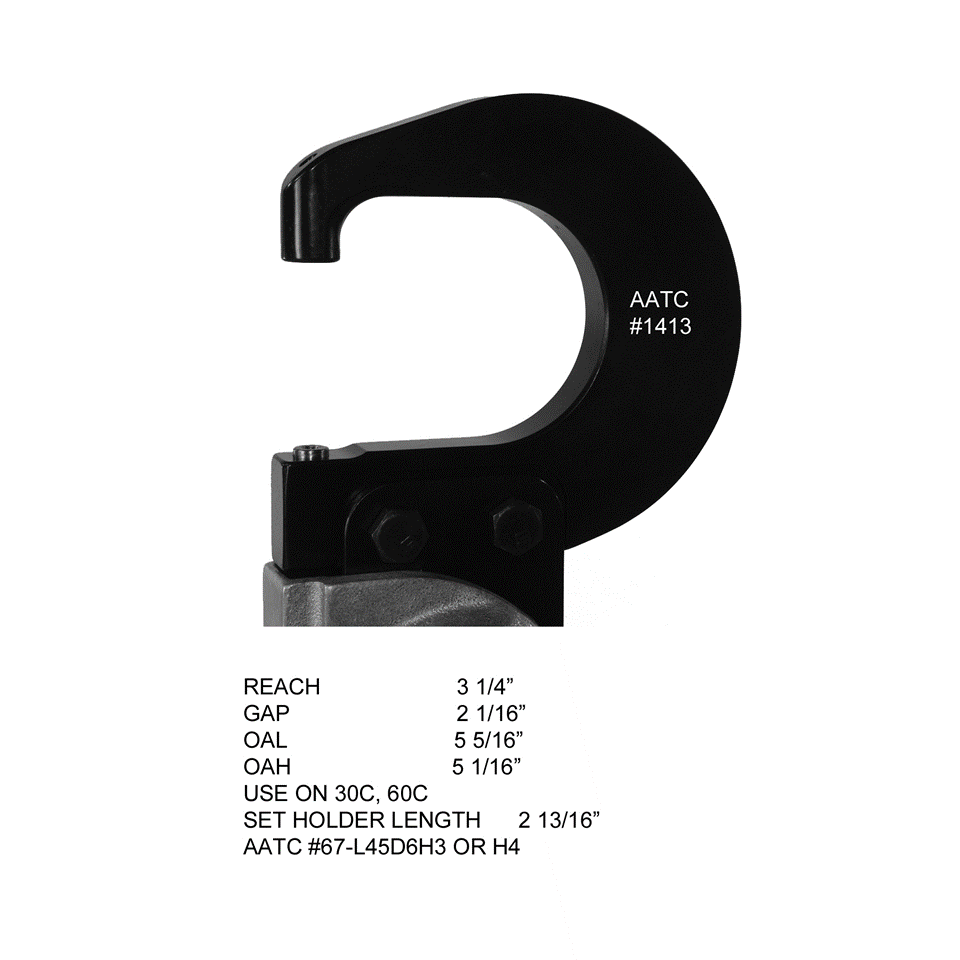

1413



Rated For 30C, 60C
Reach 3 1/4"
Gap 2 1/16"
Gap Behind Nose 2 11/16

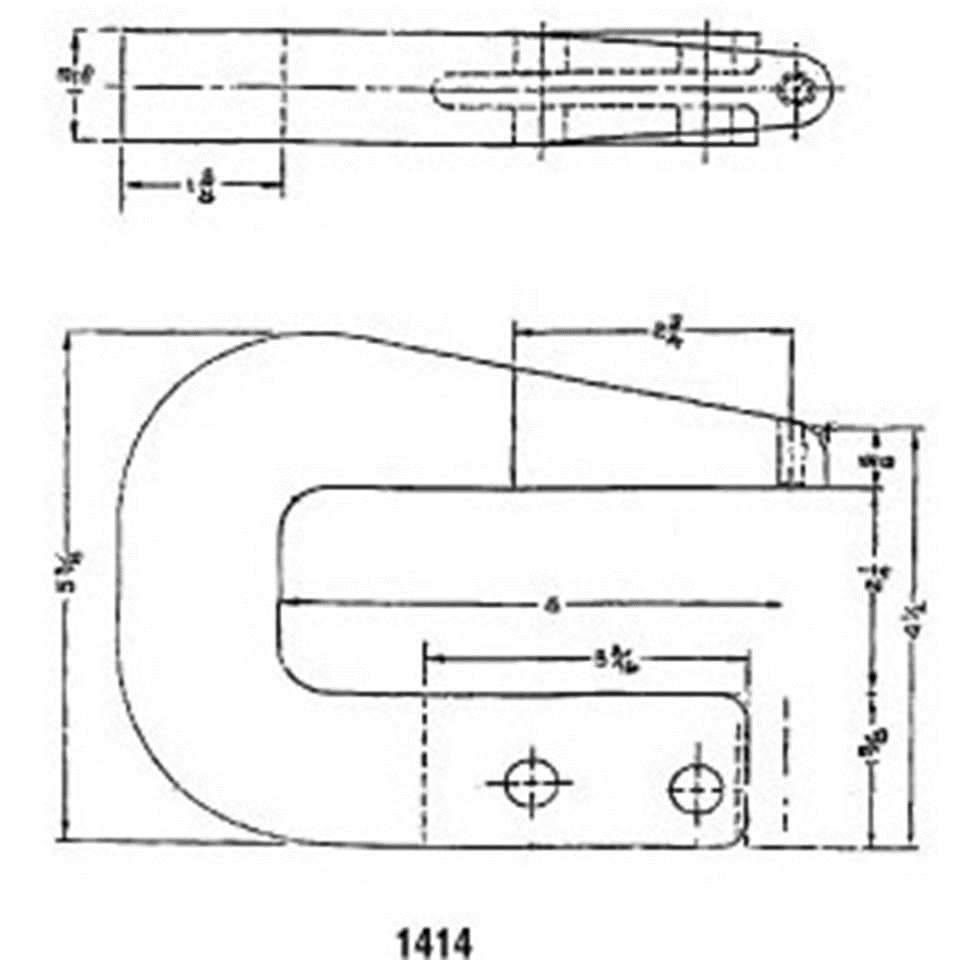

1414



Rated For 351
Reach 5"
Gap 2 1/4"



1416



Rated For 30C, 60C
Reach 1 11/16"
Gap 1/2"

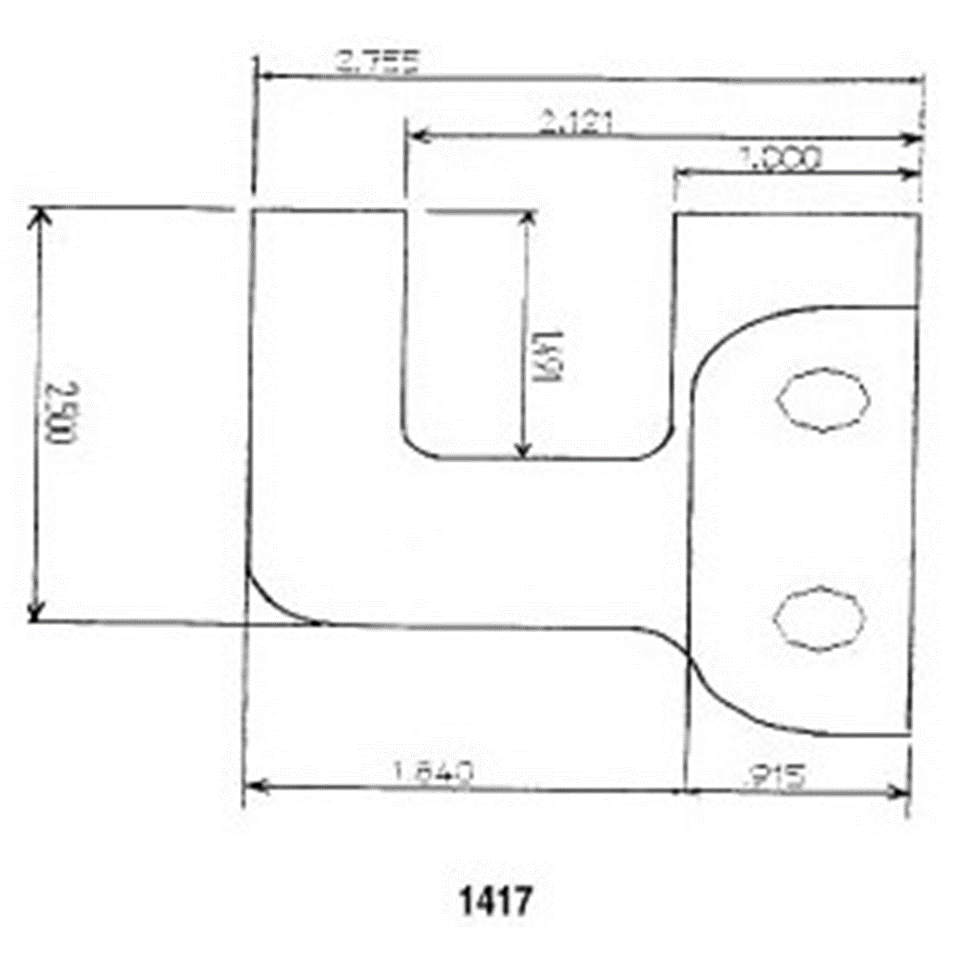

1417



Rated For 30C,60C
Reach 1 3/16"
Gap 1 1/8"

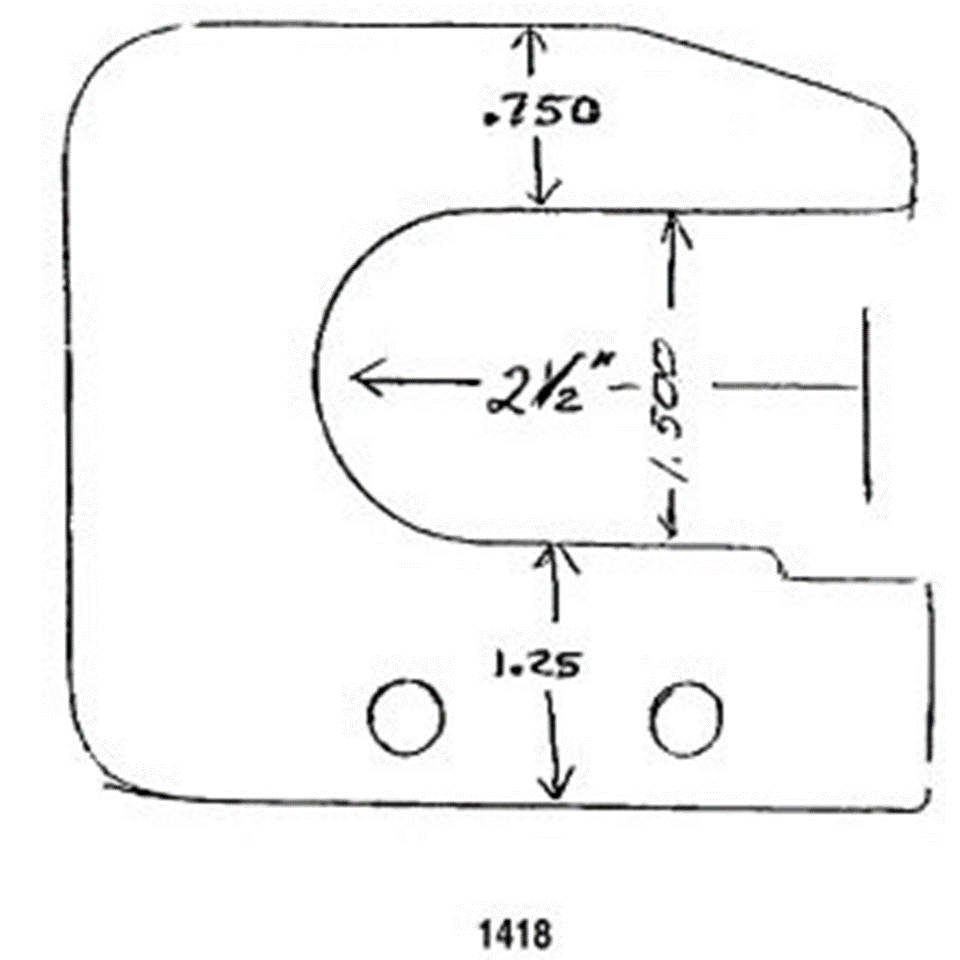

1418



Rated For
Reach
Gap

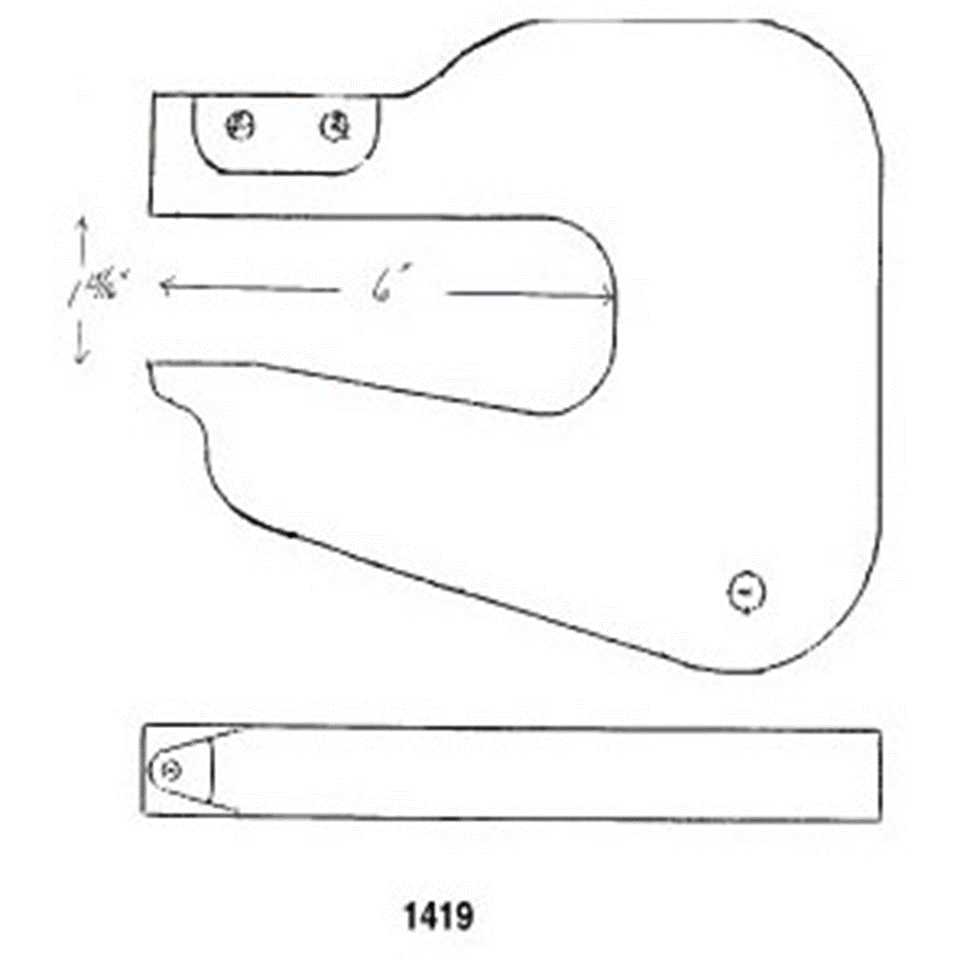

1419



Rated For 30C, 60C
Reach 6"
Gap 1 15/16"

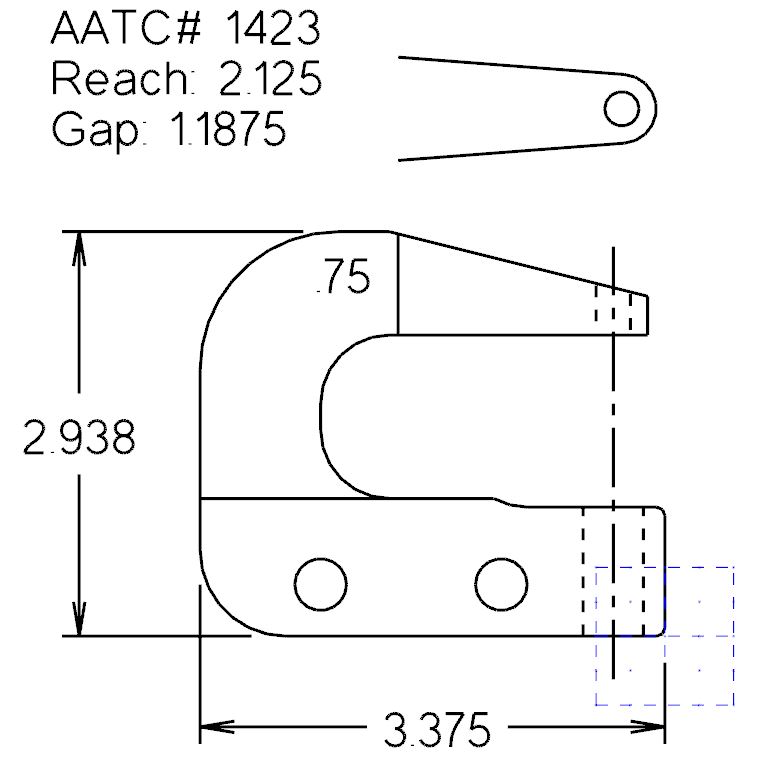

1423



Rated For 30C
Reach  2 1/8"
Gap  1 3/8"

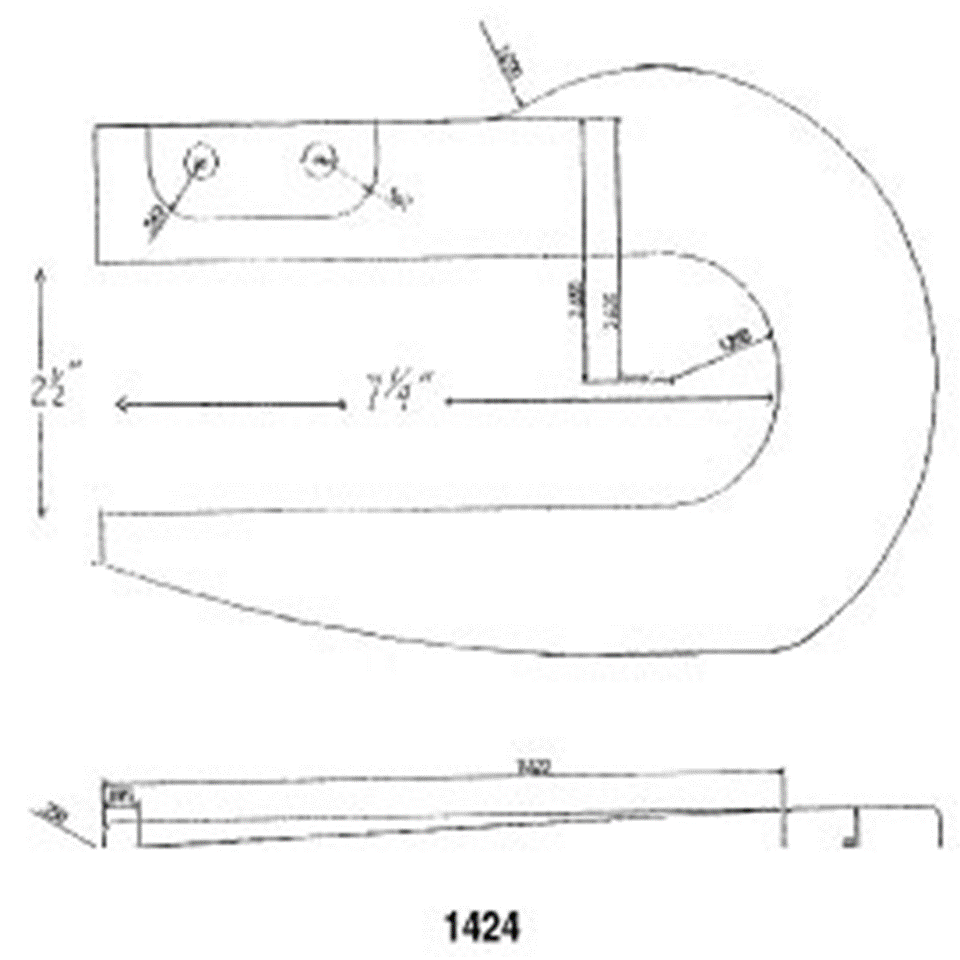

1424



Rated For 30C, 60C
Reach  7 1/4"
Gap  2 1/2"

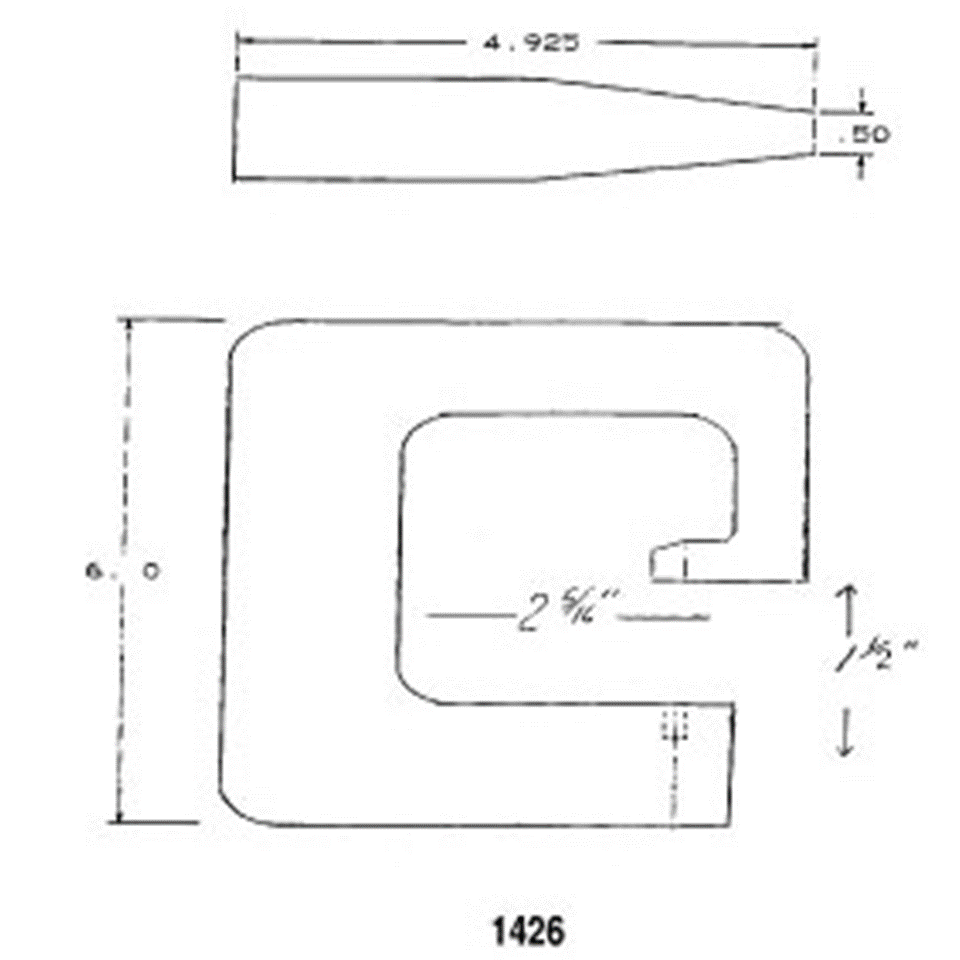

1426



Rated For 30C, 60C
Reach  2 5/16"
Gap  1 1/2"
Gap Behind the Nose 3 1/2"



1427



Rated For 351 YOKE
Reach  4"
Gap 2"

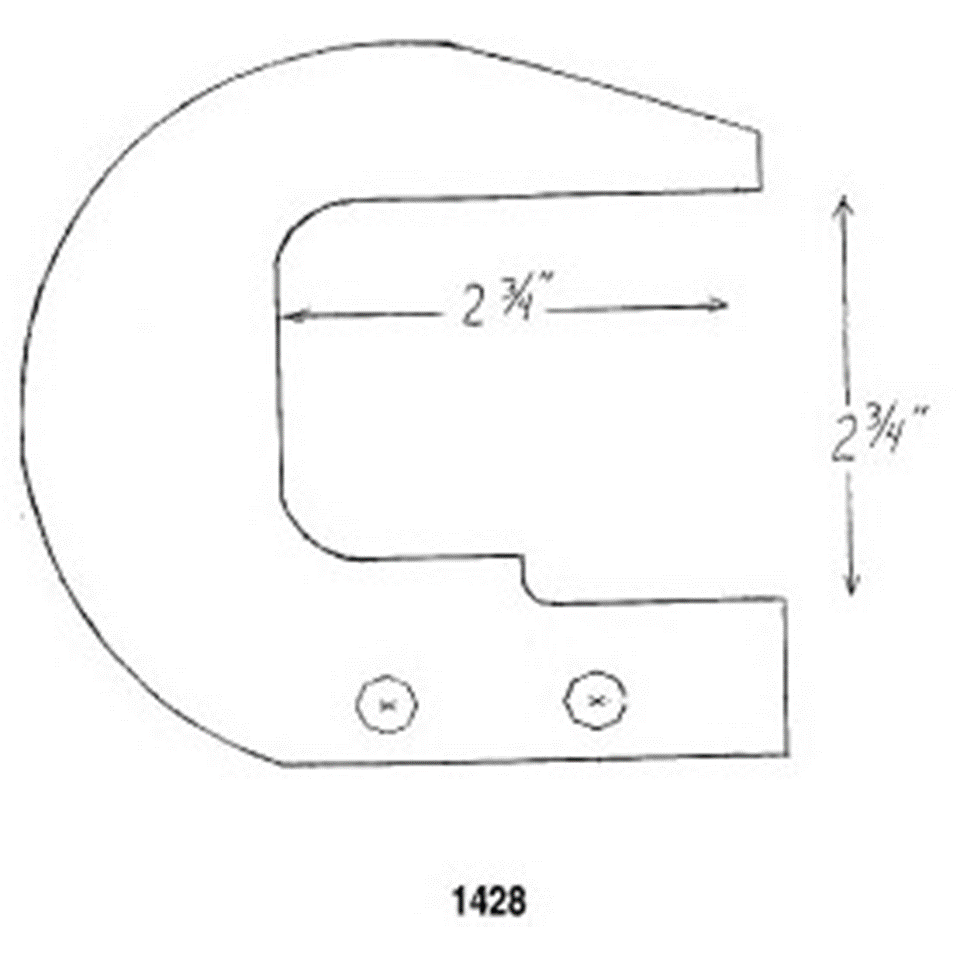

1428



Rated For 30C, 60C
Reach  2 3/4"
Gap 2 3/4"

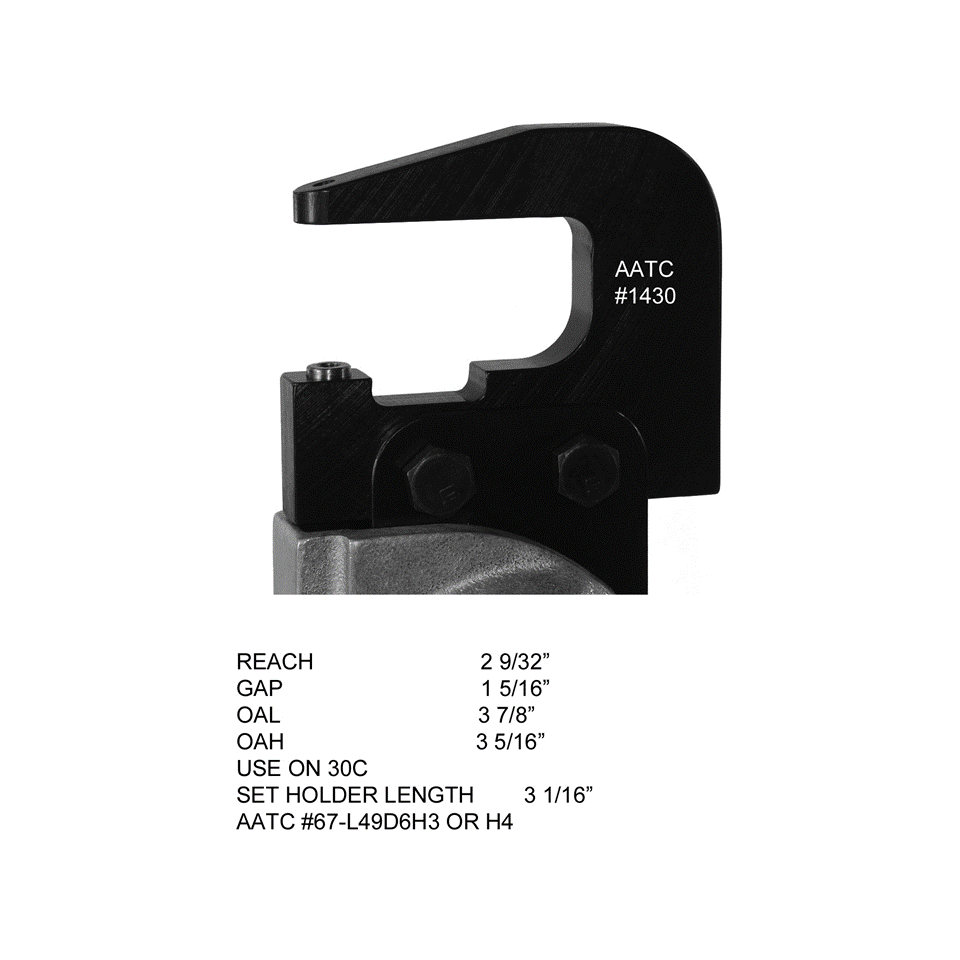

1430



Rated For 30C
Reach 2 9/32"
Gap 1 15/16"

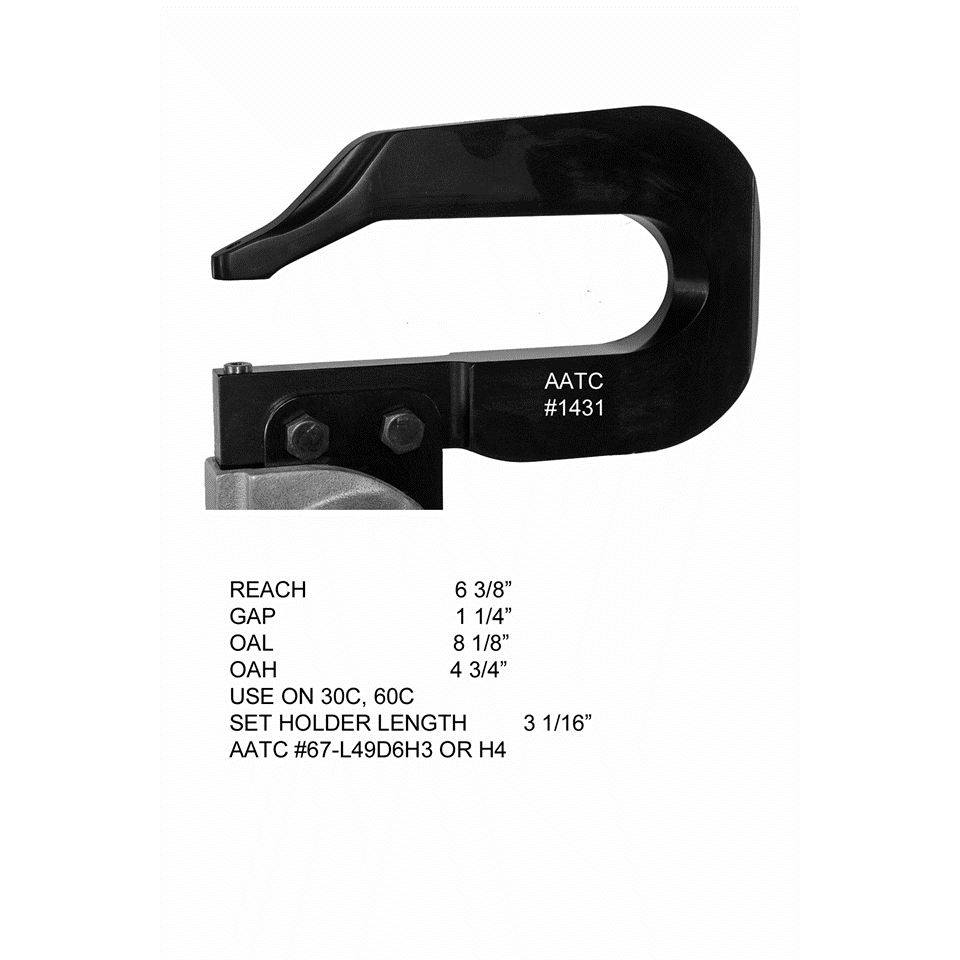

1431



Rated For 30C, 60C
Reach 6 1/2"
Gap 1 1/4"

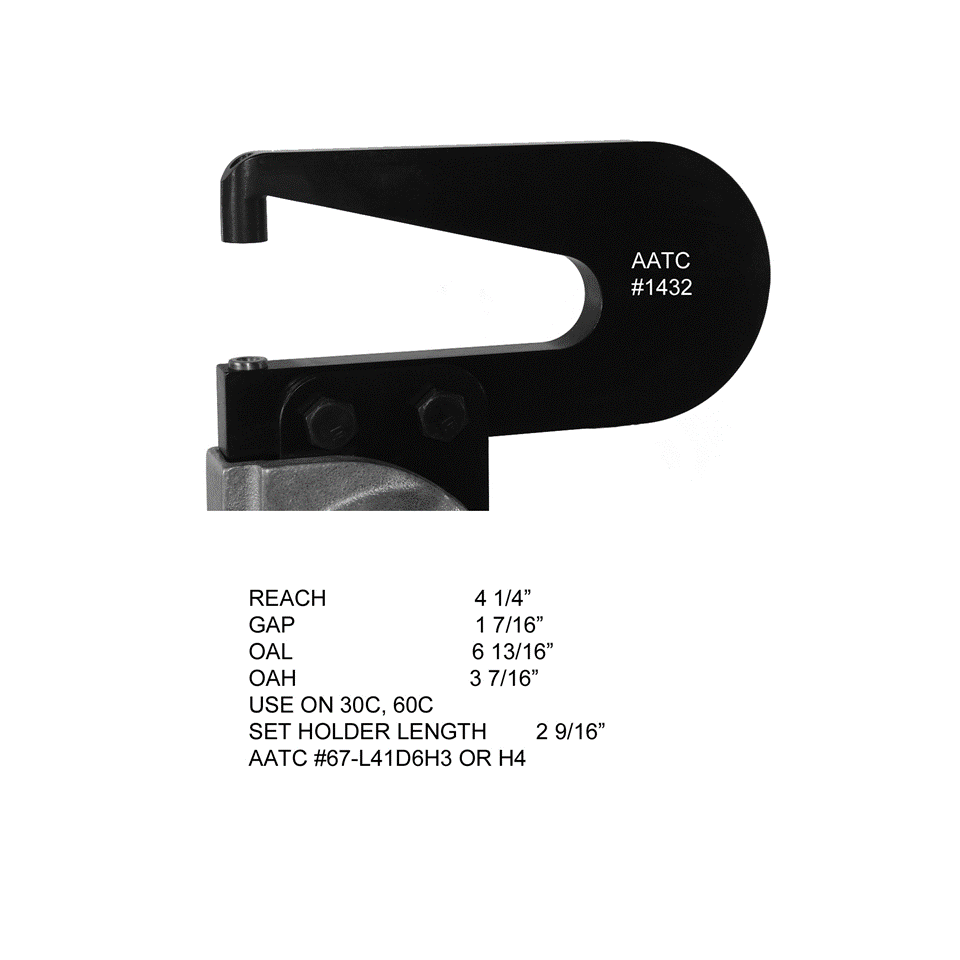

1432



Rated For 30C,60C
Reach 4 1/4"
Gap 1 7/16"

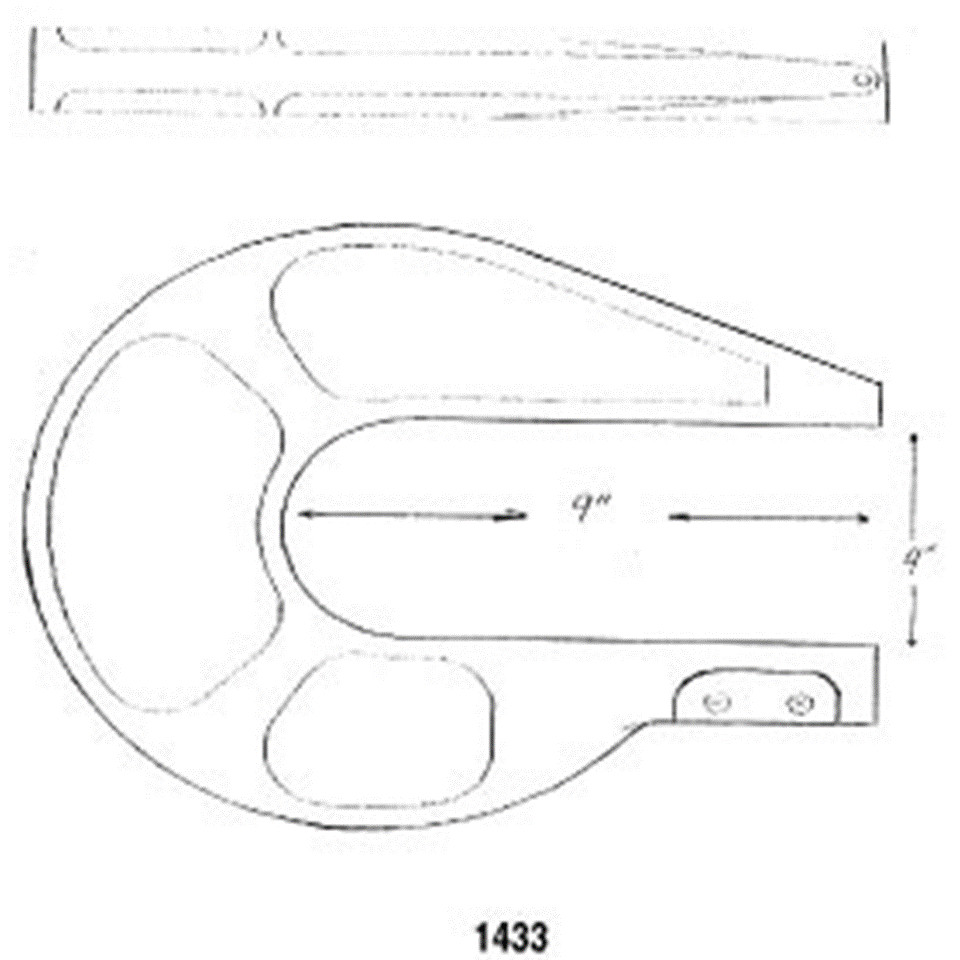

1433



Rated For 30C, 60C
Reach 9"
Gap 4"

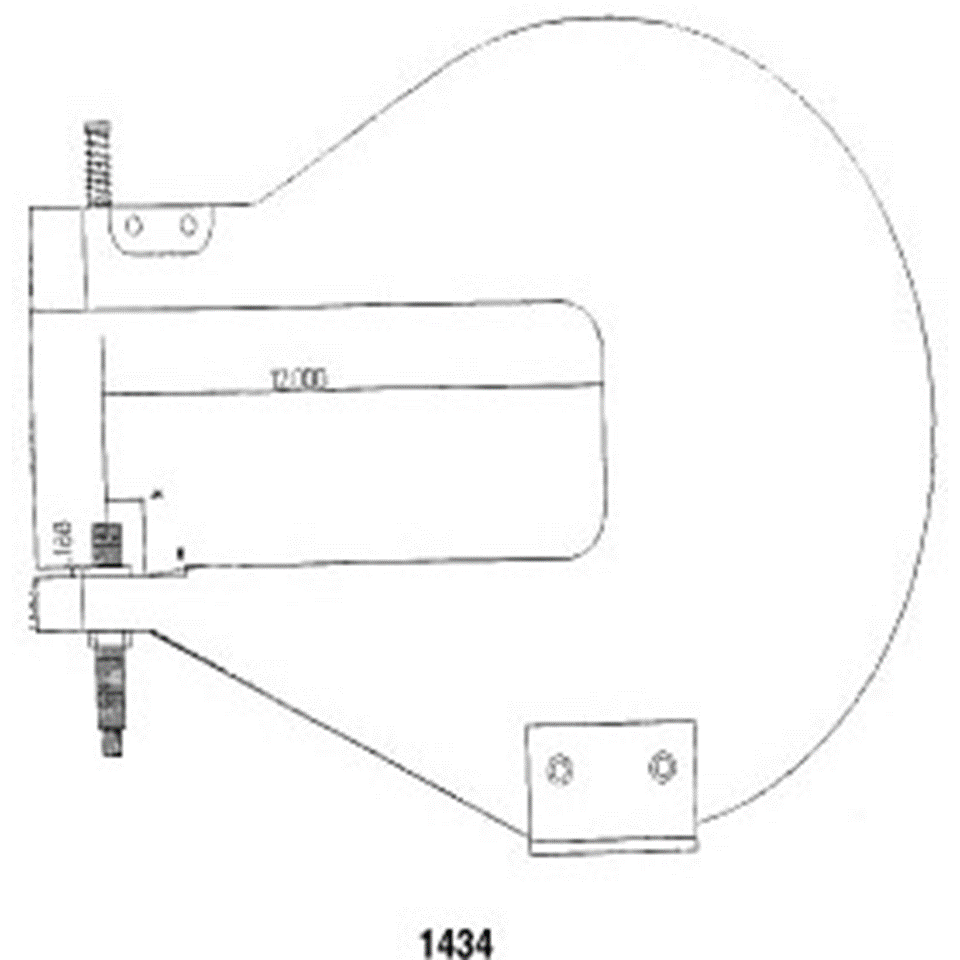

1434



Rated For 30C, 60C,90C
Reach 12"
Gap 5"

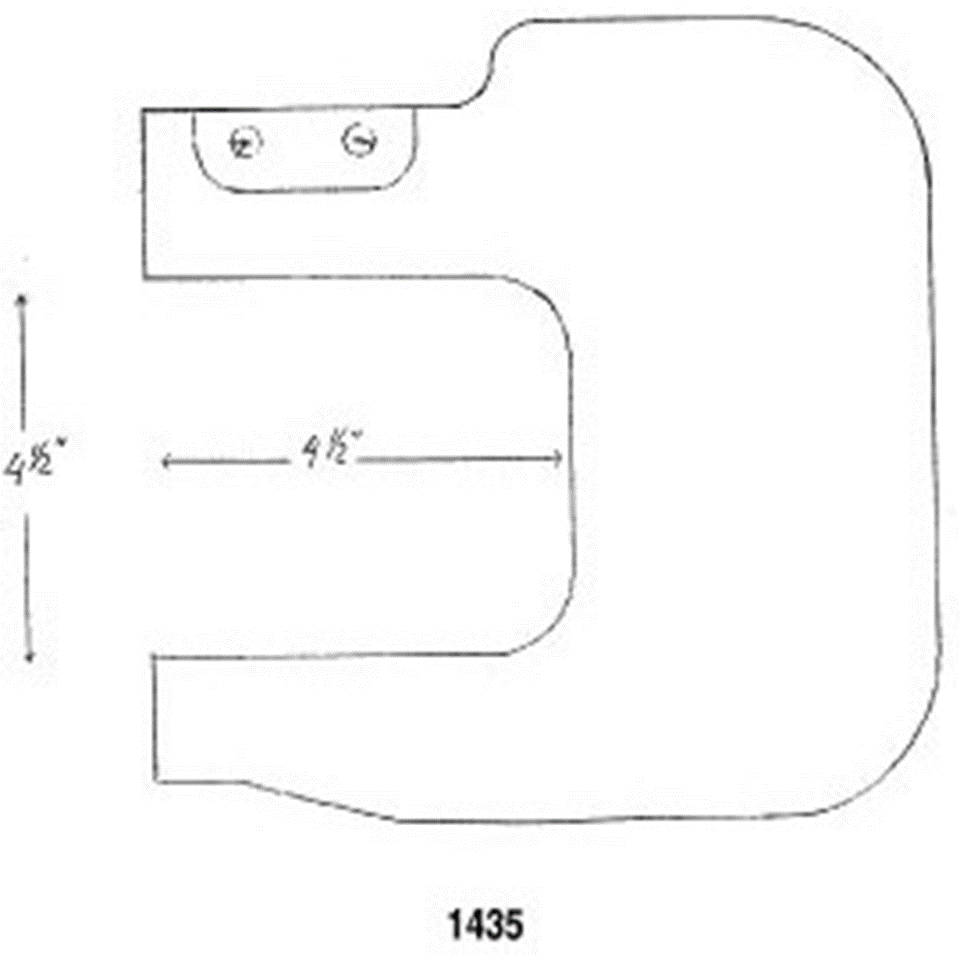

1435



Rated For 30C, 60C
Reach 4 1/2"
Gap 4 1/2"

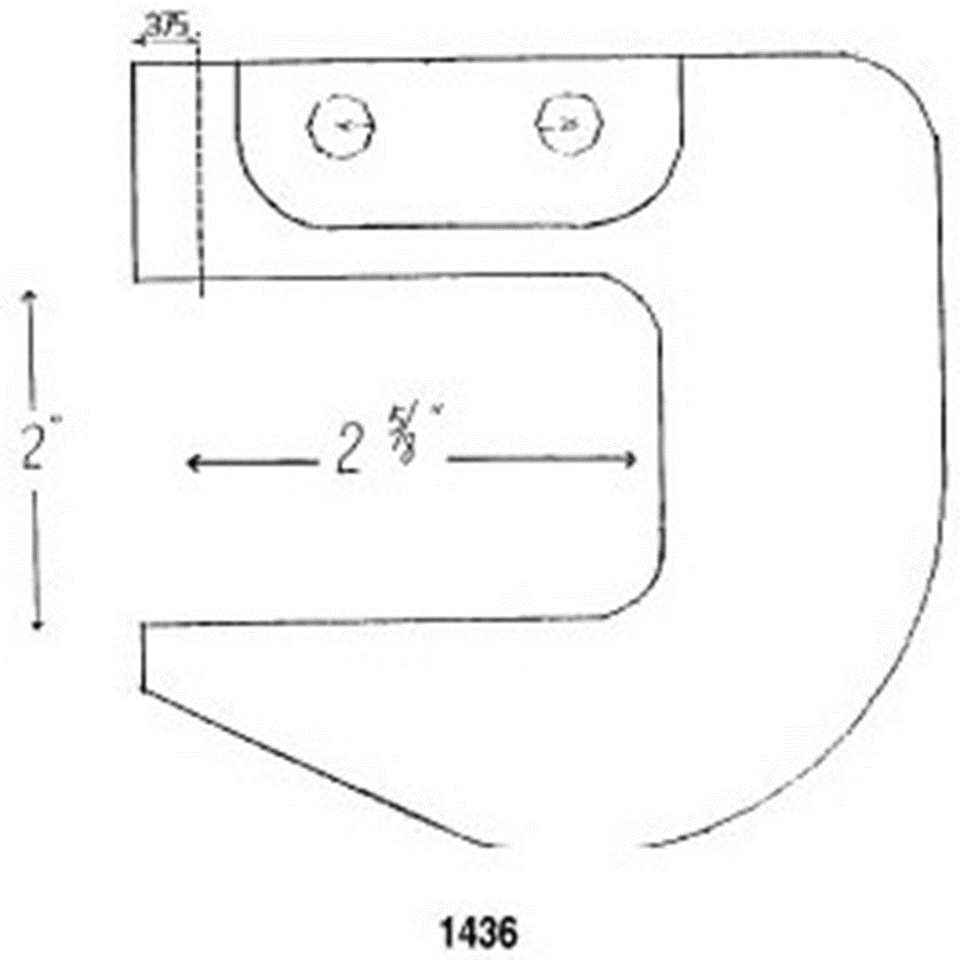

1436



Rated For 30C, 60C
Reach 2 5/8"
Gap 2"

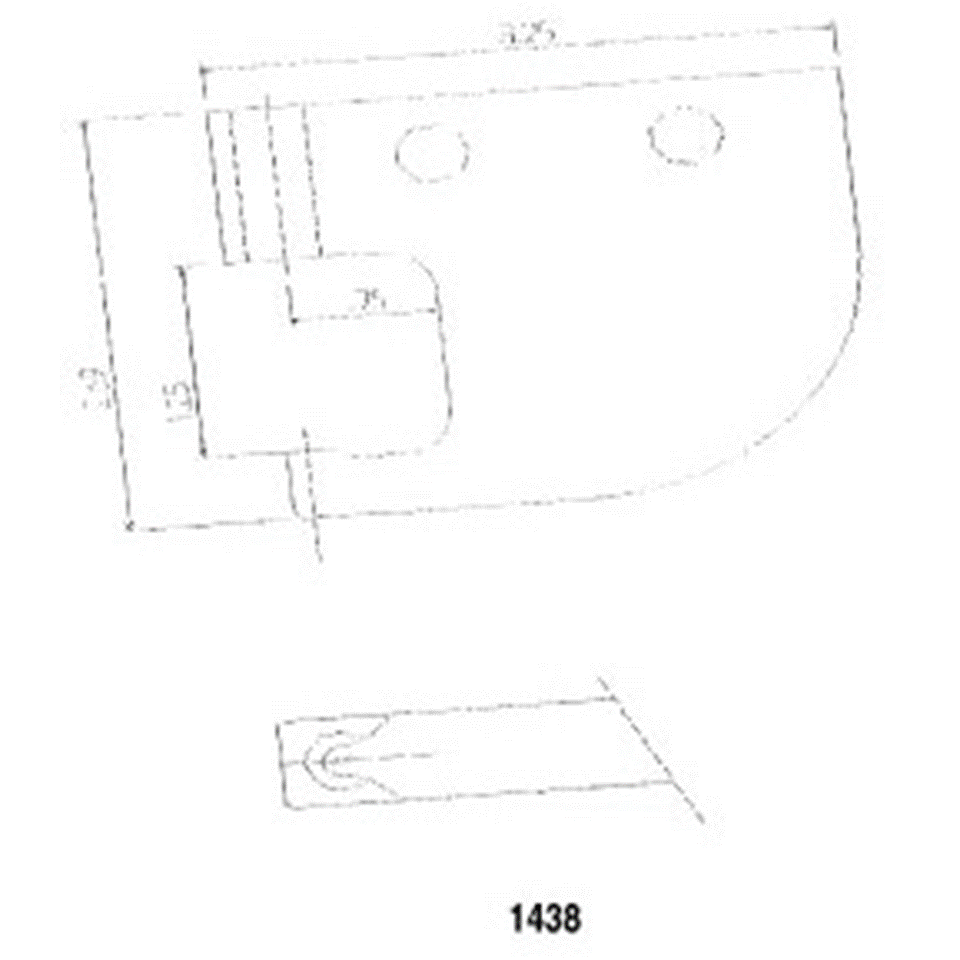

1438



Rated For 30C Only
Reach 3/4"
Gap 1 1/4"

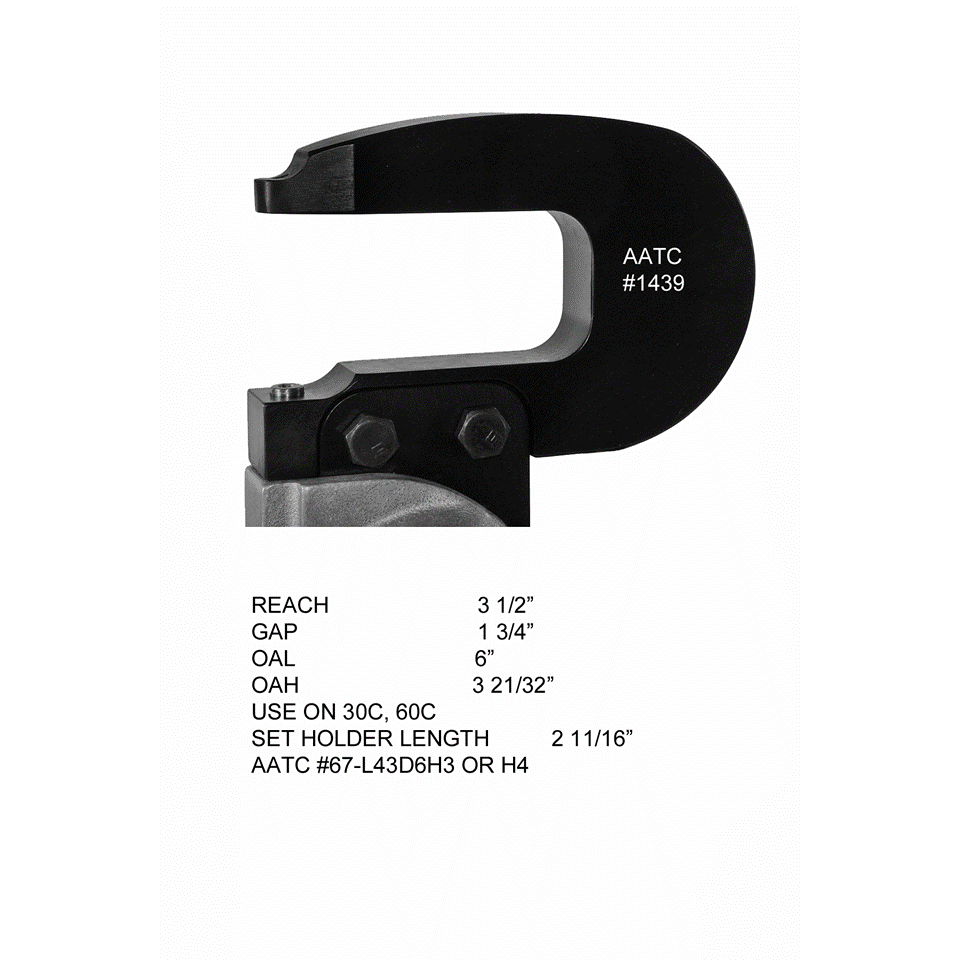

1439



Rated For 30C, 60C
Reach 3 1/2"
Gap 2"

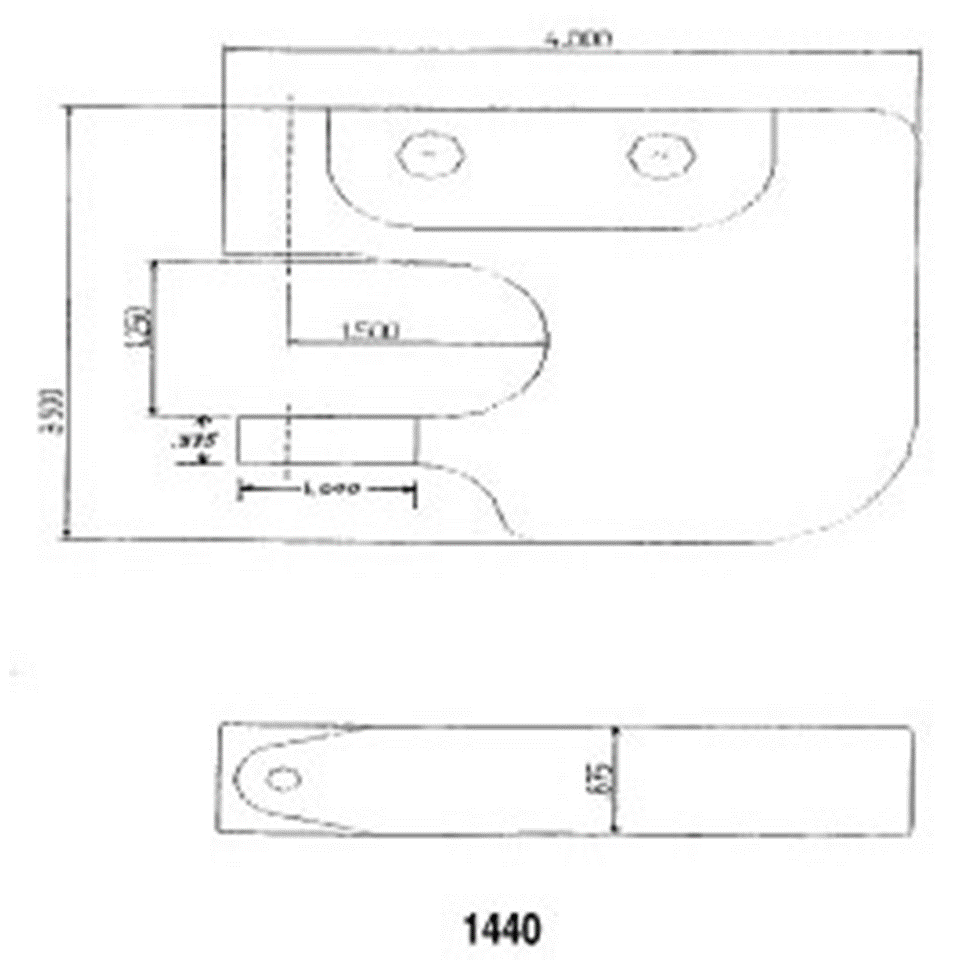

1440



Rated For 30C
Reach 1 1/2"
Gap 1 1/4"

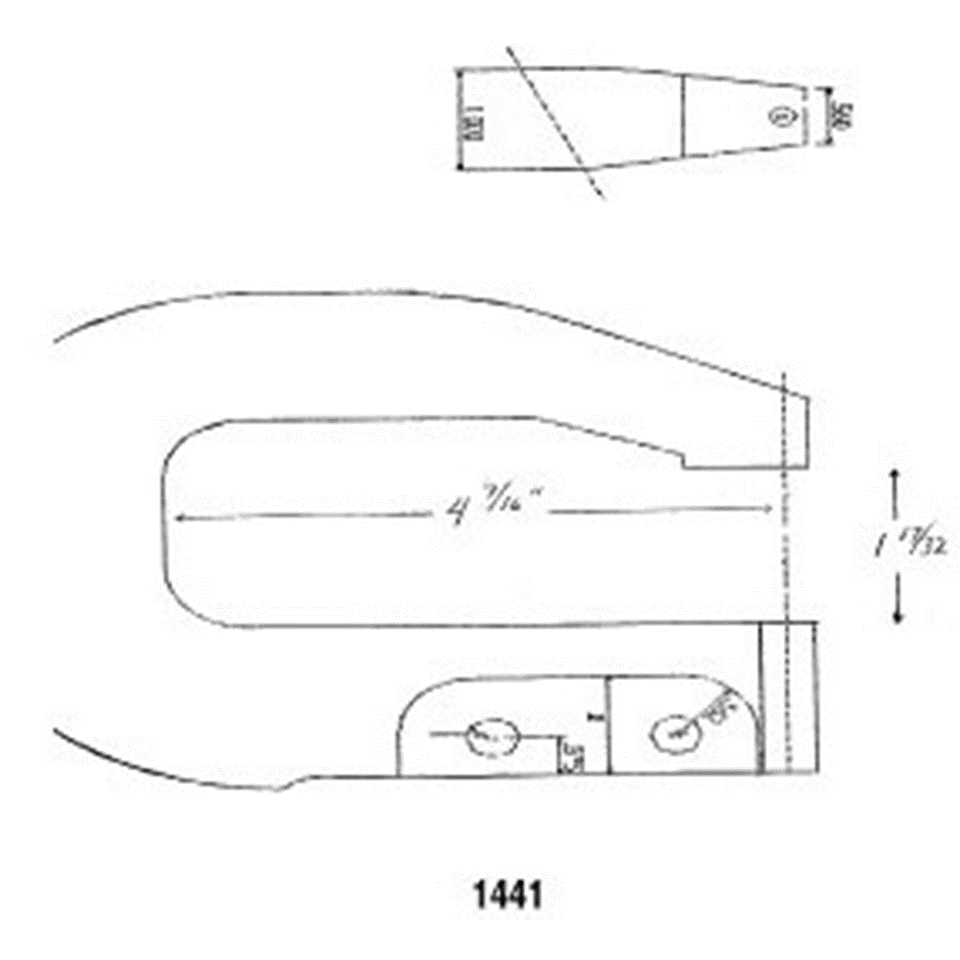

1441



Rated For 30C, 60C
Reach 4 7/16"
Gap 1 17/32"
Gap Behind the Nose 2 1/16"

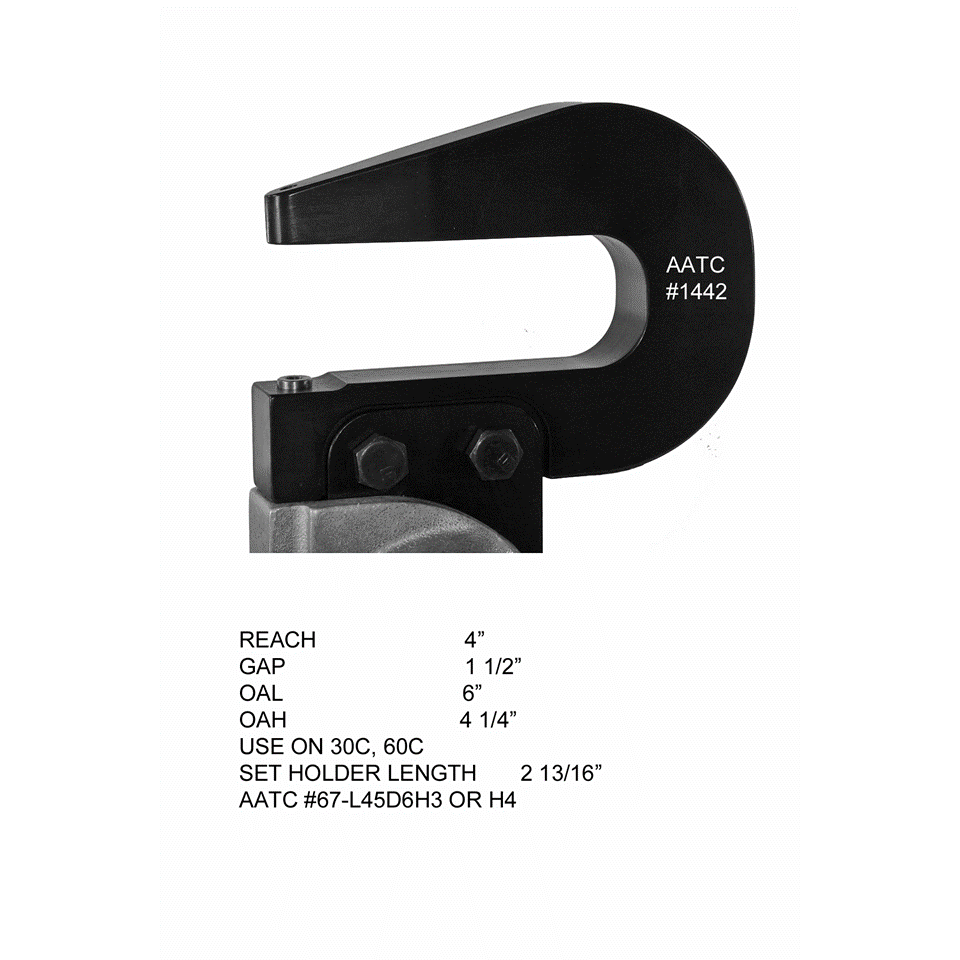

1442



Rated For 30C, 60C
Reach 4"
Gap 1 1/2"

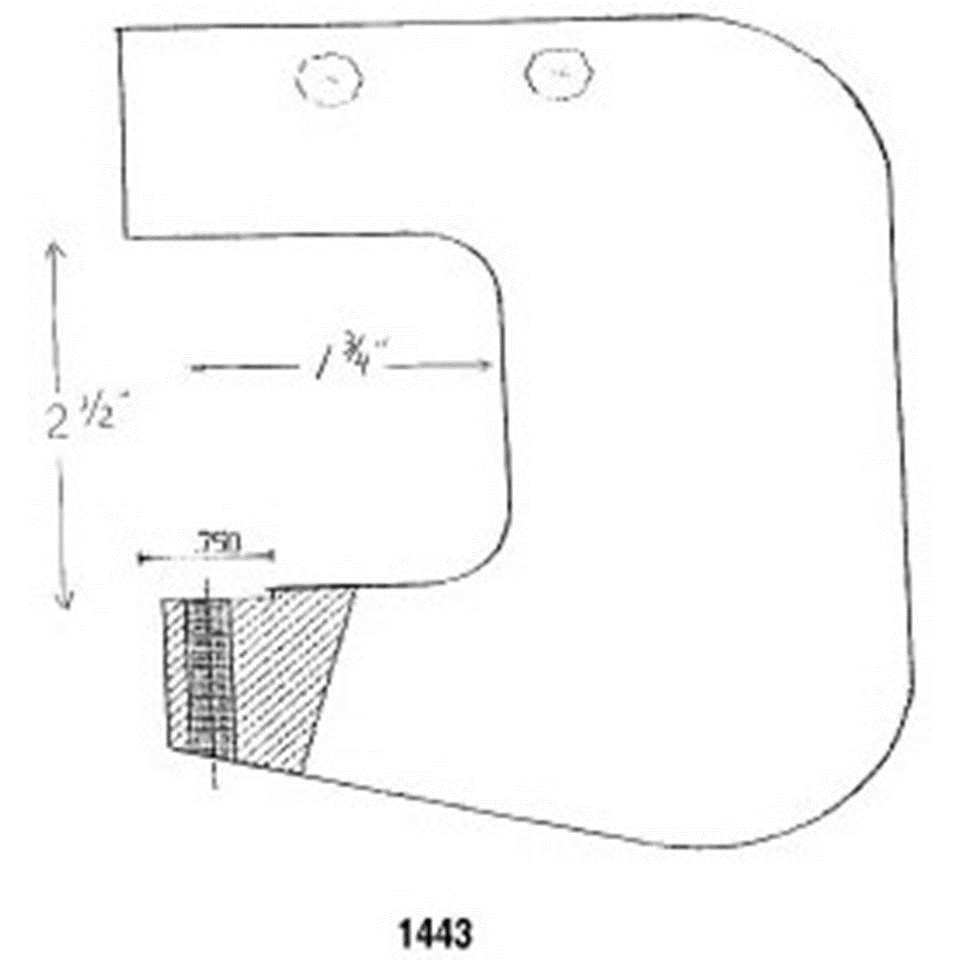

1443



Rated For 30C, 60C
Reach 1 3/4"
Gap 2 1/2"



1445



Rated For 444C
Reach 3"
Gap 1 1/2"

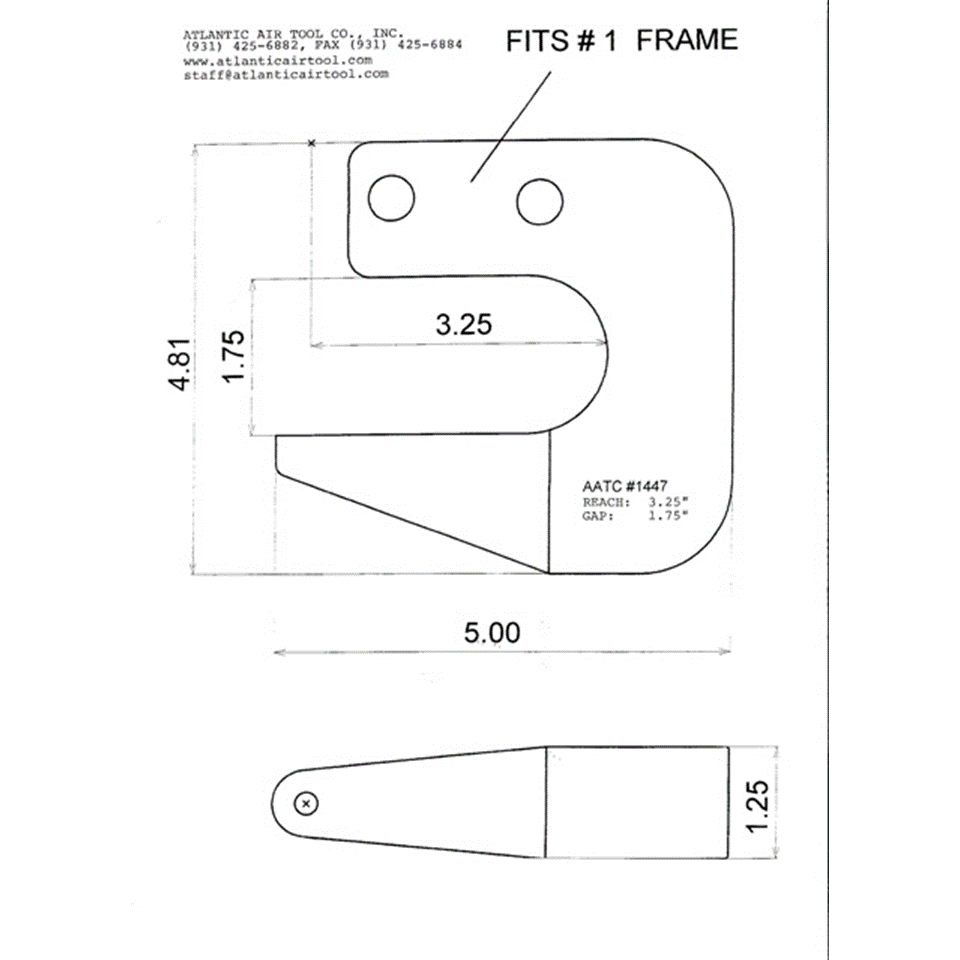

1447



Rated For #1 Frame for a 351
Reach 3 1/4"
Gap 1 3/4"

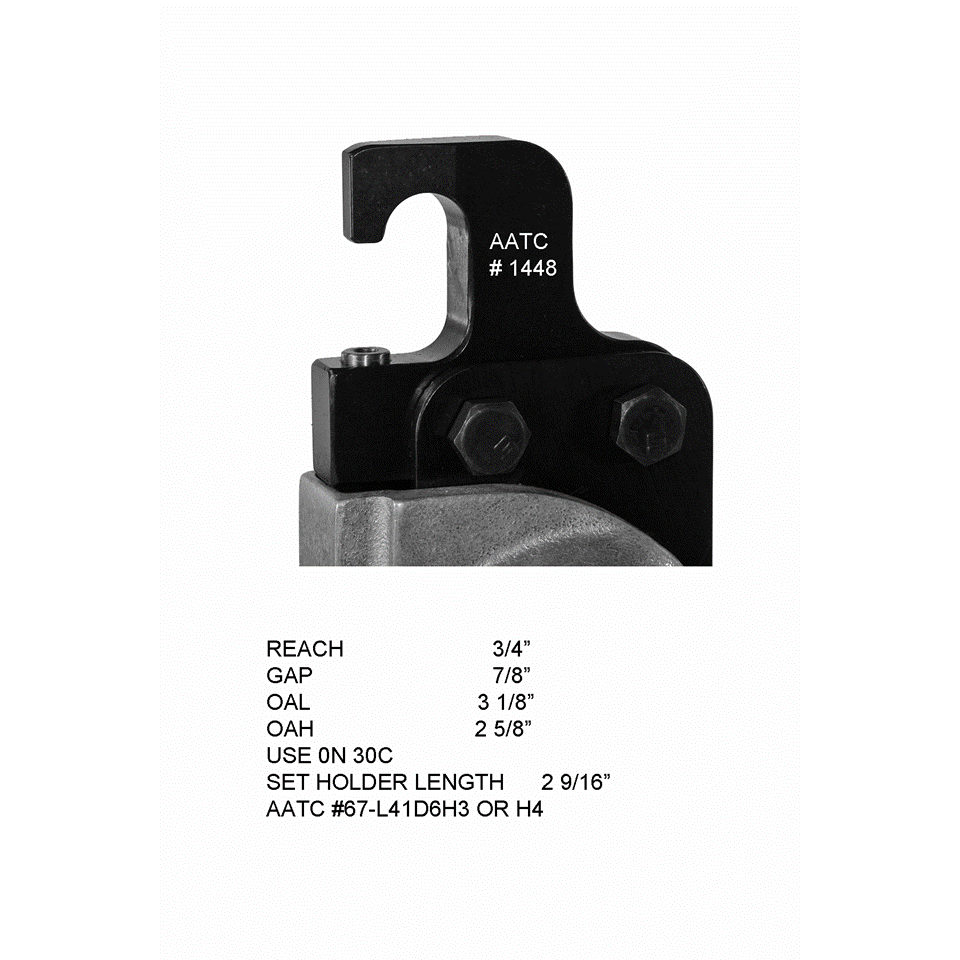

1448



Rated For 30C ONLY
Reach 3/4"
Gap 7/8"



1449



Rated For CP0351 or equiv.
Reach 9 1/8"
Gap



1450



Rated For 30C, 60C
Reach 3"
Gap 1 1/4"

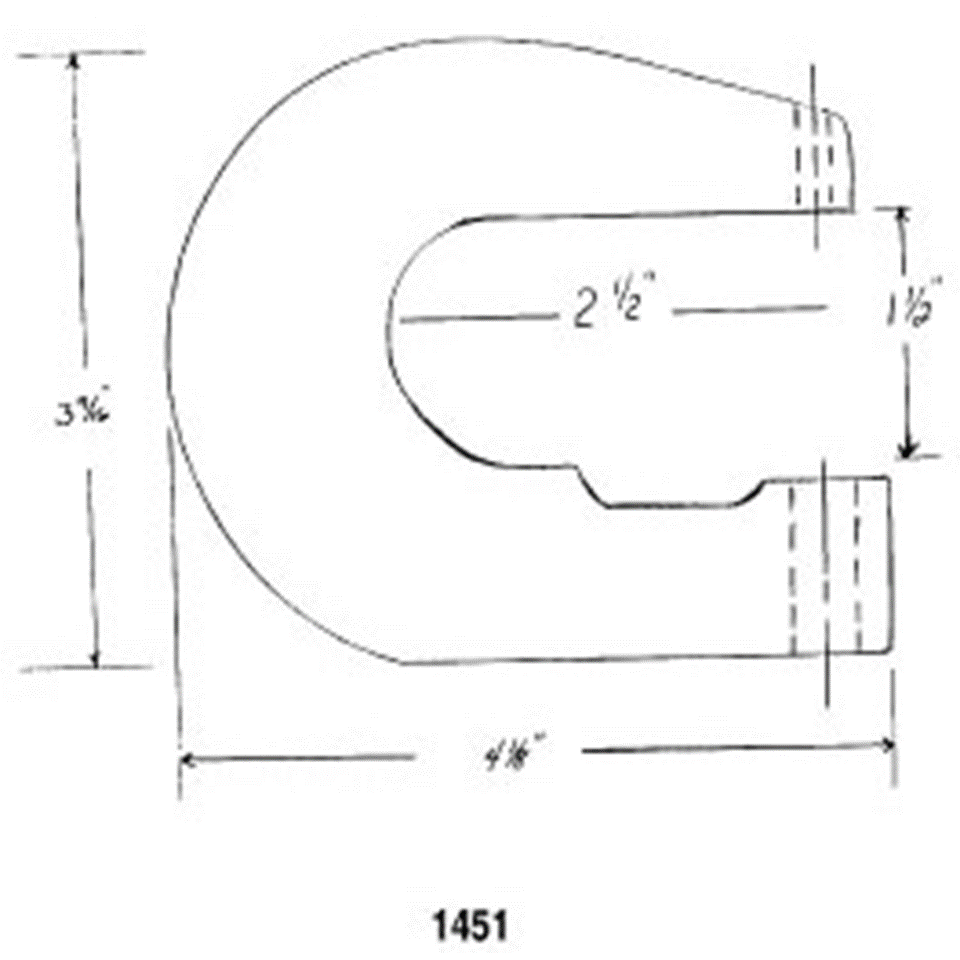

1451



Rated For 30C, 60C
Reach 2 1/2"
Gap 1 1/2"

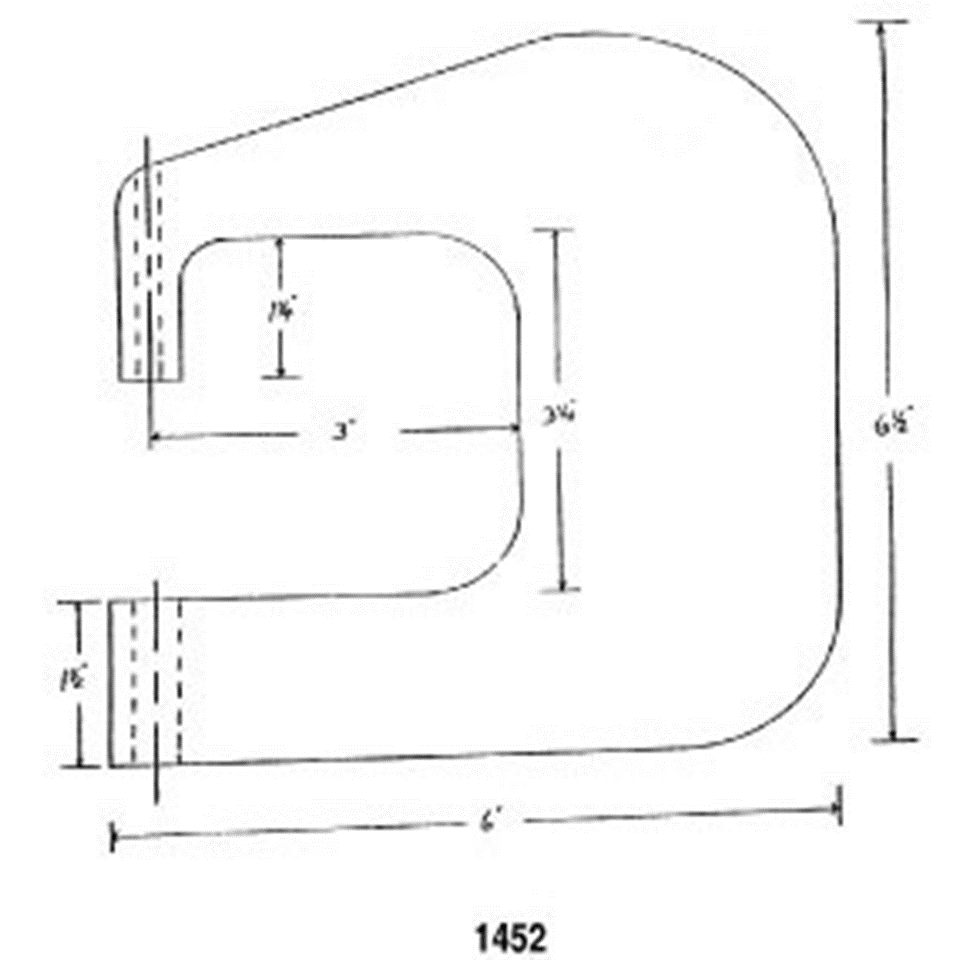

1452



Rated For 30C, 60C
Reach 3"
Gap 2"

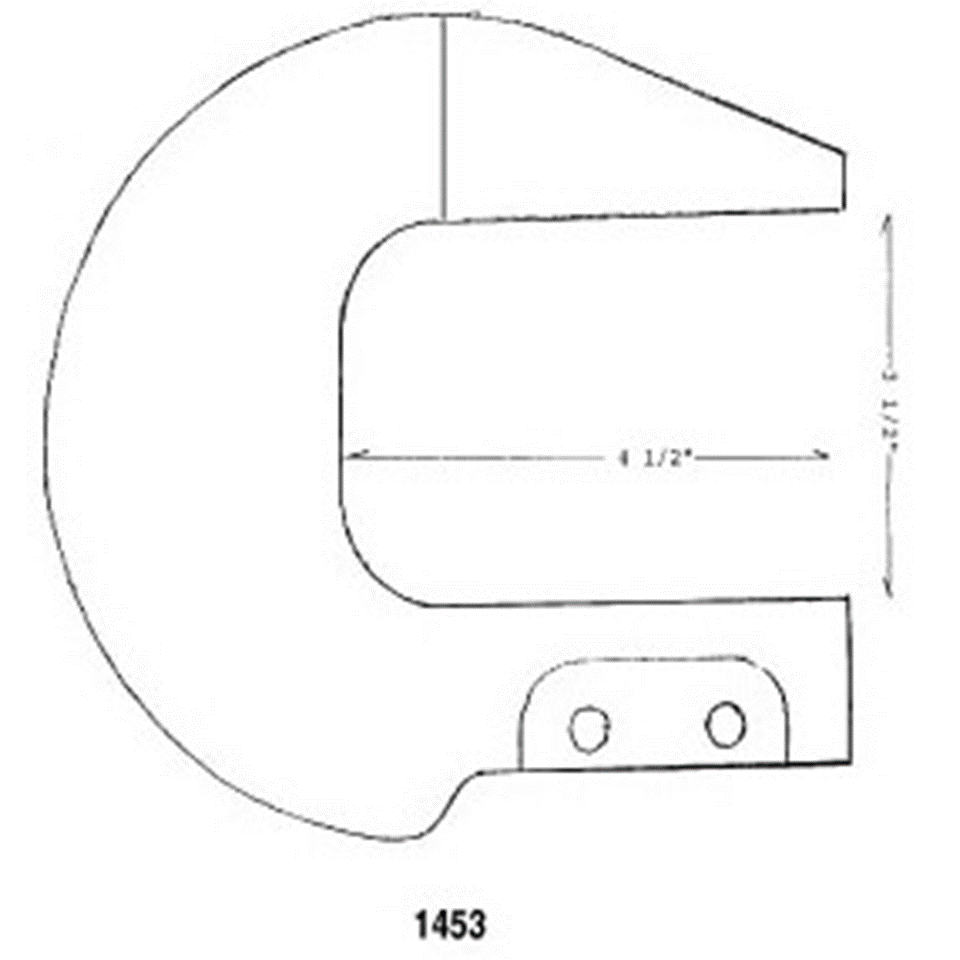

1453



Rated For 30C, 60C
Reach 4 1/2"
Gap 3 1/2"

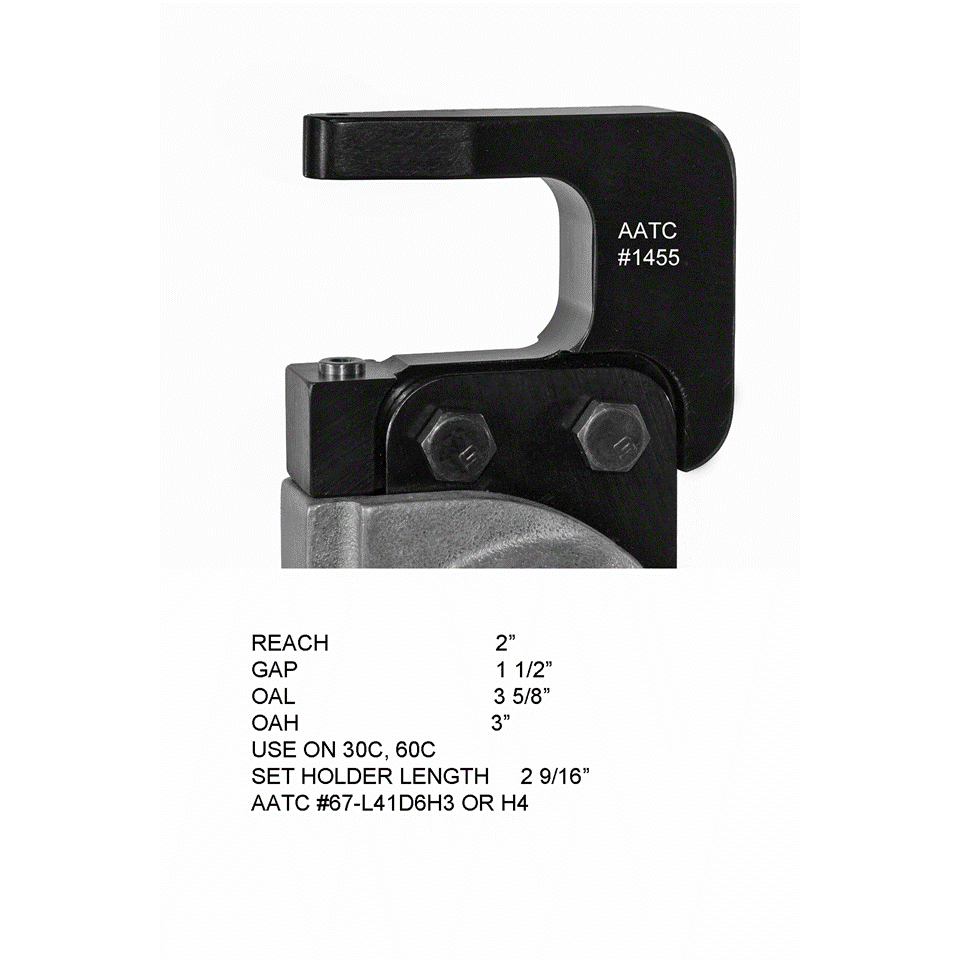

1455



Rated For 30C, 60C
Reach 2"
Gap 1 1/2"



1456



Rated For 30C, 60C
Reach 3 1/2"
Gap

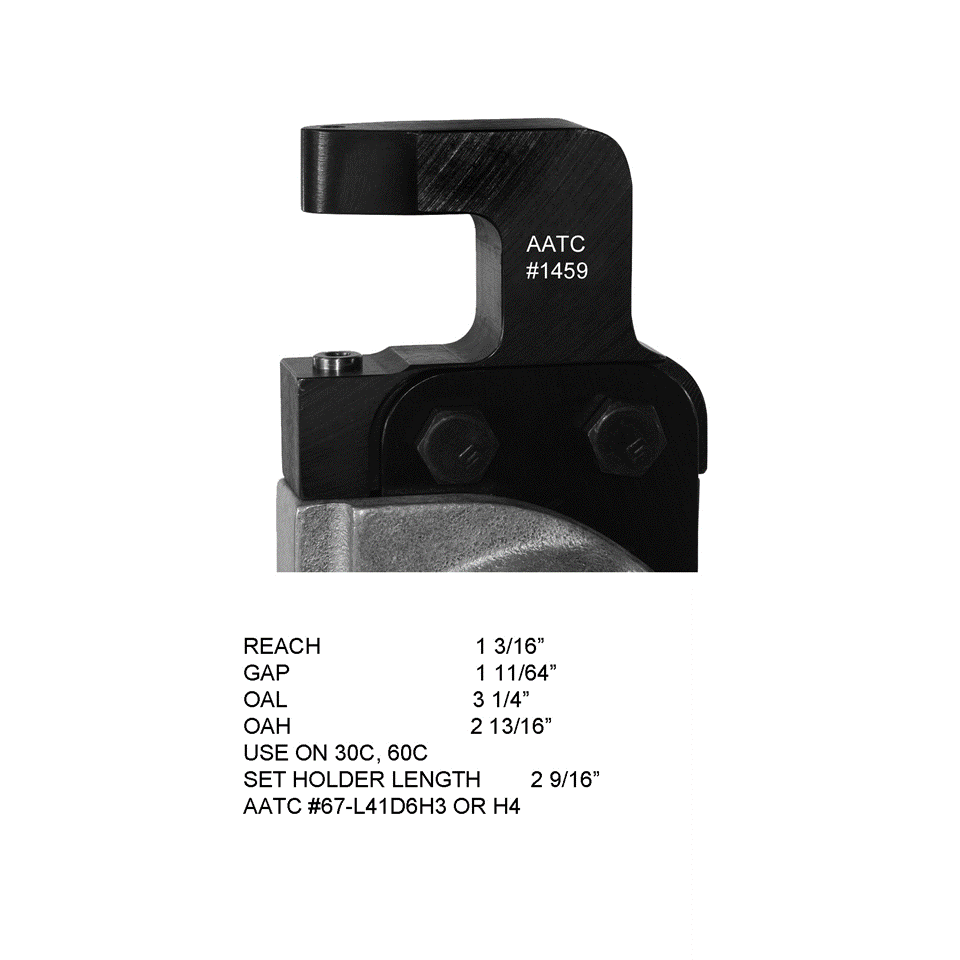

1459



Rated For 30C, 60C
Reach 1 3/16"
Gap  1 1/8"

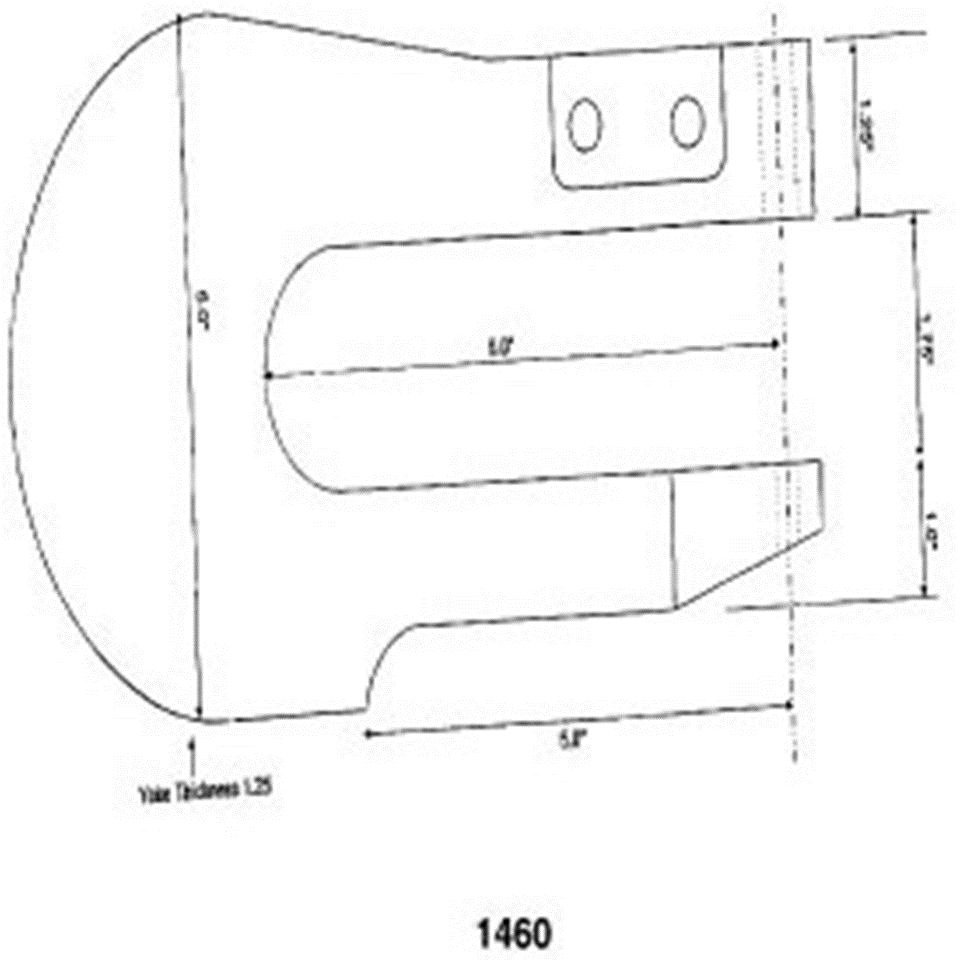

1460



Rated For 30C,60C,90C
Reach 6"
Gap  1 3/4"

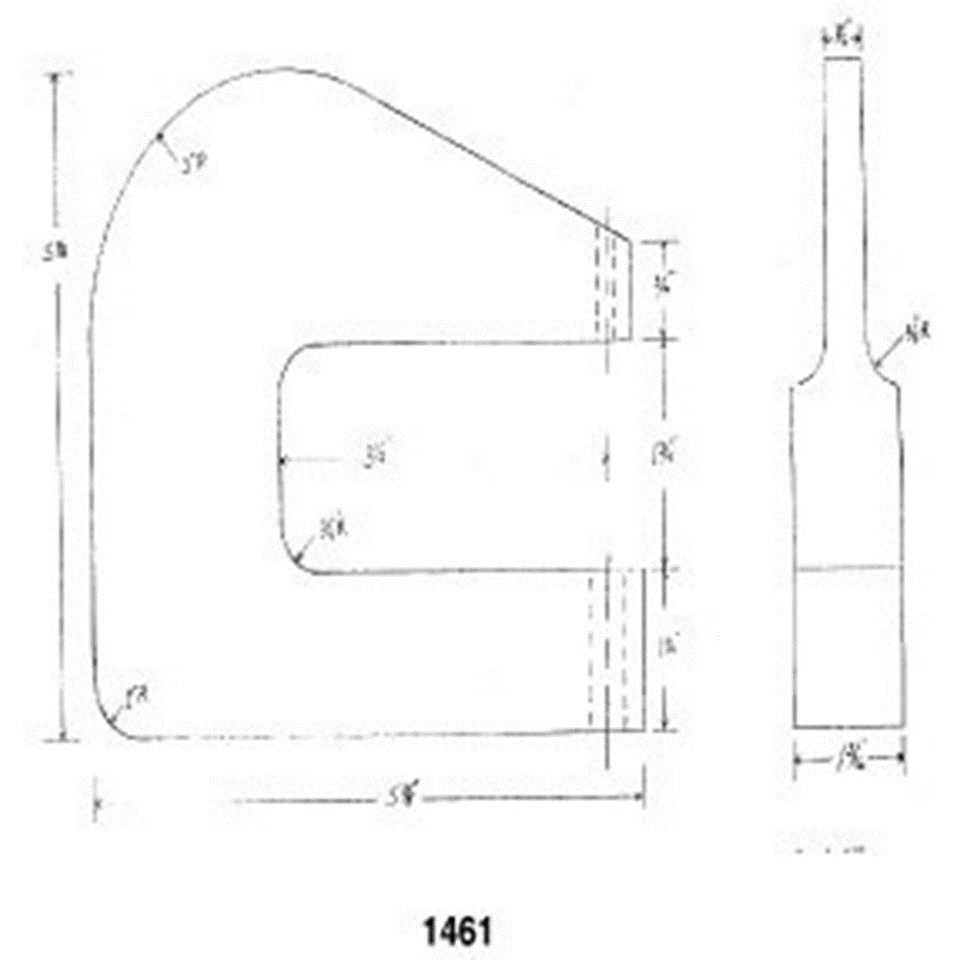

1461



Rated For 30C, 60C
Reach 3 1/2"
Gap  1 3/4"

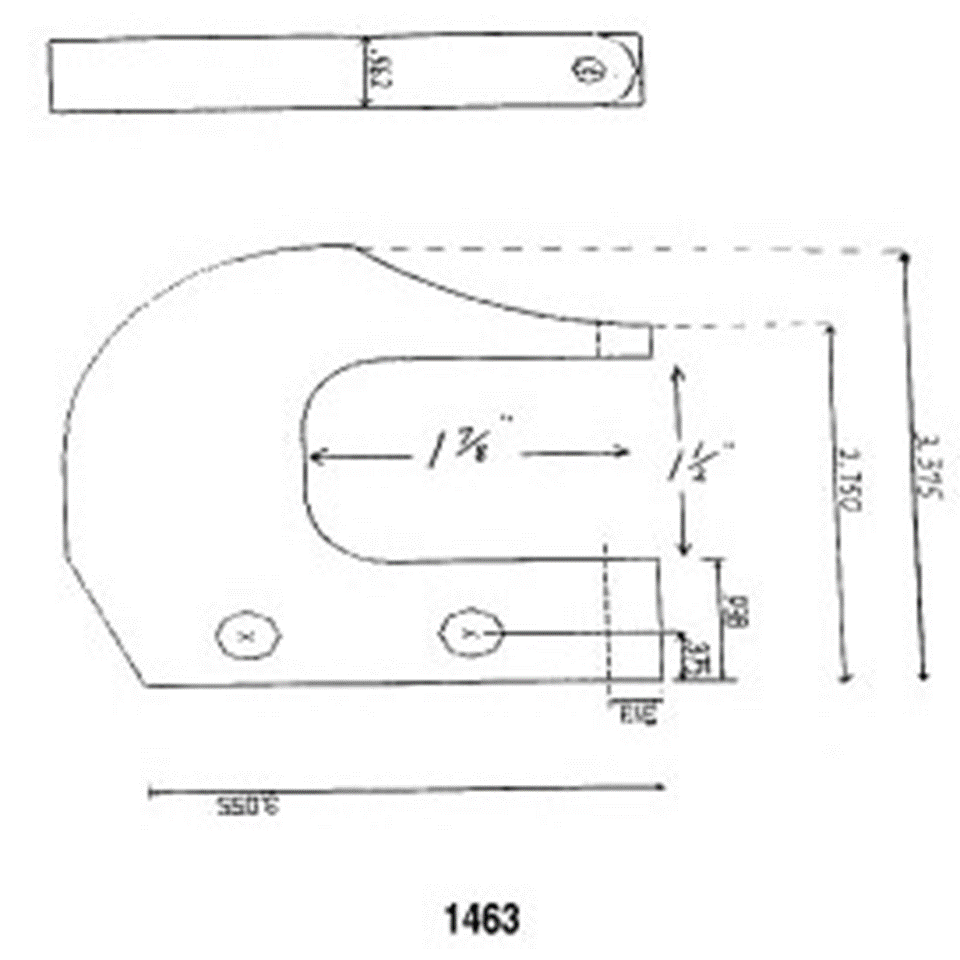

1463



Rated For 30C, 60C
Reach 1 7/8"
Gap 1 1/2"

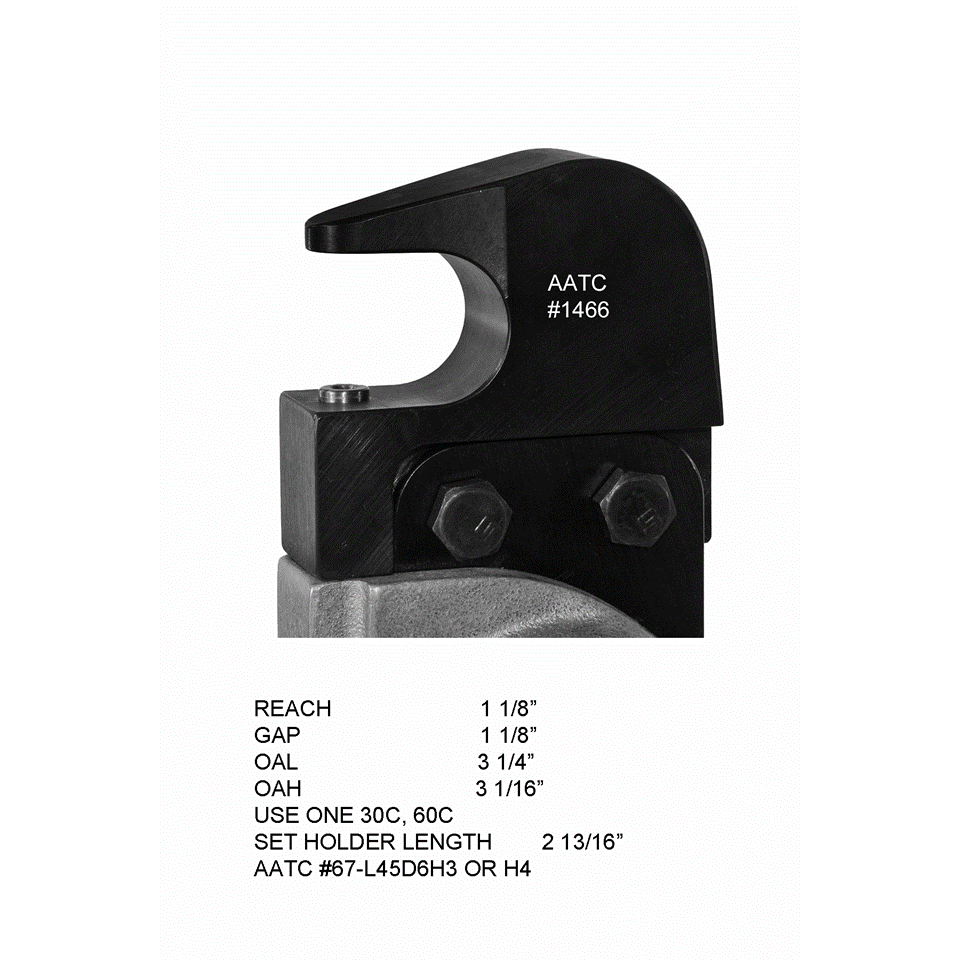

1466



Rated For 30C, 60C
Reach 1 1/8"
Gap 1 1/8"
No Top Set Hole

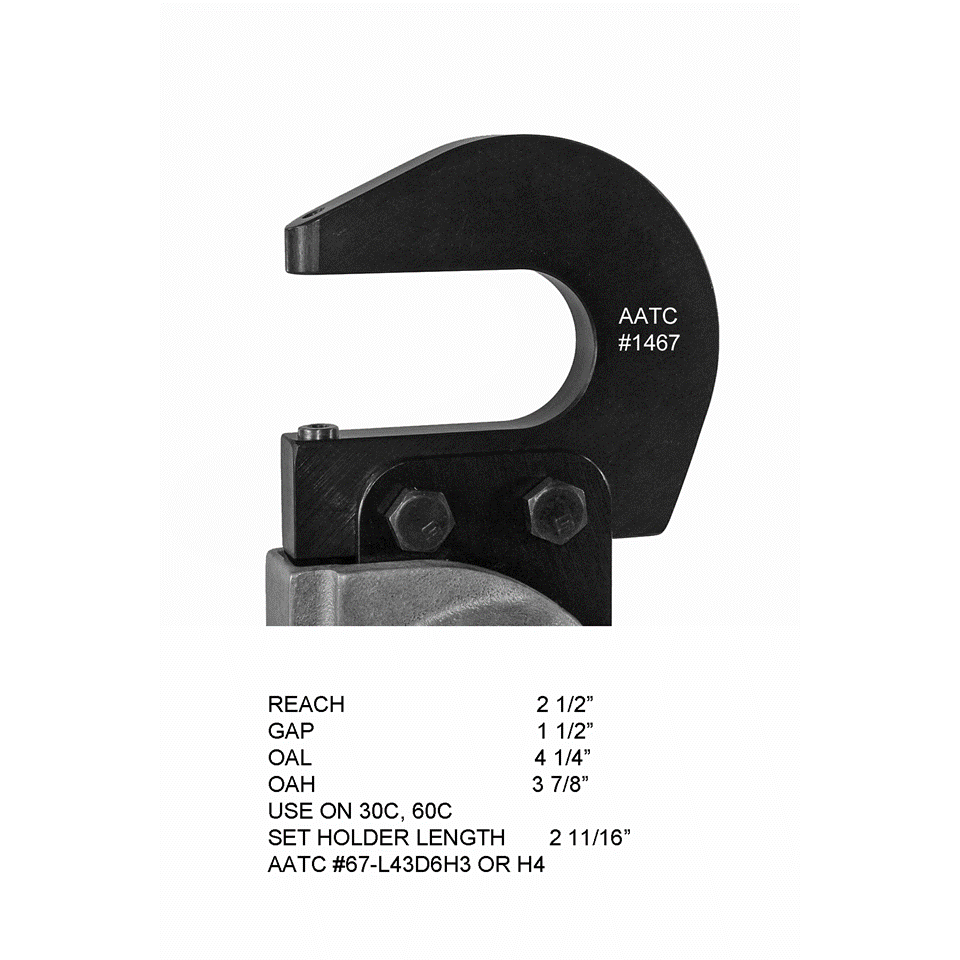

1467



Rated For 30C, 60C
Reach 2 5/8"
Gap 1 1/2"

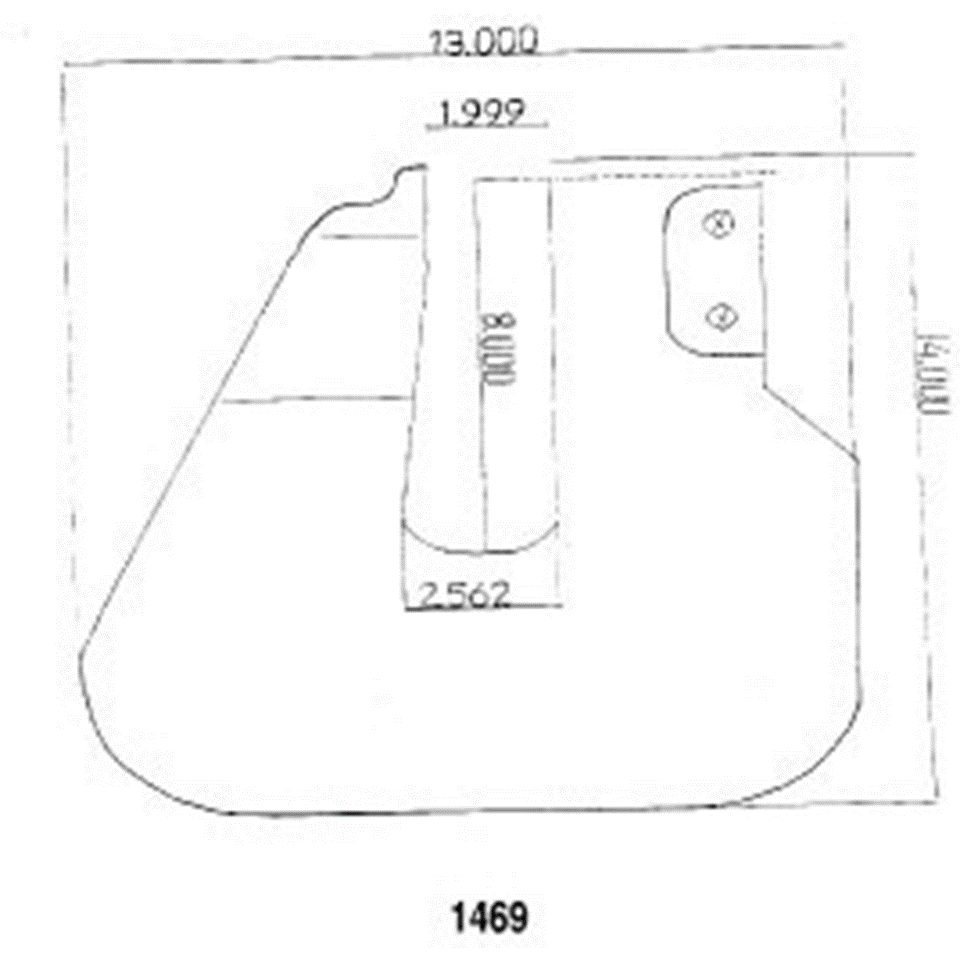

1469



Rated For 444C
Reach 8"
Gap 2"

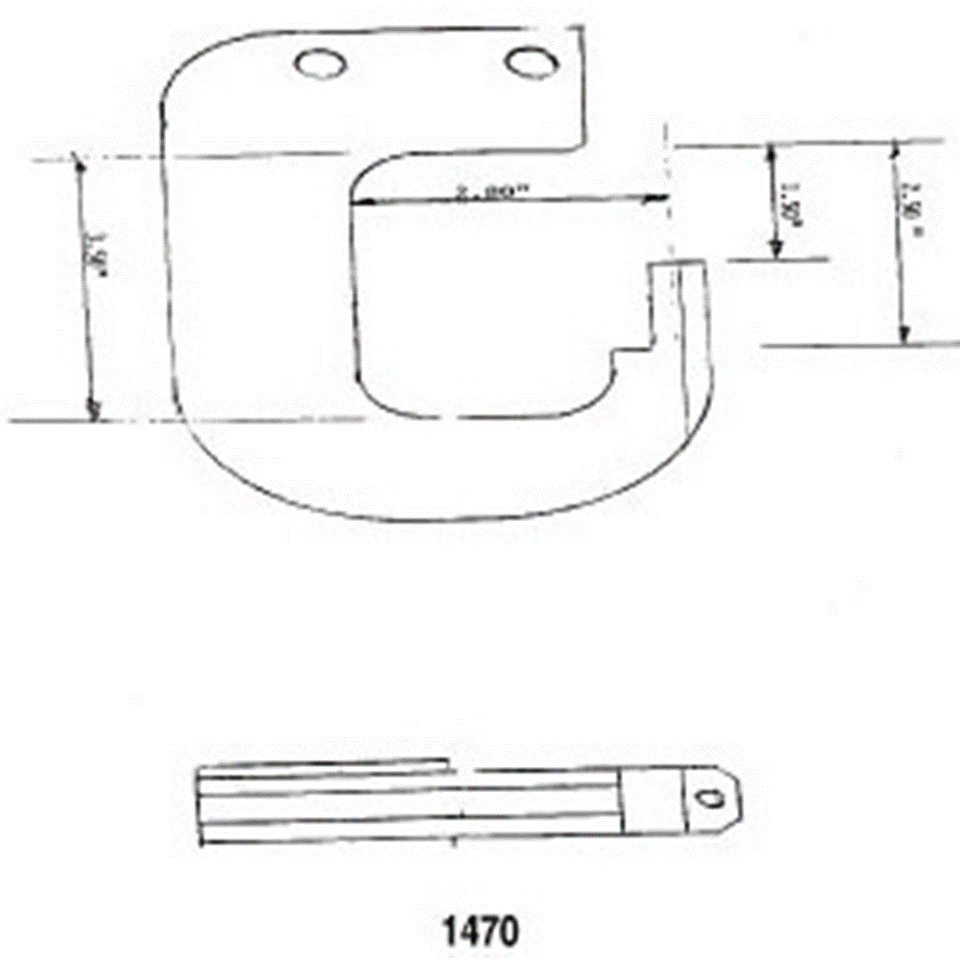

1470



Rated For 351
Reach 2 13/16"
Gap 1 1/2"
Gap Behind Nose 3 1/2"

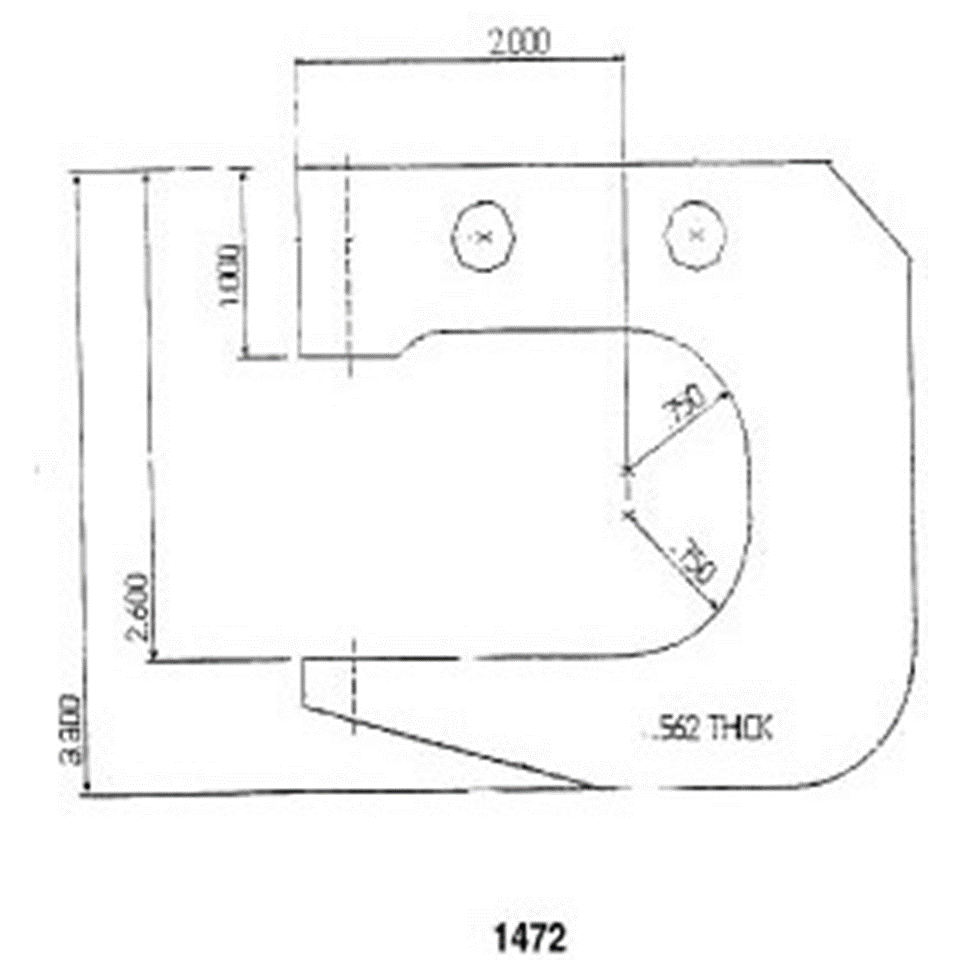

1472



Rated For 30C ONLY
Reach 2 7/16"
Gap 1 5/8"

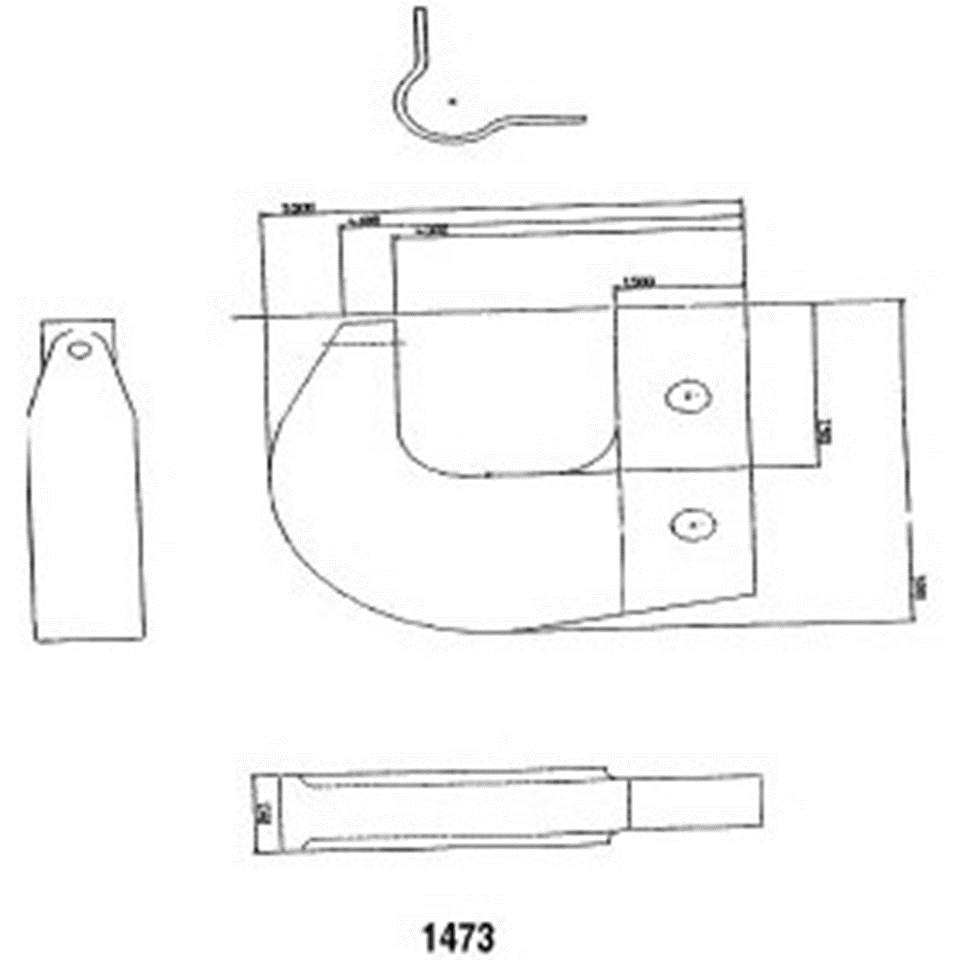

1473



Rated for 444C
Reach 2 1/8"
Gap 2 1/2"

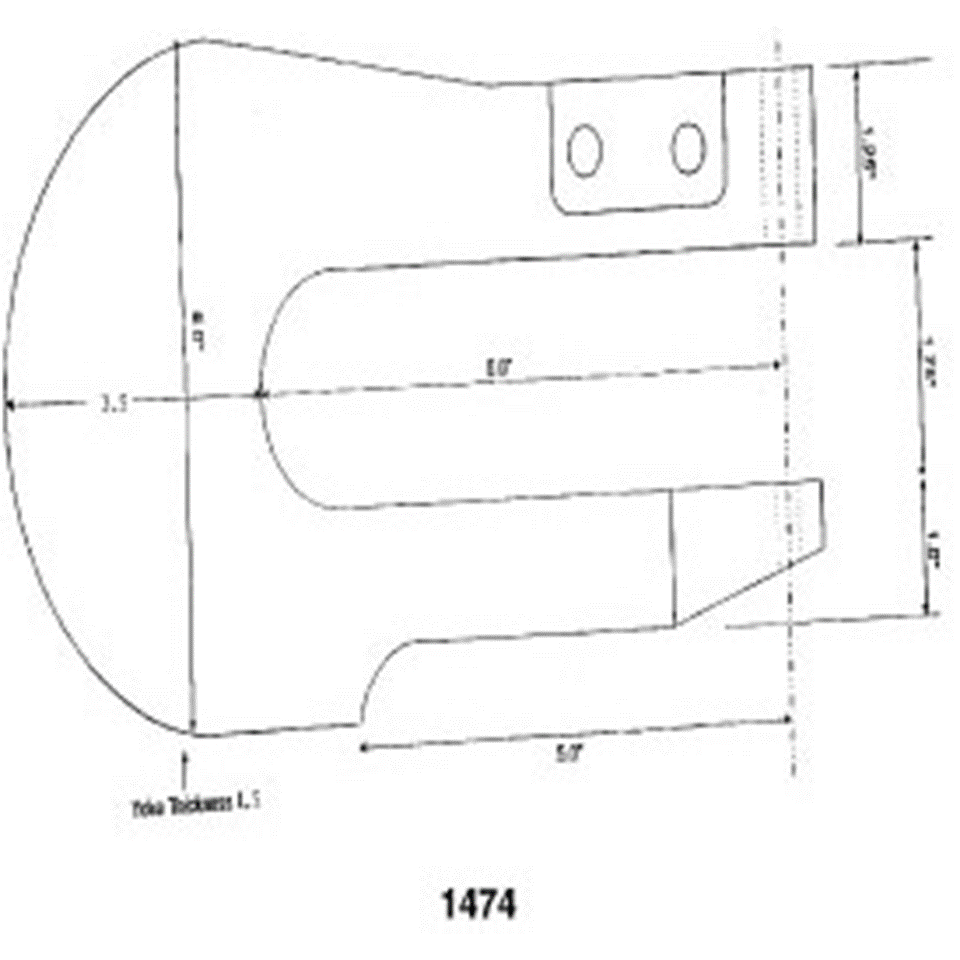

1474



Rated For 30C, 60C, 90C
Reach 6"
Gap 1 3/4"

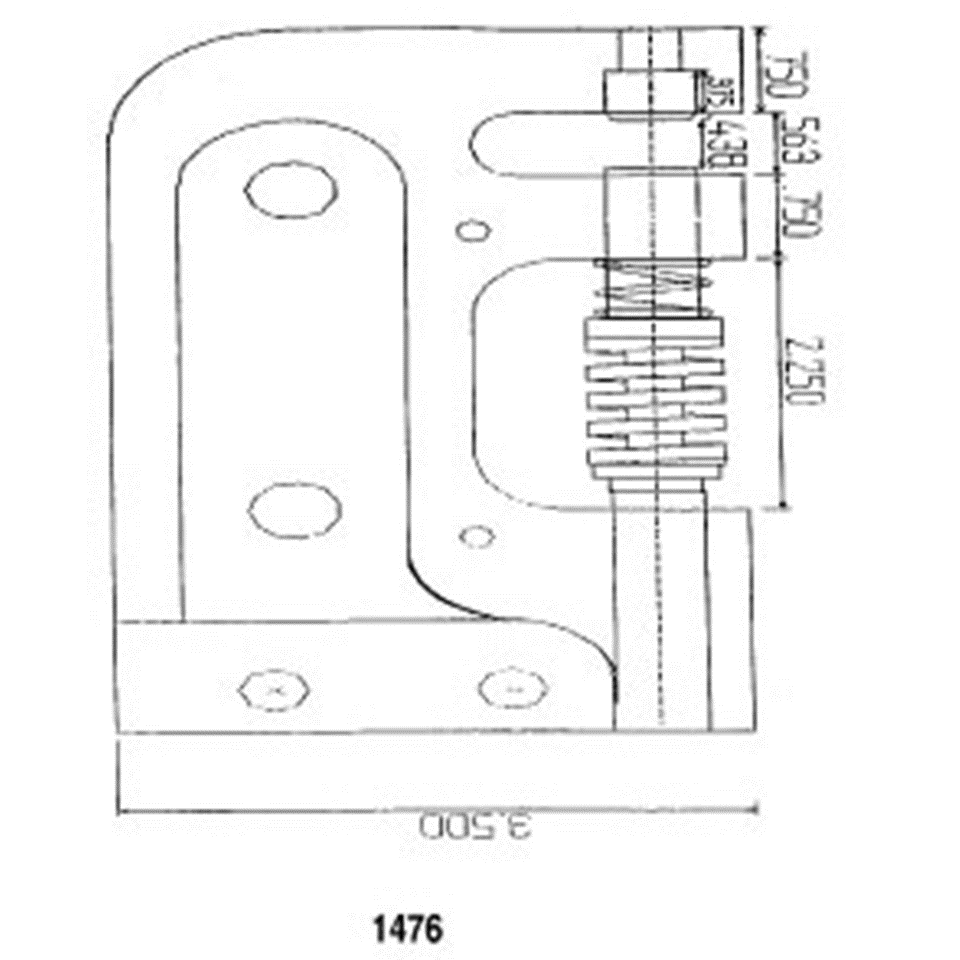

1476



Rated For 30C, 60C, 90C Punch
Reach 3 1/2"
Gap 1 3/4"

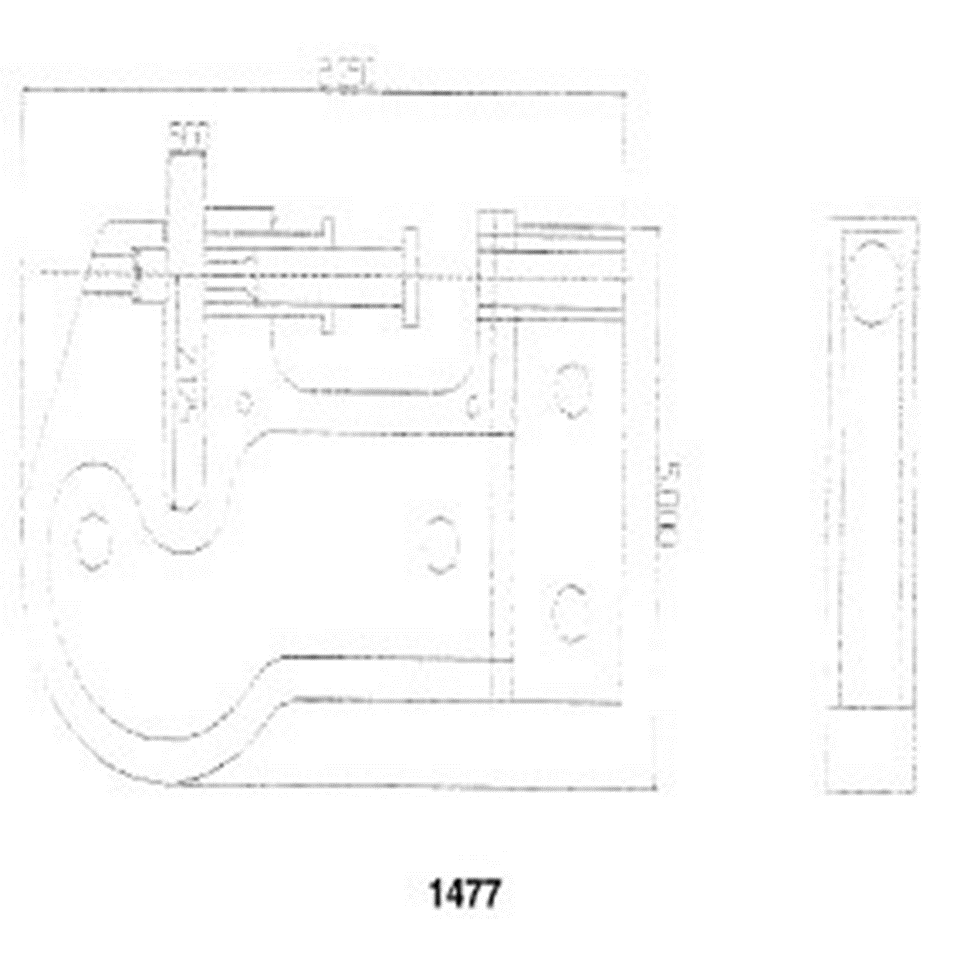

1477



Rated For 444 Punch
Reach
Gap



1478



Rated For 357 Punch
Reach
Gap



1479



Rated For 30C, 60C
Reach 4"
Gap 1 13/16"

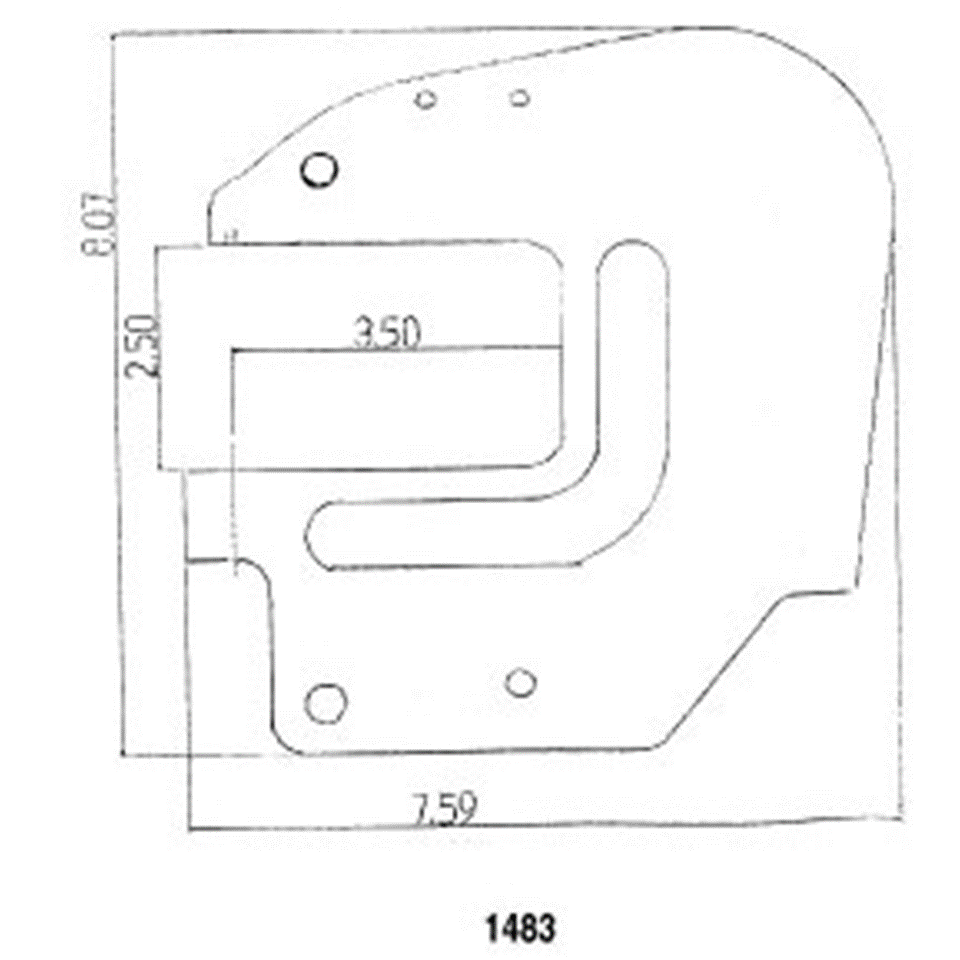

1483



Rated For FITS 355
Reach 3 1/2"
Gap 2 1/2"



1484



Rated For 30C, 60C
Reach 3"
Gap 2"

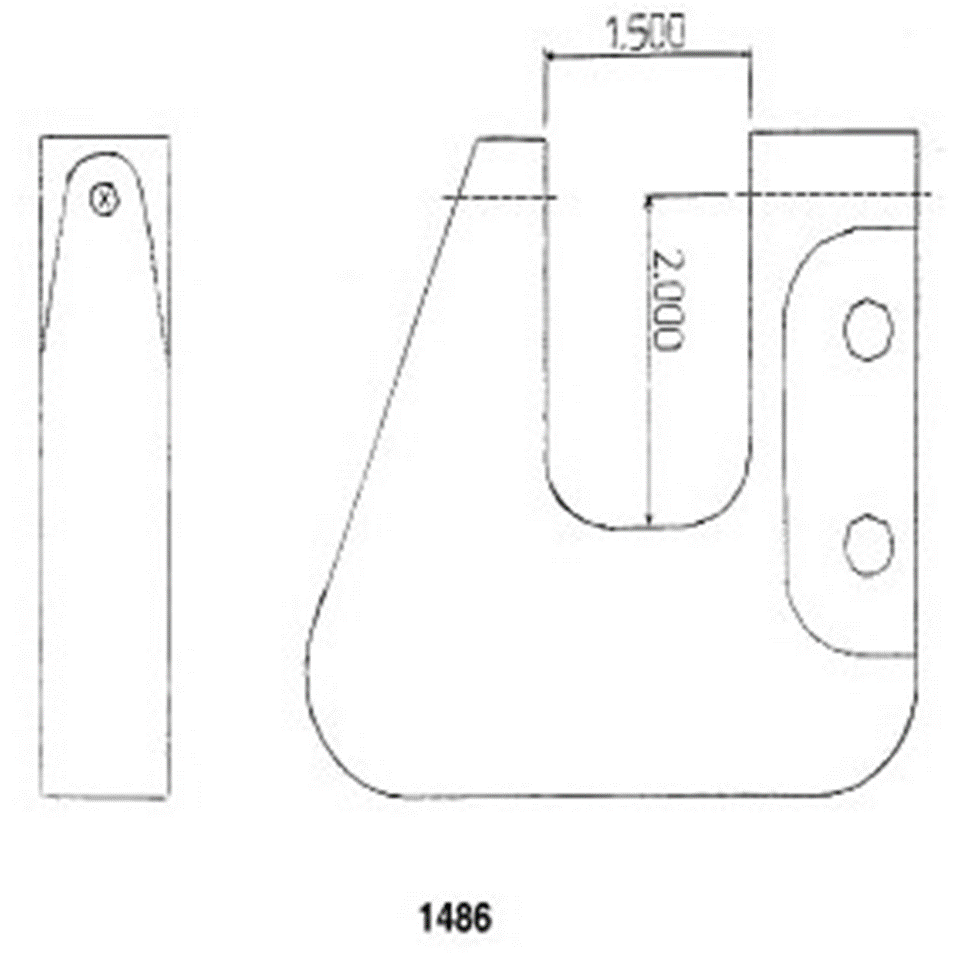

1486



Rated For 60C.90C
Reach 2"
Gap 1 1/2"

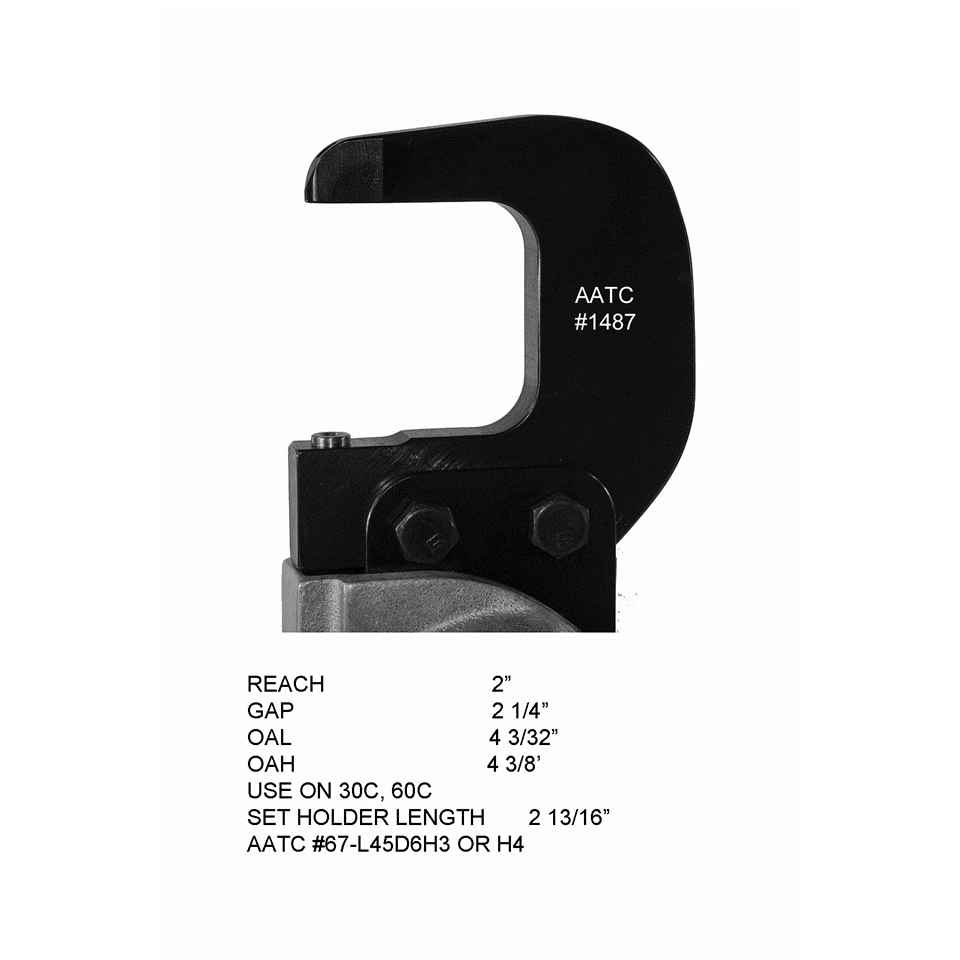

1487



Rated For 30C.60C
Reach 2"
Gap 2 1/4"

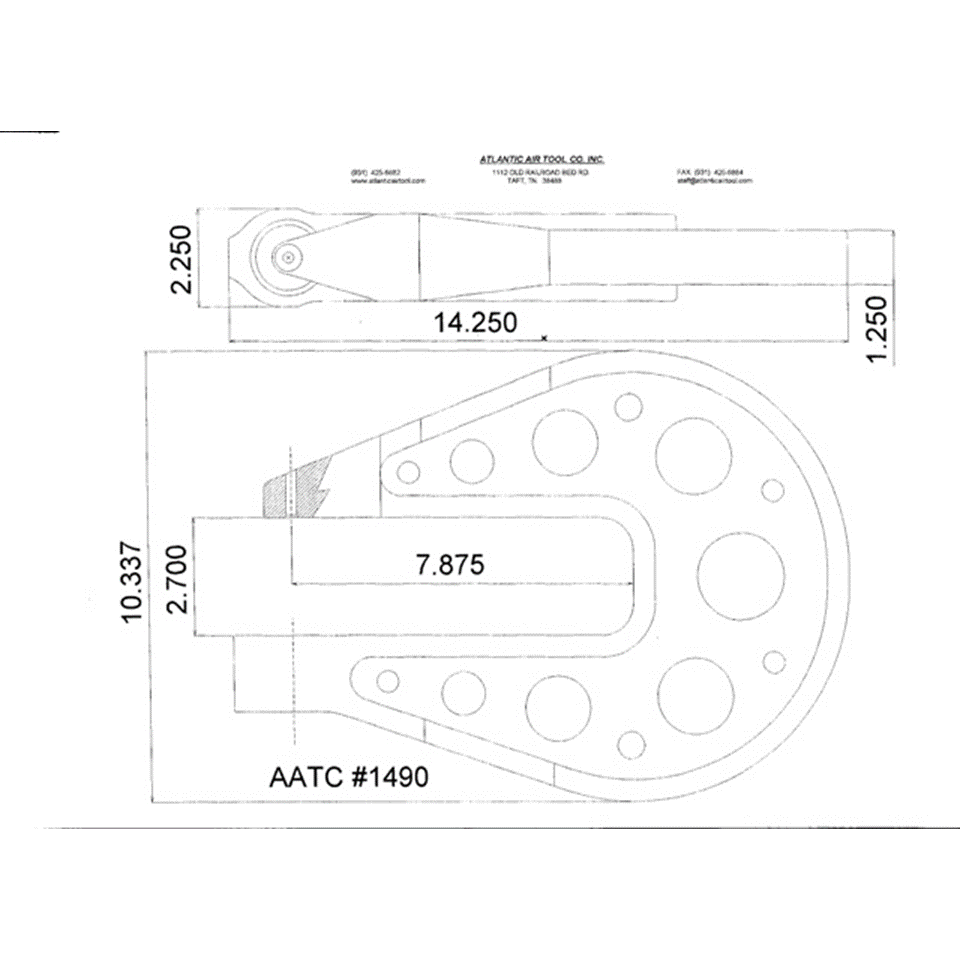

1490



Rated For CP0341
Reach 7 7/8"
Gap 2 3/8"

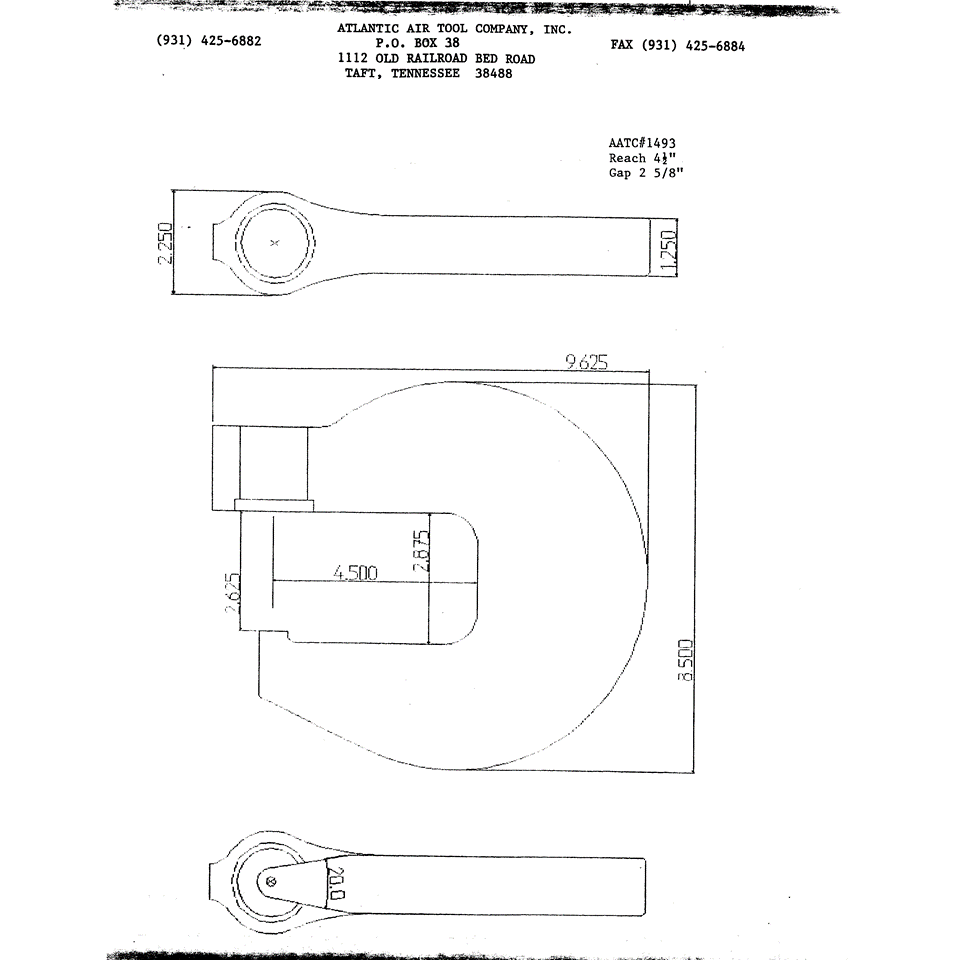

1493



Rated For CP0341
Reach 4 1/2"
Gap 2 5/8"

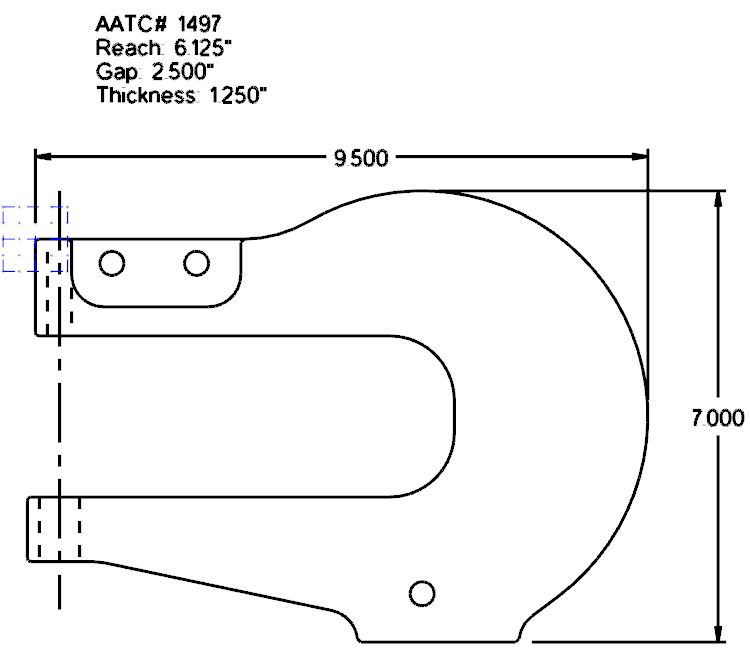

1497



Rated For 30C,60C
Reach 6"
Gap 2 1/2"

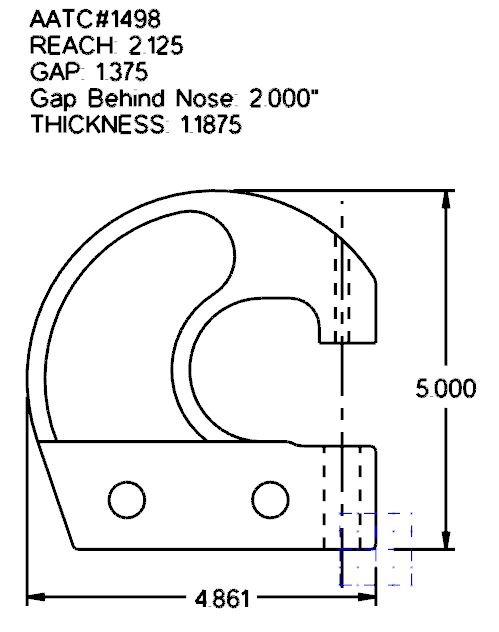

1498



Rated For 444C
Reach 2 1/8"
Gap 1 3/8"
Gap Behind Nose 2"

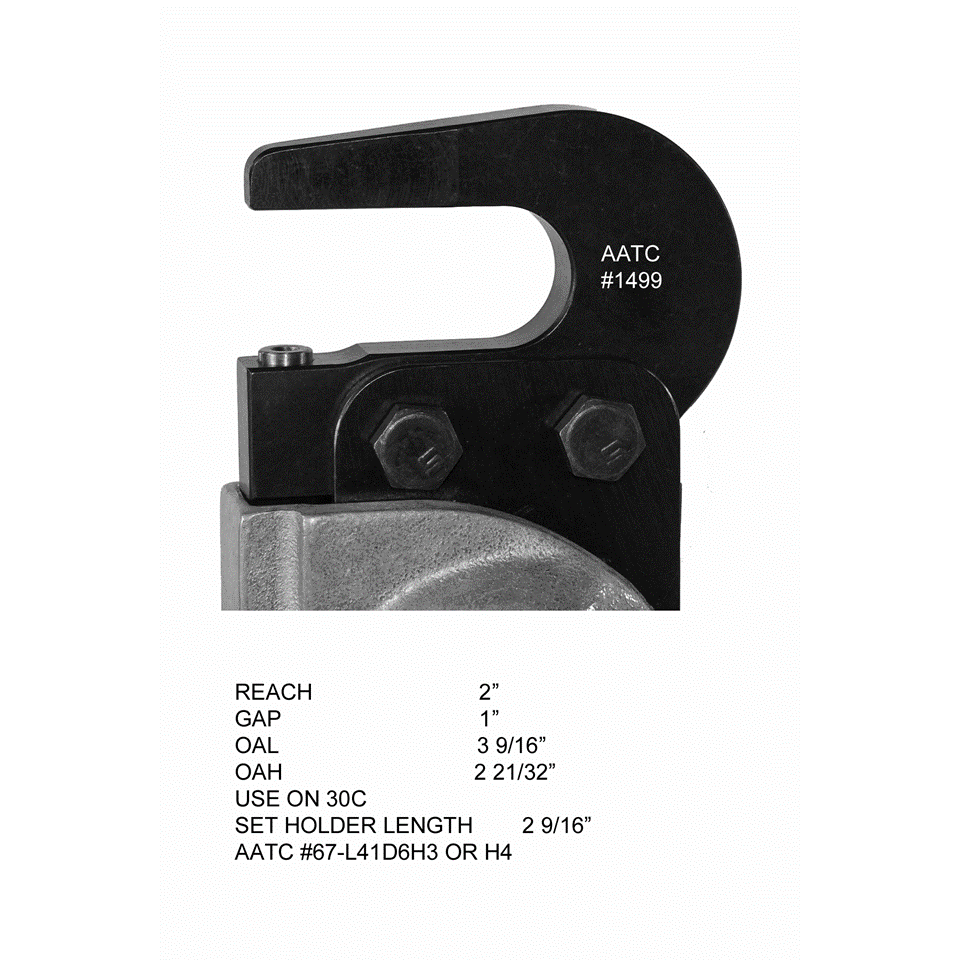

1499



Rated For 30C,60C
Reach 2"
Gap 1"
No Top Set Hole
